Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset X4, X3 -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple-butted 6061 hydroformed aluminium
Suspension Fork
RockShox XC30 TK 29 coil, 100mm travel
Drivetrain
Rear Derailleur
SRAM X4
Front Derailleur
SRAM X3
Shift Levers
SRAM X4
Cassette
SRAM PG-820, 11t-32t, 8-speed
Crank
SRAM S200 3.0, 175mm, 42tx32tx22t
Bottom Bracket
Truvativ Square Taper (BSA)
Chain
KMC, 8-speed
Wheels
Front Hub
SRAM MTH-306 Disc QR
Rear Hub
SRAM MTH-306 Disc QR
Rims
Jalco X320 Disc
Tires
Maxxis Beaver, 29”x2.0”, 60a
Brakes
Brakes
Avid BB5 mechanical disc, 180mm rotors
Cockpit
Stem
Easton EA50, 75mm, 8 degree rise
Handlebar
Vitus alloy flat bar, 730mm wide
Headset
FSA Orbit 1.5B Zero Stack, 1-1/8”
Seat
Saddle
Vitus
Seatpost
Vitus alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 638 mm | 656 mm | 675 mm | 694 mm |
| Top Tube Length | 581.5 mm | 598.3 mm | 617.3 mm | 636.4 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 438 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1065 mm | 1082 mm | 1101 mm | 1121 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

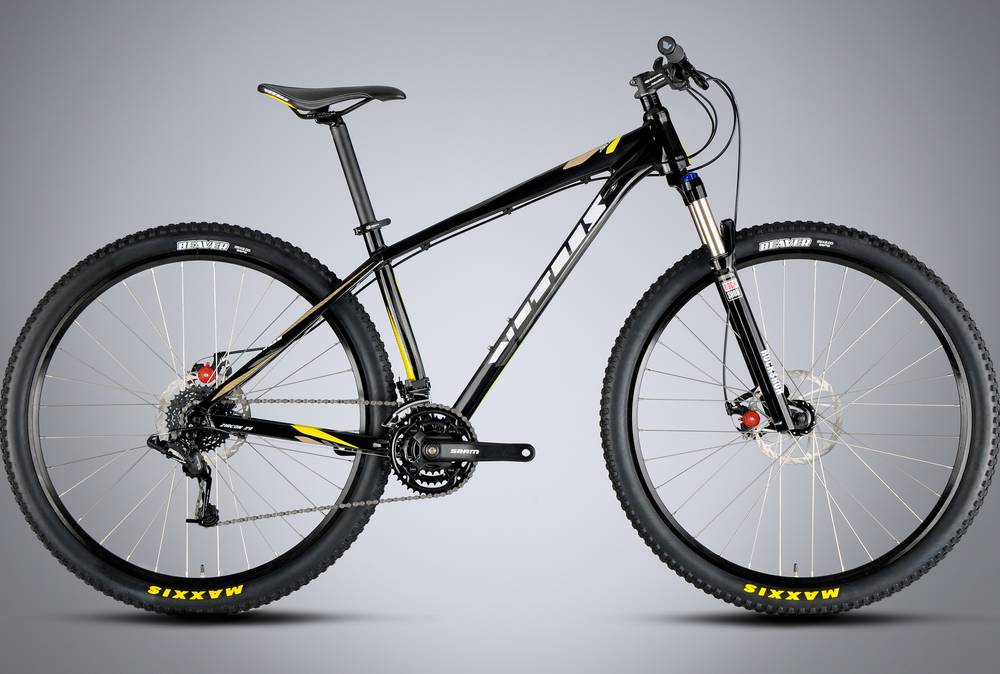

Zircon 29 2013 completes the Vitus Zircon model. Vitus released 9 bikes variations of this model so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.3 kg (29.32 lbs), the Zircon 29 2013 model is a bit heavier than average. In other words, this model is 7.26% heavier than the average Crosscountry bike.
Zircon 29 2013 components
Fork
The Zircon 29 2013 comes factory-installed with the RockShox fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Zircon 29 2013 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Vitus Zircon 29 2013 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
