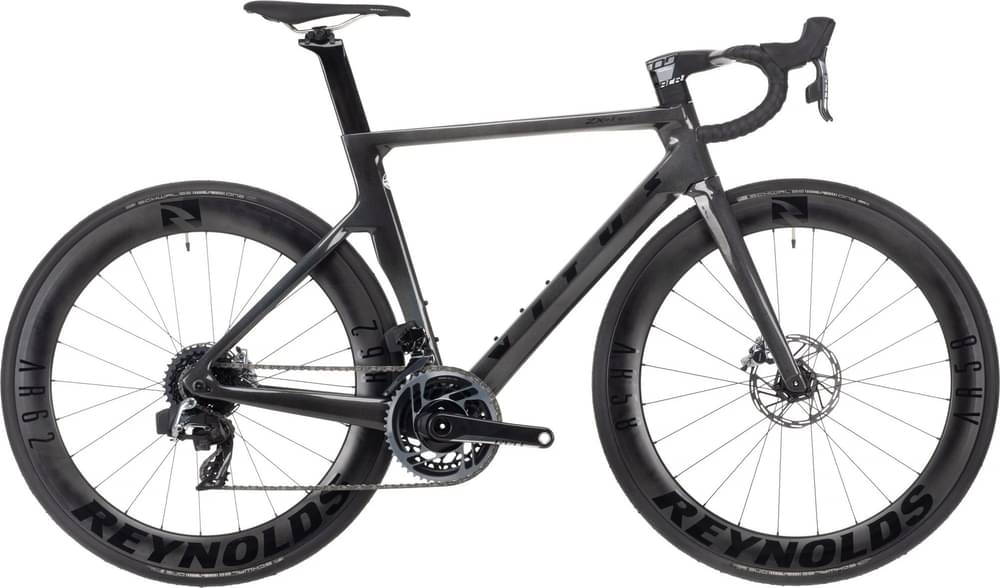

Vitus ZX 1 EVO CRX eTap AXS 2021
2021 Road
Estimate price |
7,225$
Weight | 7.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount
Suspension Fork
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific
Drivetrain
Rear Derailleur
SRAM RED eTap AXS, 12 Speed, Short Cage,
Front Derailleur
SRAM RED eTap AXS, N/A
Shift Levers
SRAM RED eTap AXS 12 Speed
Cassette
SRAM XG 1270 D1, 10-33T
Crank
SRAM RED D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
SRAM DUB 386, DUB For BB386EVO
Chain
SRAM FORCE D1 12 Speed
Wheels
Front Hub
N/A N/A
Rear Hub
N/A, N/A
Rims
N/A N/A
Spokes
N/A N/A
Tires
Schwalbe ONE Performance, 700c x 25, Tubeless Ready TLE, Race Guard
Brakes
Brakes
SRAM RED eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Disk Rotors
SRAM Paceline, Front:160mm, Rear:140mm
Cockpit
Stem
Vision Metron 5D ACR Integrated Bar Bore 31.8mm, - 6 degrees, XS:100mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm
Handlebar
Vision Metron 5D ACR Integrated UD Carbon, 75mm Reach, 125mm Drop, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm, Inc Computer Mount
Grips
VITUS SuperGrip Anti Slip
Headset
FSA/Vitus ACR Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover
Seat
Saddle
VITUS Race Performance CRN-Ti Rail, Pressure Relief Channel
Seatpost
ZX-1 EVO Aero +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 590 mm | 591 mm | 599.9 mm | 611 mm | 623 mm |
| Rake | 51 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 55 mm | 53 mm | 52 mm |
| Stack | 502 mm | 524 mm | 545 mm | 564 mm | 580 mm | 597 mm |
| Reach | 374 mm | 383 mm | 389 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 522 mm | 539 mm | 553 mm | 568 mm | 583 mm | 594 mm |
| Seat Tube Angle | 73.6 ° | 73.5 ° | 73.4 ° | 73.3 ° | 73.2 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.9 ° | 71.6 ° | 72.4 ° | 72.9 ° | 73.2 ° | 73.5 ° |
| Head Tube Length | 89.5 mm | 112.3 mm | 129.6 mm | 147.8 mm | 164.5 mm | 181 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 992 mm | 993 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 776 mm | 796 mm | 817 mm | 833 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
ZX 1 EVO CRX eTap AXS is a Vitus Zx model. Vitus released 14 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Vitus ZX 1 EVO CR 2021 has a starting price of 3405$. Vitus ZX 1 EVO CRX eTap AXS 2021 on the other hand is the most expensive at 6567$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2021 and its price was 6567$. In conclusion, this bike price is 55.95% higher than the price of the average Aero bike.
Aero bikes average weight
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
ZX 1 EVO CRX eTap AXS weighs 7.9 kg (17.42 lbs) and is a bit heavier than the average. To sum up, it’s 7.63% heavier than the average weight of Aero bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the ZX 1 EVO CRX eTap AXS bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Vitus ZX 1 EVO CRX eTap AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Vitus ZX 1 EVO CRX eTap AXS bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
