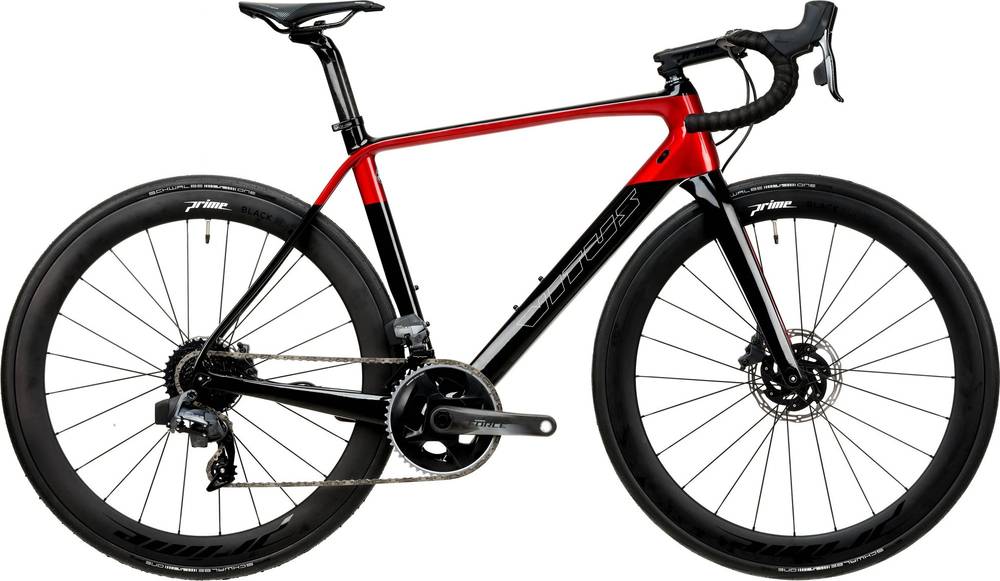

Vitus ZX-1 Team 2020
2020 Road
Estimate price |
4,950$
Weight | 8.31 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 167cm
SM
164cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
XXL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 Disc, UD Carbon T700, "Internal cable routing, Flat Mount braking, BB386 EVO BB Shell, 142 x 12 "
Suspension Fork
Integrated UD carbon, Full carbon tapered steerer, 100 x 12mm
Drivetrain
Rear Derailleur
SRAM Force eTap AXS D1, RD, 12 Spd, with Battery
Front Derailleur
SRAM Force eTap AXS D1, FD, Braze-On, with Battery
Shift Levers
SRAM Force eTap AXS Hydraulic 12 speed
Cassette
SRAM 10-33T, CS XG 1270 D1, 12 Spd
Crank
SRAM Force Carbon - 48/36t, FC-FRC-D1 12Spd, DUB compatable, Crank lengths - XS:170mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
SRAM DUB, 386 EVO
Chain
SRAM Force D1 12 Spd
Wheels
Front Hub
PRIME CentreLock, F-100 x 12mm
Rear Hub
PRIME, XD-R Freehub, CentreLock, R- 142 x 12mm
Rims
PRIME Black Edition 50 Carbon Disc Tubeless Tubeless tape installed, Tubeless valves supplied
Spokes
Prime .
Tires
Schwalbe ONE Performance TLE, 700c x 25, ADDIX, RaceGuard, MicroSkin Tubeless Easy
Brakes
Brakes
SRAM Force eTap AXS D1 Hydraulic, Flat Mount, 160mm Rotor
Cockpit
Stem
Prime Doyene Aluminium AL6061 3D Forged & CNC Machined, bar bore 31.8mm, +/- 5 degrees, XS:90mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm
Handlebar
Prime Primavera Aluminium 125mm drop x 78mm reach, XS:400mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm
Grips
VITUS EVA Cork
Headset
Ritchey Comp Tapered 1 1/8"- 1 1/2", upper bearing 42 / 28.6, lower bearing 52 / 40
Seat
Saddle
Prologo Dimension T4.0, Microfibre cover, 143mm width
Seatpost
VITUS ZX-1 Aero Length XS:330mm S:330mm M:330mm L:400mm XL:400mm XXL:400mm, 20mm offset, 6-8 Nm clamp force
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.43 mm | 1.42 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 267 mm | 269 mm | 269 mm |
| Front Center | 568.8 mm | 573.2 mm | 580 mm | 590.9 mm | 608.2 mm | 619.5 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 61 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 508 mm | 526 mm | 539.5 mm | 548.5 mm | 561 mm | 579.5 mm |
| Reach | 362 mm | 369.9 mm | 377 mm | 385 mm | 398 mm | 404 mm |
| Top Tube Length | 507 mm | 523 mm | 539 mm | 555 mm | 572 mm | 589 mm |
| Seat Tube Angle | 74.3 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 525 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 959 mm | 964 mm | 971 mm | 983 mm | 1001 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 69 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 167 cm | 172 cm | 177 cm | 182 cm | 187 cm | 193 cm |
Model Overview
ZX-1 Team completes the Vitus Zx 1 model. Vitus launched 20 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Vitus ZX-1 CR 2020 is the cheapest bike model and costs 2675$. Vitus ZX-1 CRX eTap AXS 2020 is the most expensive one and costs 6324$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Vitus released this model in 2020, its price was 4499$. If we compare this with the average Aero bike cost we notice that the price is 6.84% higher.
Average weight for Aero bikes
Aero bikes weigh an average of 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, ZX-1 Team has a weight of 8.31 kg (18.32 lbs). In conclusion, the average Aero bike weighs 13.22% less than ZX-1 Team.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
ZX-1 Team has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the ZX-1 Team bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ZX-1 Team has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
