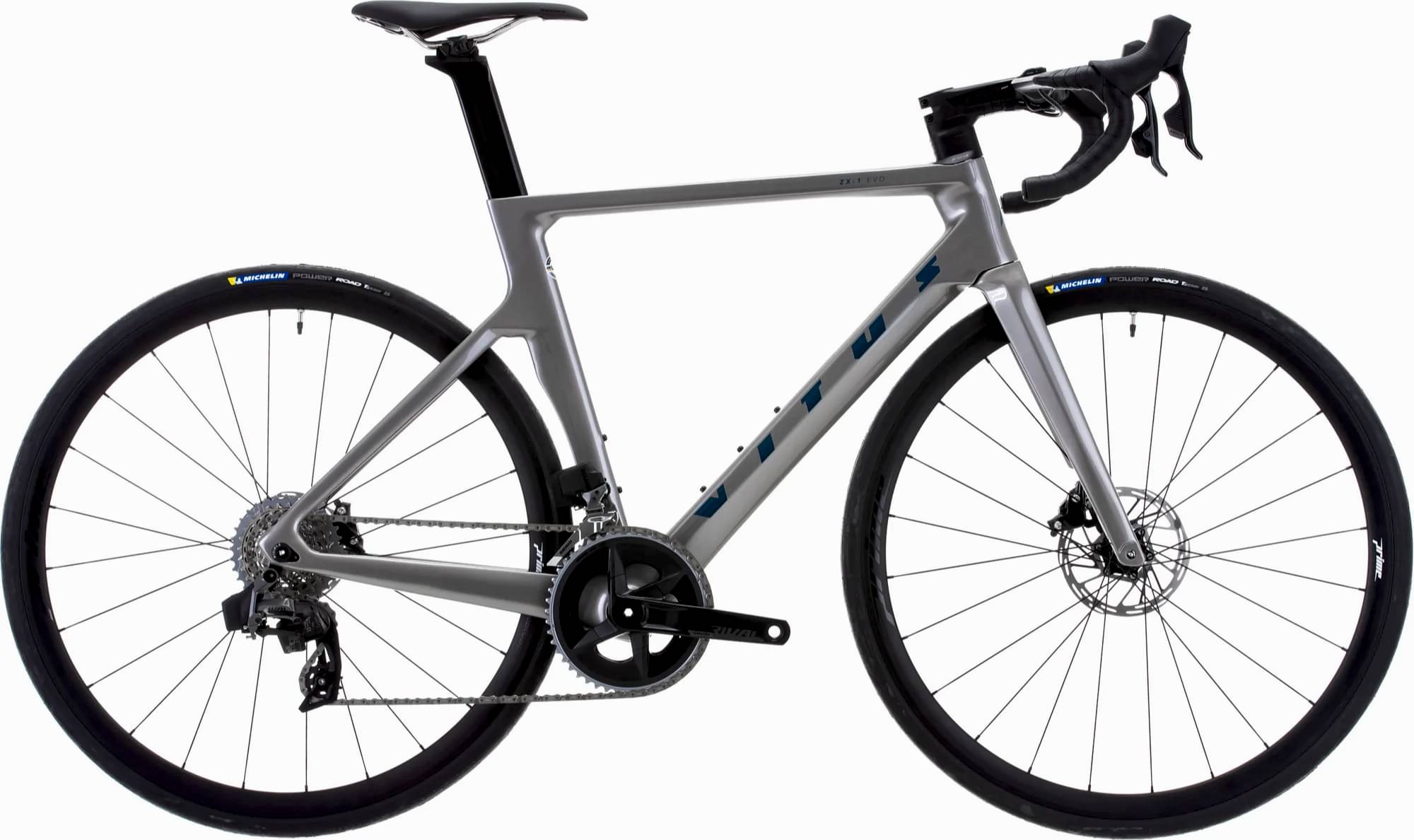

Vitus ZX1 EVO CR eTap AXS Rival 2022
2022 Road
Estimate price |
5,218$
Weight | 8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, 12 Speed, Short Cage
Front Derailleur
SRAM Rival eTap AXS, 2x12 Speed, Braze-On
Shift Levers
SRAM Rival eTap AXS, 12 Speed
Cassette
SRAM XG 1290 D1, 10-33T
Crank
SRAM Rival D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
SRAM DUB BB386, DUB for BB386EVO
Chain
SRAM Rival D1, 12-Speed
Wheels
Front Hub
Prime RD010, 100 x 12mm, Centre Lock
Rear Hub
Prime RD010, 142 x 12mm, Centre Lock, XD-R Freehub with Anti Bite Guard
Rims
Prime Attaquer, Aluminium, Tubeless Ready, Disc Brake, Rim Depth: 30mm, Inner Rim Width: 19mm, Outer Rim Width: 22mm
Tires
Front: Michelin Power Road TLR, 700c x 25c, Tubeless Ready, Rear: Michelin Power Road TLR, 700c x 25c, Tubeless Ready
Brakes
Brakes
SRAM Rival eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Cockpit
Stem
FSA ST-OS-185 Integrated, Bar Bore 31.8mm, - 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Handlebar
Prime Primavera Carbon Aero, UD Carbon, Rise: 78mm, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Grips
Vitus Super Grip, Anti Slip
Headset
FSA/Vitus ACR, Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover
Seat
Saddle
Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seatpost
ZX-1 EVO Aero, +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 590 mm | 591 mm | 599.9 mm | 611 mm | 623 mm |
| Rake | 51 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 55 mm | 53 mm | 52 mm |
| Stack | 502 mm | 524 mm | 545 mm | 564 mm | 580 mm | 597 mm |
| Reach | 374 mm | 383 mm | 389 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 522 mm | 539 mm | 553 mm | 568 mm | 583 mm | 594 mm |
| Seat Tube Angle | 73.6 ° | 73.5 ° | 73.4 ° | 73.3 ° | 73.2 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.9 ° | 71.6 ° | 72.4 ° | 72.9 ° | 73.2 ° | 73.5 ° |
| Head Tube Length | 89.5 mm | 112.3 mm | 129.6 mm | 147.8 mm | 164.5 mm | 181 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 992 mm | 993 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 776 mm | 796 mm | 817 mm | 833 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
ZX1 EVO CR eTap AXS Rival belongs to the Vitus Zx1 model. 6 bikes variations carry this model name so far. Take a sneak peek at all Vitus Zx1 bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Vitus ZX1 EVO CR eTap AXS 2022 has a starting price of 4743$. Vitus ZX1 EVO CR eTap AXS Rival 2022 on the other hand is the most expensive at 4743$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Vitus ZX1 EVO CR eTap AXS Rival price was 4743$. Comparing this to the average Aero bike price, we see that the price is 12.63% higher.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
ZX1 EVO CR eTap AXS Rival weighs 8 kg (17.64 lbs) and is a bit heavier than the average. In conclusion, the average Aero bike weighs 8.99% less than ZX1 EVO CR eTap AXS Rival.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
ZX1 EVO CR eTap AXS Rival components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Vitus ZX1 EVO CR eTap AXS Rival 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus ZX1 EVO CR eTap AXS Rival has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Vitus ZX1 EVO CR eTap AXS Rival bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
