Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset GX, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
FS REVELATION MOTION CONTROL RC CROWN ADJUST 29" BOOST™ 15X110 MXL LITE DEBONAIR 150 GLOSS BLACK 42 OFFSET 1.5 TAPER A3
Drivetrain
Rear Derailleur
SRAM GX - 12-speed EAGLE Rear, LUNAR
Front Derailleur
n/a
Shift Levers
SRAM GX - 12-speed Eagle Rear, Right-hand
Cassette
SRAM XG-1275 12-speed EAGLE, 10-52t
Crank
FC GX EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM GX Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Assegai Tire - 27.5 x 2.5, Tubeless, Folding, Black, 3C MaxxTerra, EXO, Wide Trail : Maxxis Dissector Tire - 27.5 x 2.4, Tubeless, Folding, Black, 3C MaxxTerra, EXO, Wide Trail
Brakes
Brakes
SRAM Guide RS : DB GDRS GLB FRT 20P 900;
Cockpit
Stem
Race Face Ride XC (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Race 142 with Cromo Rails
Seatpost
Race Face Aeffect R 31.6 150mm BLK 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm |
| Front Center | 745 mm | 745 mm | 812.6 mm |
| Rake | 144 mm | 42 mm | 42 mm |
| Trail | 4 mm | 116 mm | 119 mm |
| Stack | 627 mm | 652.6 mm | 656.2 mm |
| Reach | 444 mm | 466 mm | 491.6 mm |
| Top Tube Length | 580 mm | 609 mm | 635 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 320 mm | 381 mm | 413 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65 ° |
| Head Tube Length | 100 mm | 108 mm | 115 mm |
| Chainstay Length | 322 mm | 430 mm | 430 mm |
| Wheelbase | 1173 mm | 1203 mm | 1237 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 710 mm | 770 mm | 803 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

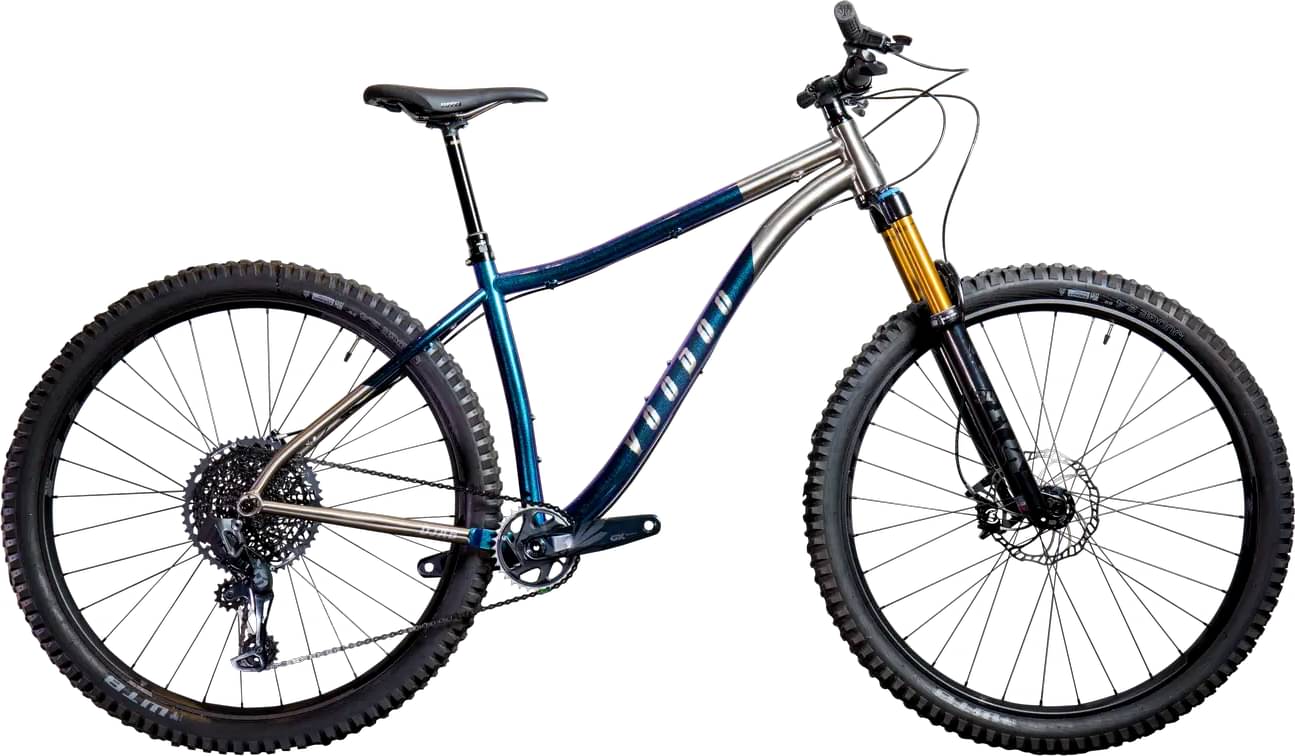

D-JAB E2 belongs to the Voodoo D Jab model. Voodoo released 6 bikes variations of this model so far. Take a sneak peek at all Voodoo D Jab bikes models from 2022, by clicking here.
Model range prices
Voodoo D-JAB E2 2022 is the most economical model, with a starting price of 4205$. Voodoo D-JAB E0 2022 on the other hand costs 7460$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Voodoo released this model in 2022, its price was 4205$. Comparing the average cost of a Trail bike to this one, you will see that D-JAB E2 price is 52.24% higher.
Overview of components
Fork
The D-JAB E2 comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the D-JAB E2 bike is equipped with the 27.5″ model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
The Voodoo model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
