Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Carbon Disc 700c Tapered; 396mm A to C; 100mm X 12mm Thru-Axle
Drivetrain
Rear Derailleur
RD RIVAL1 LONG CAGE
Shift Levers
DB Rival Hydraulic Disc, front caliper, left control, 20mm Flat Mount, 900mm hose; Shifter/Brake Rival Hydraulic, in-line Connect-a-majig, rear caliper, right control, rear shifter, Flat Mount, 1750mm hose, no frame mounting bolts
Cassette
SRAM PG-1130, 11-32 11-speed
Crank
SRAM Rival 1 GXP 172.5mm 38t Crankset
Bottom Bracket
Truvativ/SRAM GXP XR BB
Chain
SRAM PC1130 11-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
WTB Raddler 700 X 44 Tan Sidewall, Distance+ Compound, Supple Tubeless Casing, TCS Aramid Bead
Brakes
Brakes
SRAM RIVAL 22 - Included above
Cockpit
Stem
Easton EA50 31.8mm Clamp 8 deg (80, 90, 100, 110)
Handlebar
Easton EA50AX 31.8mm Clamp 40, 42cm, 44cm
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB SL8 Pro with Cromo Rails
Seatpost
Easton EA50 27.2mm X 350mm X 12mm SB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45cm | 48cm | 51cm | 54cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.49 mm | 1.51 mm | 1.52 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 272 mm | 273 mm | 274 mm | 275 mm | 276 mm | 277 mm |
| Front Center | 567.83 mm | 573.4 mm | 588.7 mm | 609.3 mm | 624.7 mm | 639.6 mm |
| Rake | 43 mm | 45 mm | 45 mm | 46 mm | 46 mm | 46 mm |
| Trail | 81 mm | 76 mm | 73 mm | 68 mm | 65 mm | 62 mm |
| Stack | 540.64 mm | 553.6 mm | 572.5 mm | 591.5 mm | 612.3 mm | 633.3 mm |
| Reach | 364 mm | 372 mm | 380 mm | 388 mm | 396 mm | 404 mm |
| Top Tube Length | 506 mm | 524 mm | 544 mm | 563 mm | 583 mm | 603 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 370 mm | 400 mm | 434 mm | 463 mm | 492 mm | 530 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 113 mm | 133 mm | 153 mm | 173 mm | 194 mm | 214 mm |
| Chainstay Length | 429 mm | 429 mm | 431 mm | 431 mm | 433 mm | 433 mm |
| Wheelbase | 995 mm | 1006 mm | 1018 mm | 1029 mm | 1041 mm | 1051 mm |
| Bottom Bracket Drop | 77 mm | 76 mm | 75 mm | 74 mm | 73 mm | 72 mm |
| Standover Height | 758 mm | 771 mm | 790 mm | 809 mm | 829 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

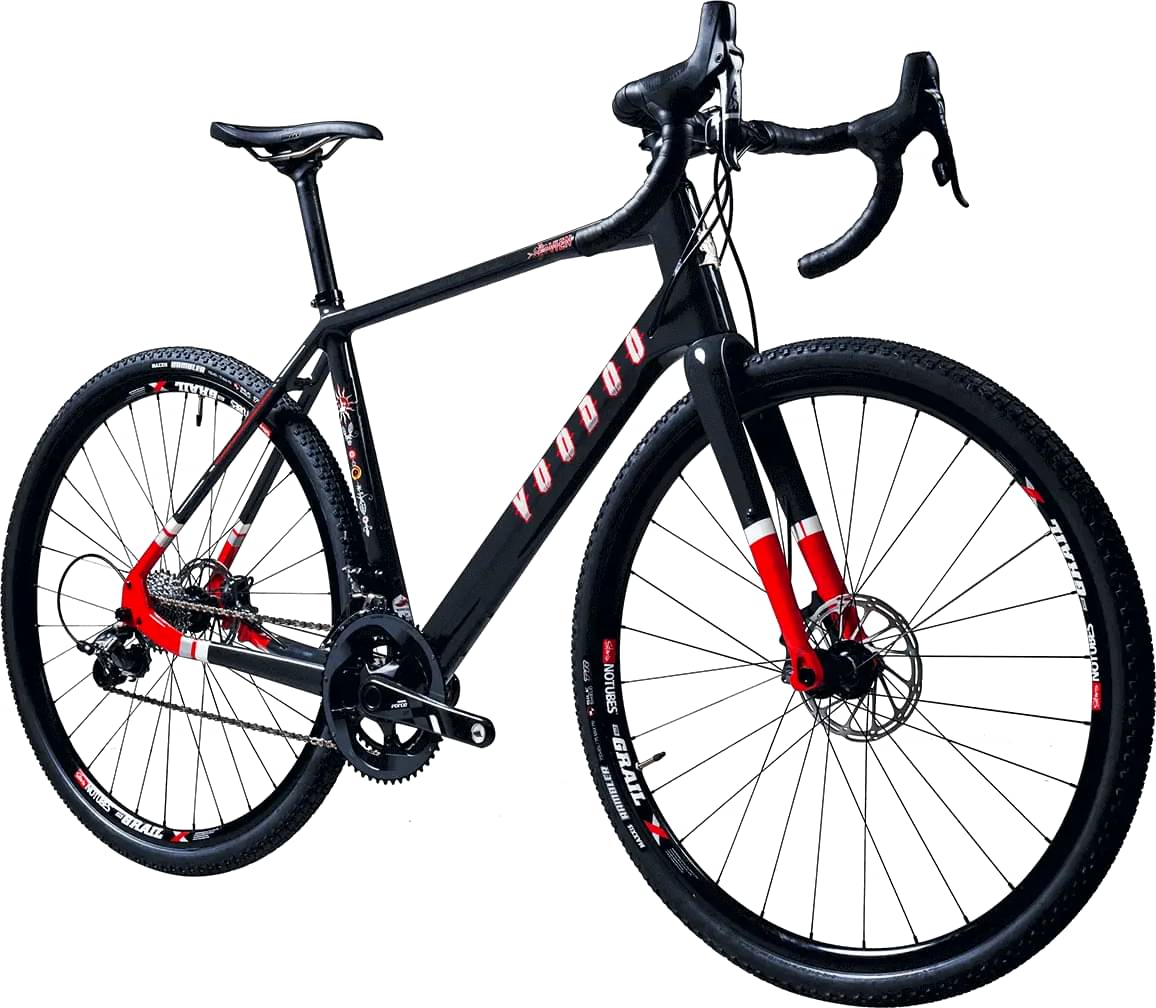

VIENTO G2 is a Voodoo Viento model. 6 bikes variations carry this model name so far. You can easily view all of the Voodoo Viento bikes models from 2023, here.
Model range prices
Voodoo VIENTO G2 2023 is the cheapest bike model and costs 3930$. Voodoo VIENTO G0 2023 is the most expensive one and costs 6431$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3930$. Comparing this to the average Gravel bike price, we see that the price is 59.63% higher.
VIENTO G2 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Voodoo VIENTO G2 2023, has a 700c model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Voodoo VIENTO G2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
