Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Rock Shox SID Select 120mm Boost; 51mm offset, 29/27.5+" Tapered
Drivetrain
Rear Derailleur
SRAM X01 - 12-speed EAGLE Rear, BLACK
Front Derailleur
n/a
Shift Levers
SL X01 EAGLE TRIGGER LUNAR
Cassette
SRAM XG-1295 12-speed EAGLE, 10-52t
Crank
FC STYLO C EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM X01 Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Rekon Front 29: X 2.6", EXO/TR; Agressor Rear 29" X 2.5", EXO/TR
Brakes
Brakes
SRAM G2 RSC : DB-G2RSC DFB FRT 20P 900 : DB G2RSC DFB RER 20P 1500
Cockpit
Stem
Race Face Turbine Basic (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Pro 142 with Cromo Rails
Seatpost
Race Face Dropper - Turbine R 31.6 406/125 BLK 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.52 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 655 mm | 680.5 mm | 700 | 713.5 mm |
| Stack | 605.8 mm | 610.5 mm | 615.1 mm | 619.8 mm |
| Reach | 377 mm | 400.7 mm | 418.2 mm | 430.25 mm |
| Top Tube Length | 566 mm | 591 mm | 610 mm | 635.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 343 mm | 368.3 mm | 400 mm | 438.15 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 406.7 mm | 424.2 mm | 436.25 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1085 mm | 1111 mm | 1130 mm | 1143 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 740 mm | 762 mm | 785 mm | 811 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

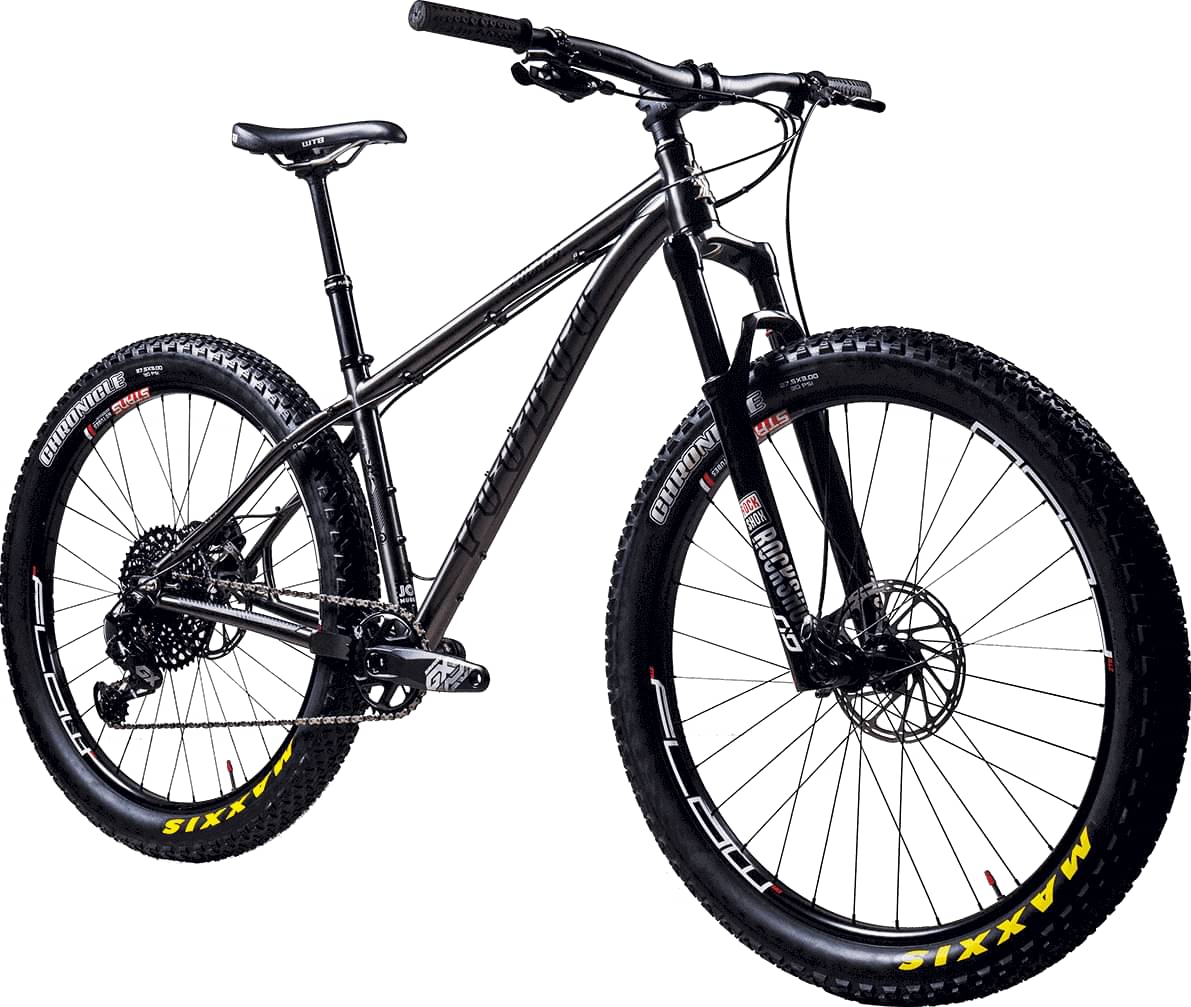

ZOCALO T1 belongs to the Voodoo Zocalo model. 6 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Voodoo ZOCALO T2 2022 has a starting price of 4206$. Voodoo ZOCALO T0 2022 on the other hand is the most expensive at 7859$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5636$. Comparing this to the average Trail bike price, we see that the price is 104.06% more expensive.
Overview of components
Fork
The ZOCALO T1 comes factory-installed with the RockShox SID Select fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on ZOCALO T1 are the 29″ type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Voodoo ZOCALO T1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
ZOCALO T1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Voodoo ZOCALO T1 includes a dropper post. Therefore, climbing or descending will be a breeze.
