Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset GX, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Rock Shox REBA RL 120mm Boost; 51mm offset, 29/27.5+"
Drivetrain
Rear Derailleur
SRAM GX - 12-speed EAGLE Rear, LUNAR
Front Derailleur
n/a
Shift Levers
SRAM GX - 12-speed Eagle Rear, Right-hand
Cassette
SRAM XG-1275 12-speed EAGLE, 10-52t
Crank
FC GX EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM GX Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Rekon Front 29: X 2.6", EXO/TR; Agressor Rear 29" X 2.5", EXO/TR
Brakes
Brakes
SRAM Guide RS : DB GDRS GLB FRT 20P 900;
Cockpit
Stem
Race Face Aeffect 35 (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,Aeffect,35,10MM RISER, 760MM
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Pro 142 with Cromo Rails
Seatpost
Race Face Aeffect R 31.6 380/125 BLK 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.52 mm | 1.47 mm | 1.44 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 655 mm | 680.5 mm | 700 | 713.5 mm |
| Stack | 605.8 mm | 610.5 mm | 615.1 mm | 619.8 mm |
| Reach | 377 mm | 400.7 mm | 418.2 mm | 430.25 mm |
| Top Tube Length | 566 mm | 591 mm | 610 mm | 635.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 343 mm | 368.3 mm | 400 mm | 438.15 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 406.7 mm | 424.2 mm | 436.25 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1085 mm | 1111 mm | 1130 mm | 1143 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 740 mm | 762 mm | 785 mm | 811 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

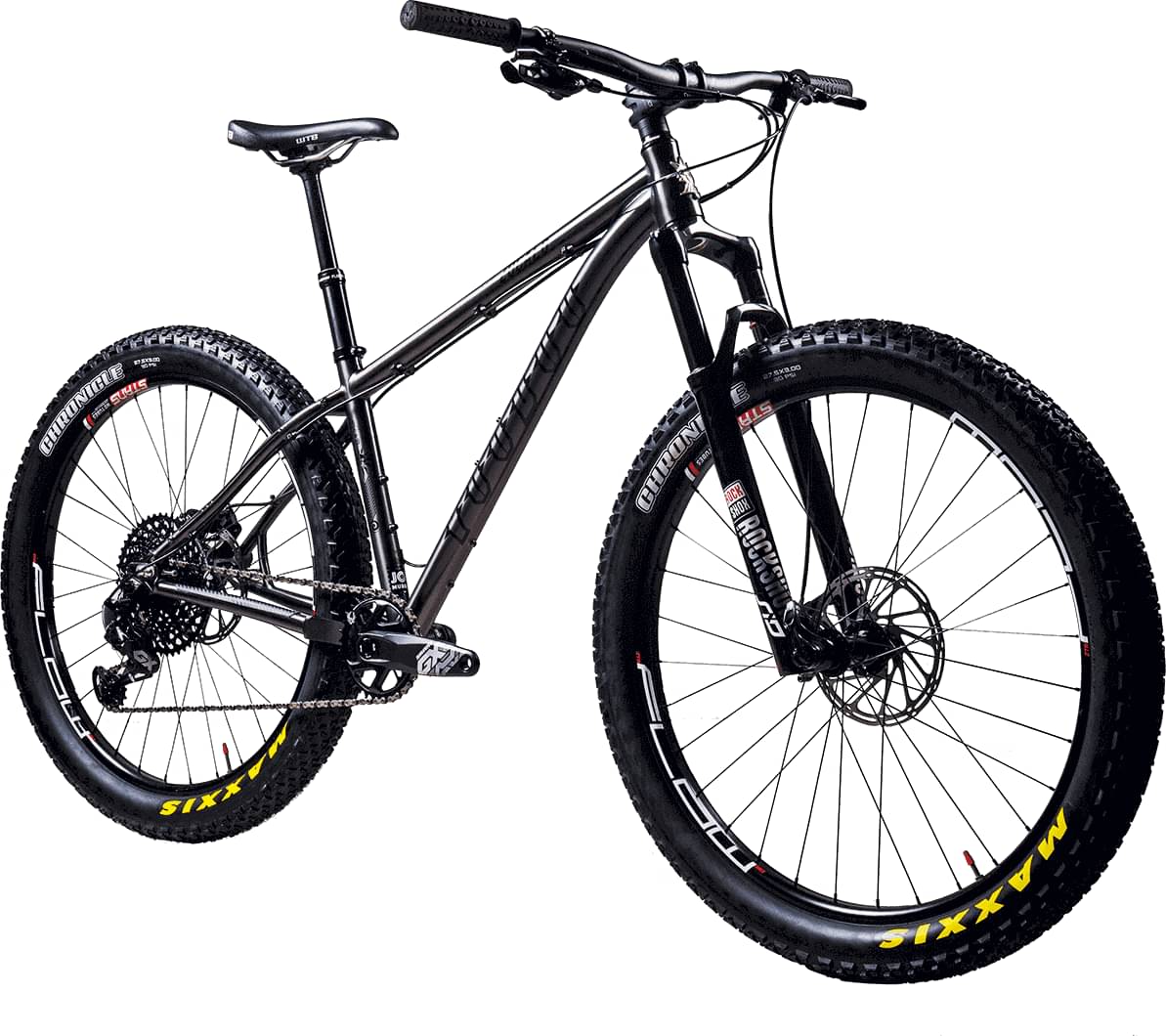

ZOCALO T2 is a Voodoo Zocalo model. 6 bikes variations carry this model name so far. You can easily view all of the Voodoo Zocalo bikes models from 2023, here.
Model range prices
The most economical model, the Voodoo ZOCALO T2 2023 has a starting price of 4206$. Voodoo ZOCALO T0 2023 on the other hand is the most expensive at 7859$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4206$. Comparing the average cost of a Trail bike to this one, you will see that ZOCALO T2 price is 52.28% more expensive.
ZOCALO T2 components
Fork
The ZOCALO T2 comes factory-installed with the RockShox Reba fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the ZOCALO T2 bike is equipped with the 29″ model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ZOCALO T2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Voodoo ZOCALO T2 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the ZOCALO T2. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
