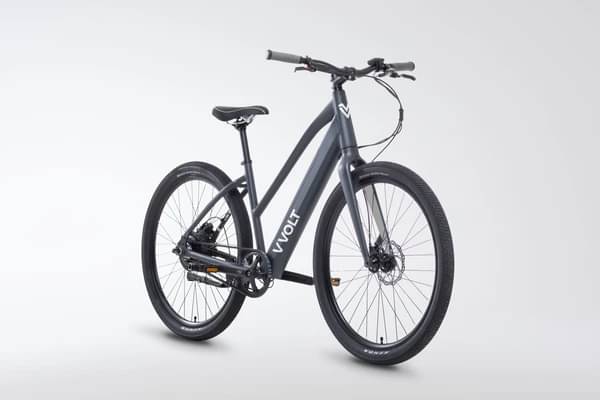

vvolt Alpha Step Through 2022
2022 E-bike
Estimate price |
1,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Suspension Rigid -
Motor 350W 45Nm hub-drive -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
144cm - 172cm
XL
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Vvolt Alloy w/Removable Downtube Battery, fender, rack and 1x bottle cage mounts
Suspension Fork
Vvolt Alloy Thru Axle w/ 3-pack fender and accessory mounts
Drivetrain
Cassette
Gates 22t
Crank
Square Taper, 170mm, 5x130mm BCD; Gates CDN, 50t
Bottom Bracket
Candence-Sensor Sealed Bearing Square Taper, 68mmx116
Pedals
Plastic platform w/reflectors
Wheels
Front Hub
Sealed Bearing, 15x100mm Thru-Axle Disc, 32h
Rims
Black Alloy, Disc Specific 32h front 36h rear
Spokes
black steel 14g front, 12g rear
Tires
27.5 x 1.95, low tread pattern for street and gravel
Brakes
Brakes
CStar Radius Hydraulic, 160mm rotors
Cockpit
Stem
31.8 Clamp, 7º rise
Handlebar
Alloy 31.8, 20mm rise x 660mm width
Grips
Ergonomic Shape Dual-Density
Seat
Saddle
Hybrid Gel Comfort Saddle
Seatpost
27.2 x 350mm
Motor & Battery
Motor
Xplova, 350w nominal power, 45nm max torque
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | XL |
|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.58 mm |
| Front Center | 635 mm | 658 mm |
| Rake | 44 mm | 41 mm |
| Trail | 64 mm | 67 mm |
| Stack | 640 mm | 651 mm |
| Reach | 390 mm | 413 mm |
| Top Tube Length | 590 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 480 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° |
| Head Tube Length | 210 mm | 210 mm |
| Chainstay Length | 446 mm | 446 mm |
| Wheelbase | 1073 mm | 1096 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 683 mm | 733 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 144 cm | 170 cm |
| Rider Max Height | 172 cm | 185 cm |
Model Overview
Alpha Step Through is part of the Vvolt E Alpha model. Vvolt launched 2 e-bikes of this model so far. Take a sneak peek at all Vvolt E Alpha e-bikes models from 2022, by clicking here.
Model range prices
Vvolt Alpha Step Through 2022 is the most economical model, with a starting price of 1399$. Vvolt Alpha 2022 on the other hand costs 1399$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1399$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Alpha Step Through price is 77.27% lower.
Alpha Step Through components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Alpha Step Through are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 2 sizes. They vary from 144 cm – 185 cm (4.72 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
