Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Groupset Claris, Shimano -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WHITE RC AL 16S
Suspension Fork
Rigid fork
Rear Shock
none
Drivetrain
Rear Derailleur
Shimano RDR2000GS
Front Derailleur
Shimano FDR2000
Shift Levers
Shimano STR2000 2*8
Cassette
Shimano ACSHG508132P
Crank
ALLOY/STEEL (32/48T) 140L
Bottom Bracket
FP-B910
Chain
KMC Z8.1 Grey/Grey
Pedals
n/a
Wheels
Front Hub
alloy hub
Rear Hub
alloy hub
Rims
White alloy 20/24H
Spokes
White spoke
Tires
CST C1406 24"*1
Brakes
Brakes
Leechi RC481 caliper brake
Cockpit
Stem
White alloy 31.8mm
Handlebar
White alloy rise bar 360mm
Grips
White Tape
Headset
NECO H117A 1-1/8" THREADLESS
Seat
Saddle
WHITE junior
Seatpost
White alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.343 mm | mm | mm | mm | mm |
| Rake | 40 mm | mm | mm | mm | mm |
| Stack | 443.4 mm | mm | mm | mm | mm |
| Reach | 330.2 mm | mm | mm | mm | mm |
| Top Tube Length | 470 mm | mm | mm | mm | mm |
| Seat Tube Angle | 72.5 ° | ° | ° | ° | ° |
| Seat Tube Length | 350 mm | mm | mm | mm | mm |
| Head Tube Angle | 72 ° | ° | ° | ° | ° |
| Head Tube Length | 110 mm | mm | mm | mm | mm |
| Chainstay Length | 385 mm | mm | mm | mm | mm |
| Wheels | 24" | 24" | 24" | 24" | 24" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

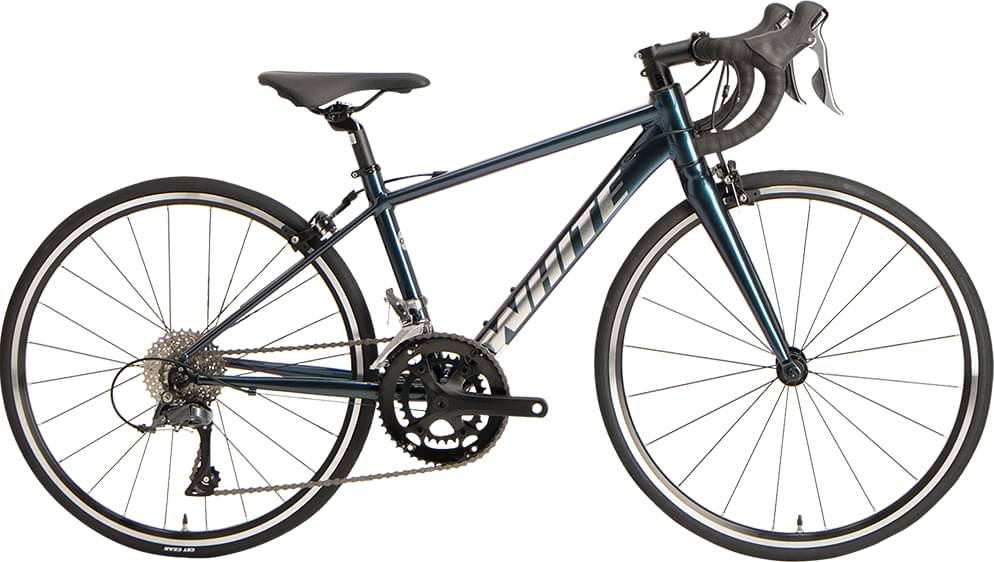

RC 240 LTD is part of the White Rc model. There are 3 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Road bikes average price
According to our calculations, the average cost of a Road bike that is reliable is 365$. However, this doesn’t mean that if you spend less money on a Road bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
RC 240 LTD components
Wheels size
The wheels on RC 240 LTD are the 24″ aluminum type. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
RC 240 LTD comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
