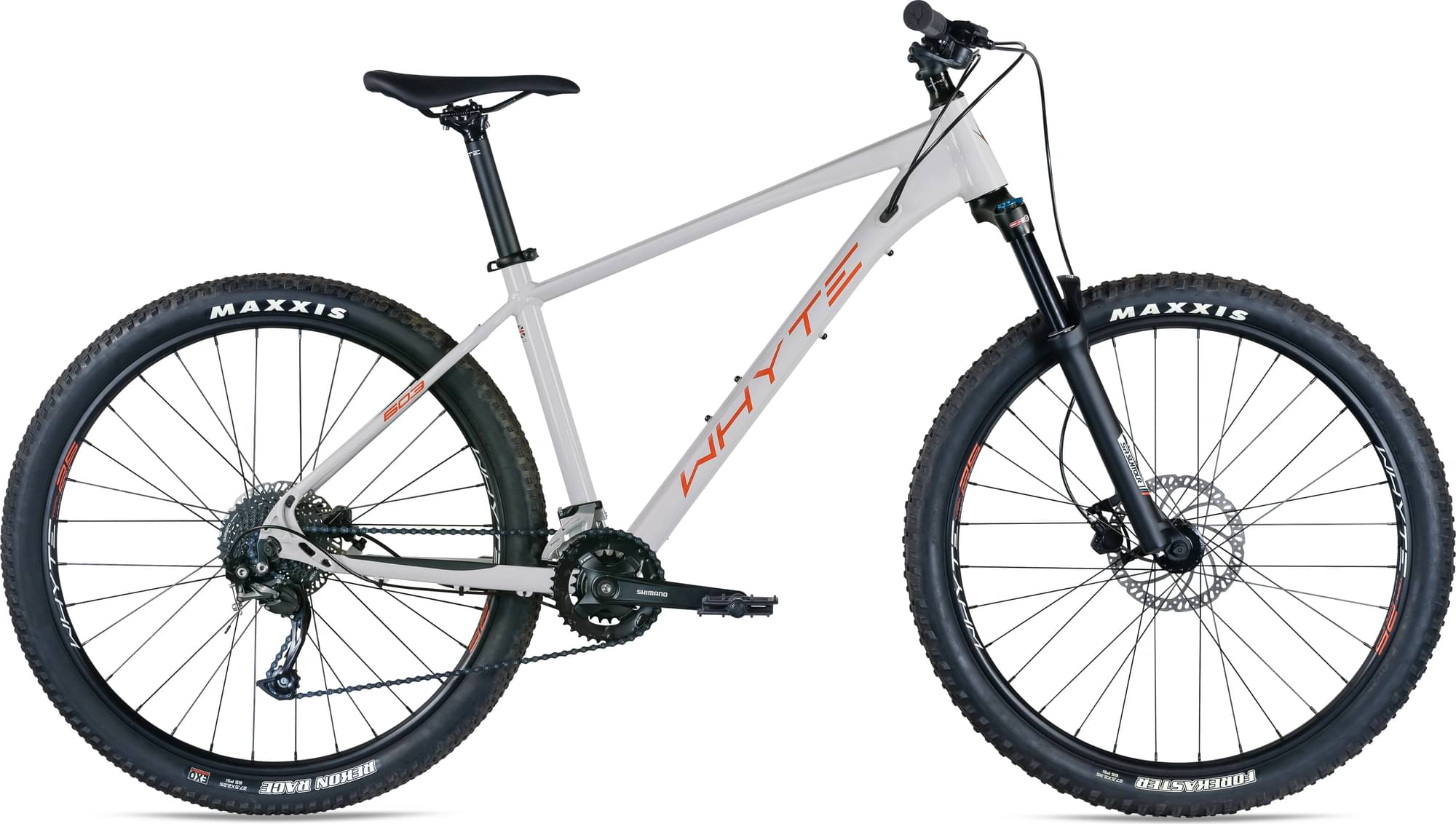

Whyte 603 2022
2022 Mountain
Estimate price |
1,050$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts
Suspension Fork
SR Suntour XCR-LO 27.5", 120mm Travel, Tapered Steerer, Hydro Lockout, Fixed Rebound Damping, Black Stanchions
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000-SGS, 9 Speed
Front Derailleur
Shimano Altus FD-M2020
Shift Levers
Shimano Altus SL-M2010, 9 Speed
Cassette
Shimano CS-HG-200, 11-36, 9 Speed
Crank
Shimano FC-MT101, Double 36-22, 9 Speed
Bottom Bracket
Square Interface, Cartridge Bearings, 73mm
Chain
SunRace, 9 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rims
Whyte Trail 25, Tubeless compatible, 32 Hole
Spokes
2.0mm, PG, Black Stainless, Brass Nipples
Tires
MAXXIS Forekaster 27.5" x 2.35" Front, MAXXIS Recon Race 27.5" x 2.25" Rear Wire Bead
Brakes
Brakes
Tektro HD-M275, Hydraulic, 180mm Rotor
Brake Levers
Tektro HD-M275
Cockpit
Stem
Whyte Alloy, S 35mm, M/L/XL 45mm
Handlebar
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 760mm Wide
Grips
Whyte Lock-on V Grip
Headset
FEIMIN H807B, Semi Integrated, 1 1/8" Lower 1 1/2 Lower Caged Bearings
Seat
Saddle
Whyte Custom
Seatpost
Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 303.5 mm | 303.5 mm | 303.5 mm | 303.5 mm |
| Stack | 615 mm | 625 mm | 634 mm | 643 mm |
| Reach | 436 mm | 451 mm | 467 mm | 483 mm |
| Top Tube Length | 610 mm | 629 mm | 647 mm | 666 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 444 mm | 482.6 mm | 533 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1154 mm | 1174 mm | 1194 mm | 1214 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 52 mm |
| Standover Height | 786 mm | 808 mm | 832 mm | 870 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
603 belongs to the Whyte 603 model. There are 4 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Whyte 603 2022 is the most affordable bike of this model and has a price of 943$. On the other hand, Whyte 603 Trail Sport Hardtail Bike 2022, is the most expensive and costs 943$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 943$. In conclusion, this bike price is 192.9% lower than the price of the average Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.6 kg (29.98 lbs), the 603 model is slightly heavier than average. To sum up, it’s 4.78% heavier than the average weight of Trail bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Whyte 603 2022 bike is equipped with the Suntour XCR fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the 603 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Whyte 603 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
