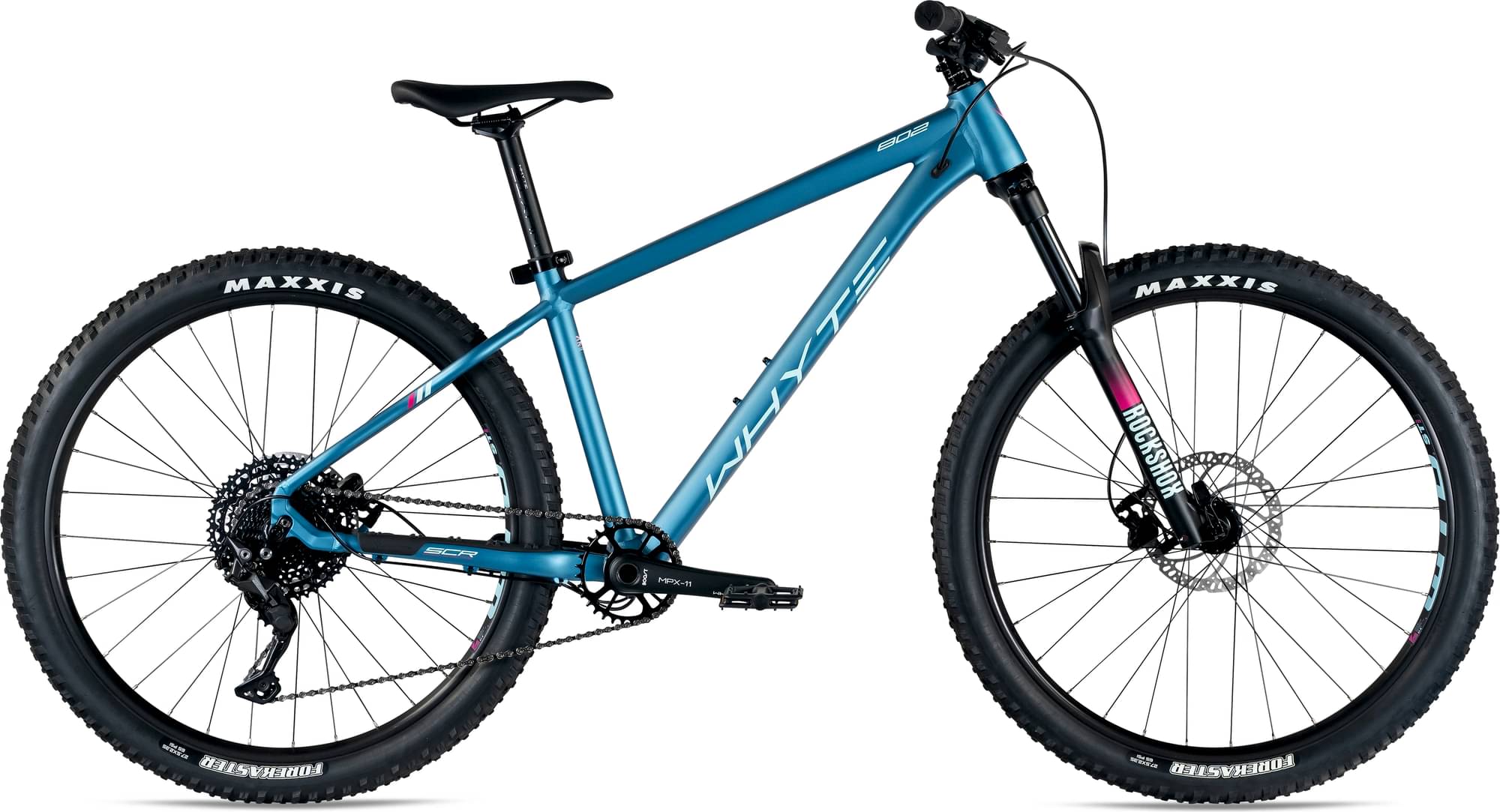

Whyte 802 Compact Trail Hardtail Bike 2022
2022 Mountain
Estimate price |
1,694$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Get A Grip Seat Clamp System, Internal Cable Routing with BBX63 and Chainstay Post Mount Dropouts 12mm X 148mm Boost
Suspension Fork
RockShox Recon RL 27.5", 120mm Travel, 37mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120-SGS, Shadow Plus, 10 Speed
Front Derailleur
N/A
Shift Levers
Shimano Deore SL-M4100, 10 Speed
Cassette
SunRace CSMS2, ED Black, 11-46, 10 Speed
Crank
Whyte, Forged 2pcs Cranks, Direct Mount 32T Narrow/Wide Chainring, 170mm, 10 Speed
Bottom Bracket
BSA, Cartridge Bearings, 73mm
Chain
SunRace 10 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 10mm x 148mm Boost Thru Axle, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 10mm x 148mm Boost Thru Axle, 32 Hole
Rims
WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Forekaster 27.5"x 2.35" Dual Compound, 60TPI
Brakes
Brakes
Tektro Auriga HD-M280, 180mm Disc
Brake Levers
Tektro Auriga HD-M280
Cockpit
Stem
Whyte Alloy, 40mm Extension
Handlebar
Whyte 6061 Alloy, 15mm Rise, 31.8mm, XS 740mm Wide, S/M 760mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Seat
Saddle
Whyte Custom
Seatpost
Whyte 6061 Alloy, 15mm Offset, 30.9mm x 350mm, 2 Bolt Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 303.5 mm | 303.5 mm | 303.5 mm |
| Stack | 600 mm | 607 mm | 617 mm |
| Reach | 405 mm | 422 mm | 438 mm |
| Top Tube Length | 578 mm | 597 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 406 mm | 444 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 107 mm | 115 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1139 mm | 1159 mm | 1189 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm |
| Standover Height | 759 mm | 777 mm | 801 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
802 Compact Trail Hardtail Bike completes the Whyte 802 model. There are 7 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Whyte 802 COMPACT v4 2022 is the most affordable bike of this model and has a price of 1337$. On the other hand, Whyte 802 Compact Trail Hardtail Bike 2022, is the most expensive and costs 1520$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 1520$. If we compare this with the average Trail bike cost we notice that the price is 81.71% smaller.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Whyte 802 Compact Trail Hardtail Bike it’s weighing 12.8 kg (28.22 lbs). At this weight, is slightly lighter than average. In other words, this model is 1.41% lighter than the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
802 Compact Trail Hardtail Bike components
Fork
The 802 Compact Trail Hardtail Bike comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on 802 Compact Trail Hardtail Bike are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Whyte 802 Compact Trail Hardtail Bike has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Whyte 802 Compact Trail Hardtail Bike bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, you can easily find one that suits you.
