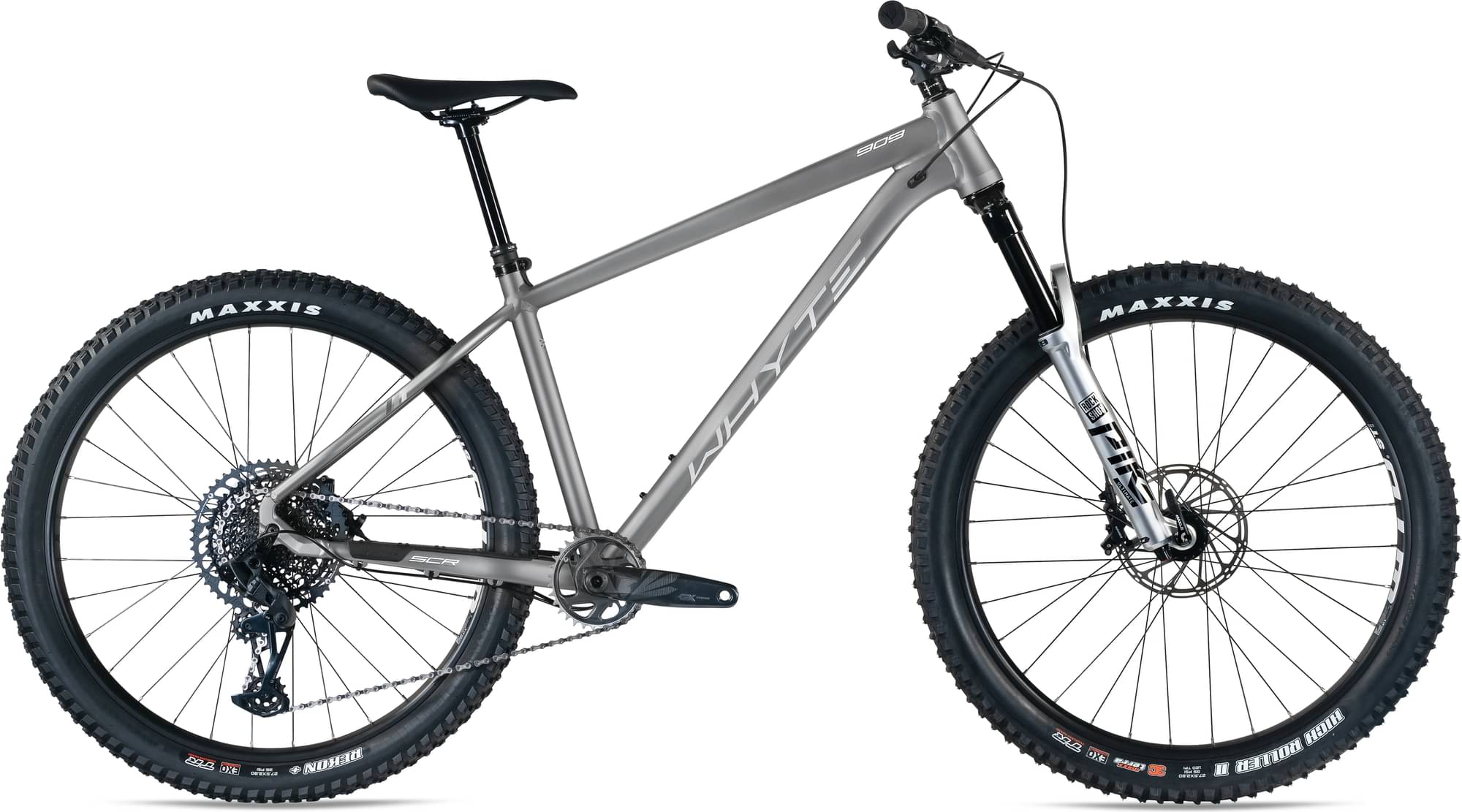

Whyte 909 2022
2022 Mountain
Estimate price |
3,726$
Weight | 11.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal BBX63 Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Suspension Fork
RockShox Pike Ultimate 27.5", 130mm Travel, 37mm Offset, DebonAir, Charger RT3C Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, MMX, 12 Speed
Cassette
SRAM XG 1275 Eagle, 10-52, 12 Speed
Crank
SRAM GX Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM GX Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, Micro Engagement 4 Pawl, XD Driver, 32 Hole
Rims
WTB ST i35 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis High Roller II TR 27.5" x 2.8" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Rekon TR 27.5" x 2.8" 60TPI, EXO Sidewall Protection, Rear
Brakes
Brakes
SRAM Guide G2 R, 4 Piston, 180mm Disc
Brake Levers
SRAM Guide G2 R, MMX
Cockpit
Stem
Whyte Gravity Stem, 35mm Extension
Handlebar
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom
Seatpost
KS RAGEi, 30.9mm, S/M 150mm, L/XL 170mm Travel, KS South Paw MMX Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 297.5 mm | 297.5 mm | 297.5 mm | 297.5 mm |
| Stack | 630 mm | 639 mm | 650 | 657 mm |
| Reach | 433 mm | 460 mm | 482 mm | 507 mm |
| Top Tube Length | 606 mm | 633 mm | 660 mm | 688 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406 mm | 431 mm | 457 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1179 mm | 1209 mm | 1234 mm | 1264 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 789 mm | 806 mm | 823 mm | 840 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
909 is part of the Whyte 909 model. There are 8 bikes that carry this model name. Take a sneak peek at all Whyte 909 bikes models from 2022, by clicking here.
Model range prices
Whyte 909 v4 2022 is the most affordable bike of this model and has a price of 2980$. On the other hand, Whyte 909 Enduro Hardtail Bike 2022, is the most expensive and costs 3345$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3345$. Comparing this to the average Trail bike price, we see that the price is 21.11% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably lighter than average, 909 has a weight of 11.7 kg (25.79 lbs). In conclusion, the average Trail bike weighs 10.94% more than 909.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Whyte 909 2022 bike is equipped with the RockShox Pike Ultimate fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the 909 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Whyte 909 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Whyte 909 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
