Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

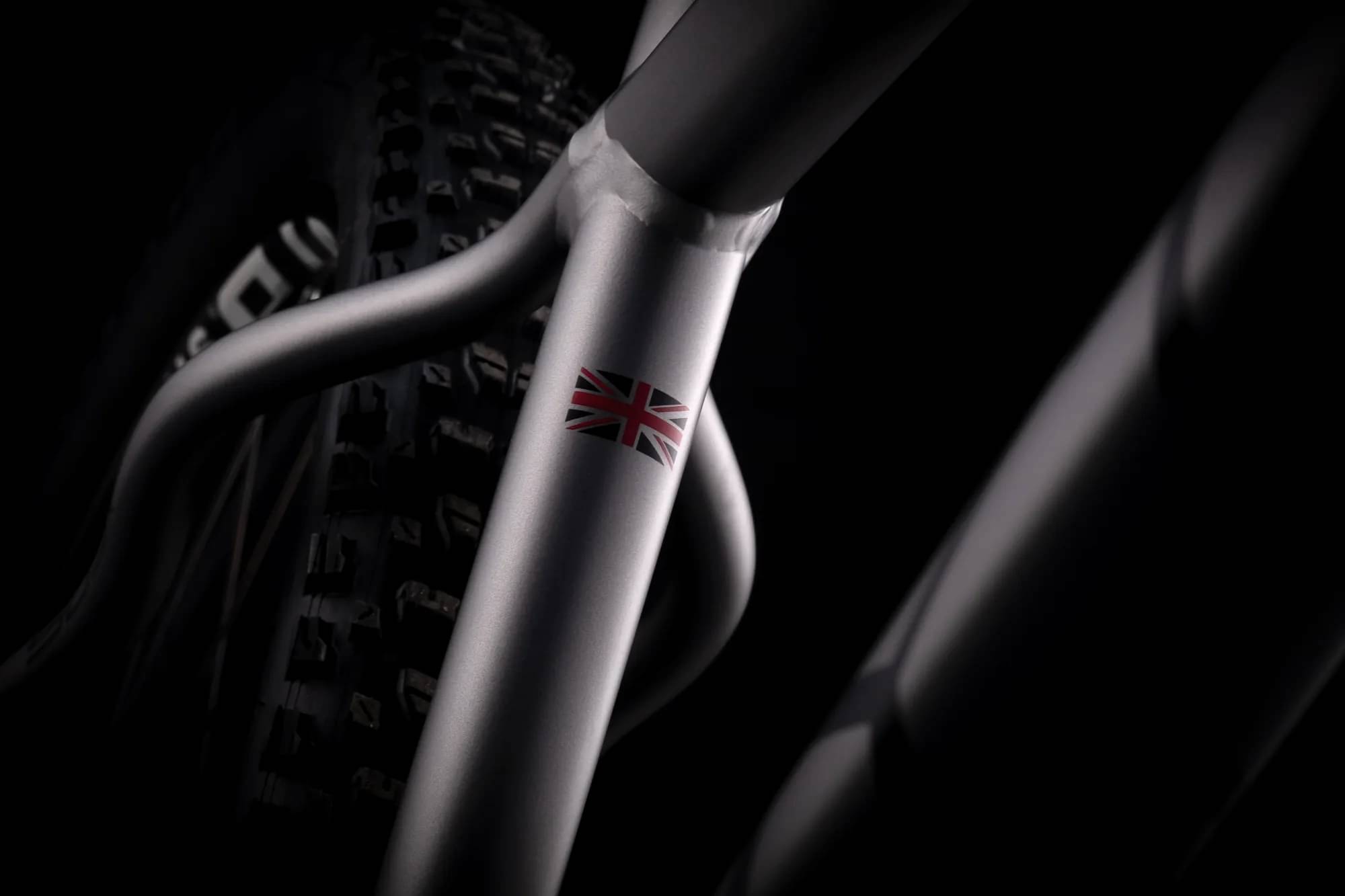

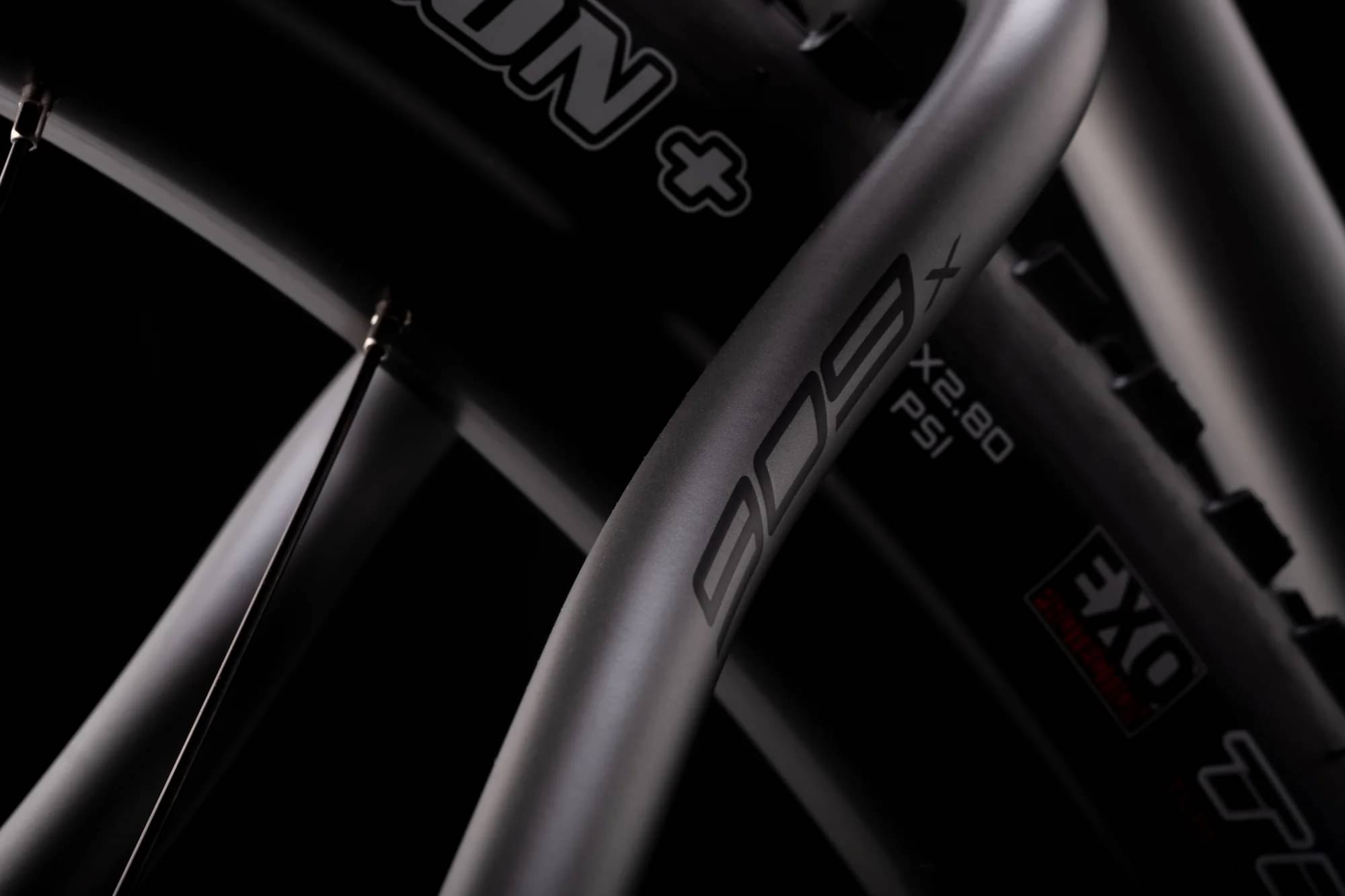

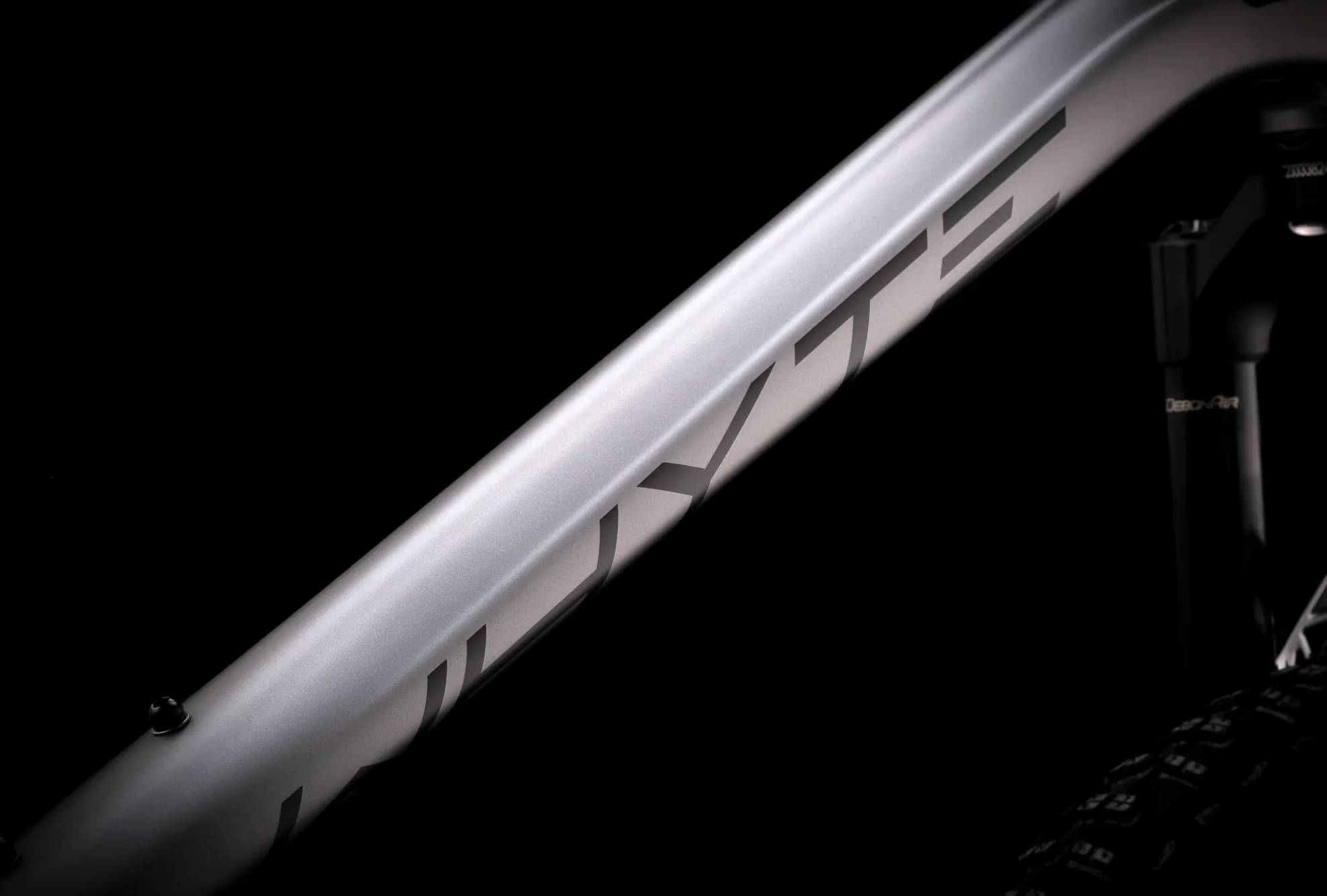

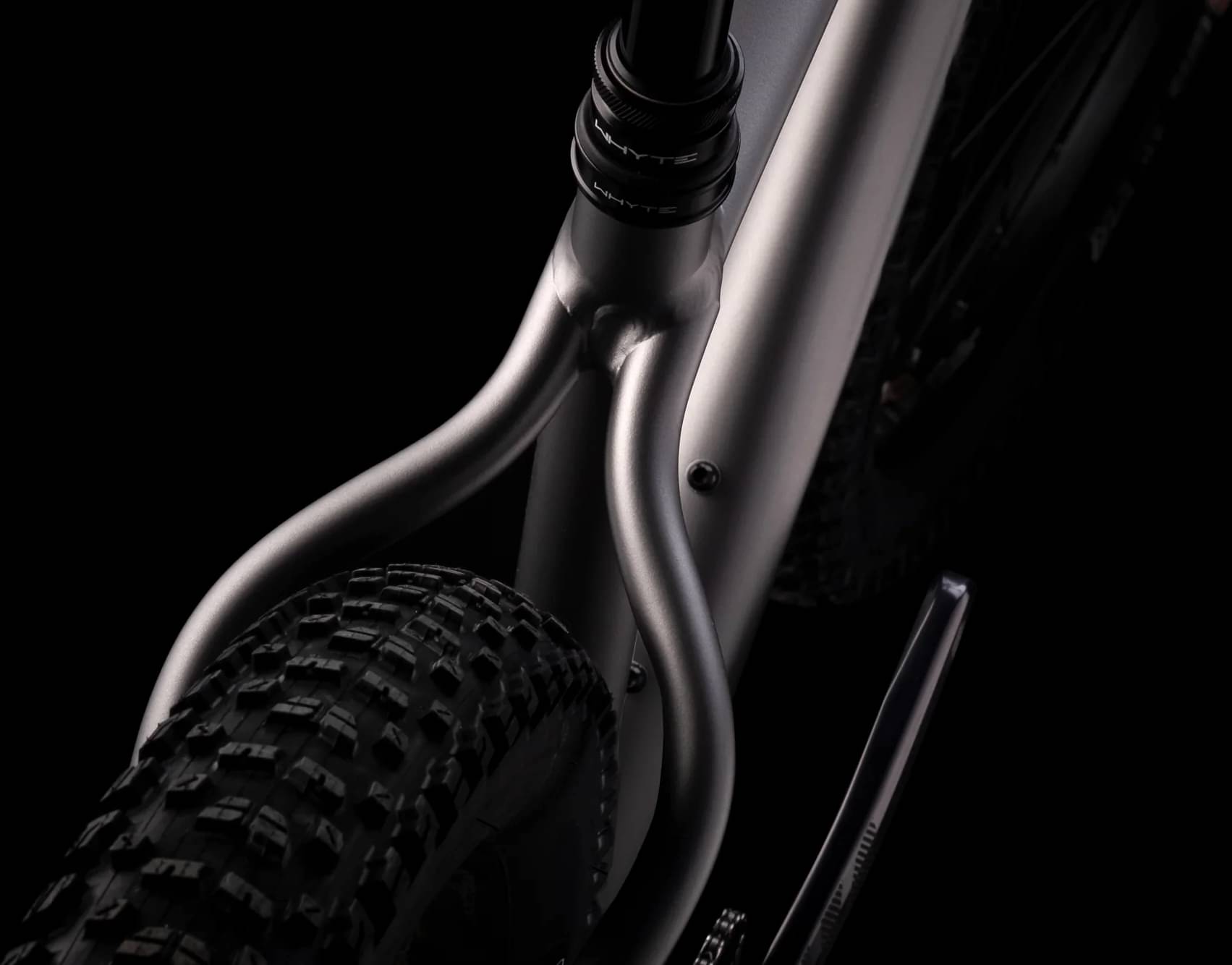

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal BBX63 Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Suspension Fork

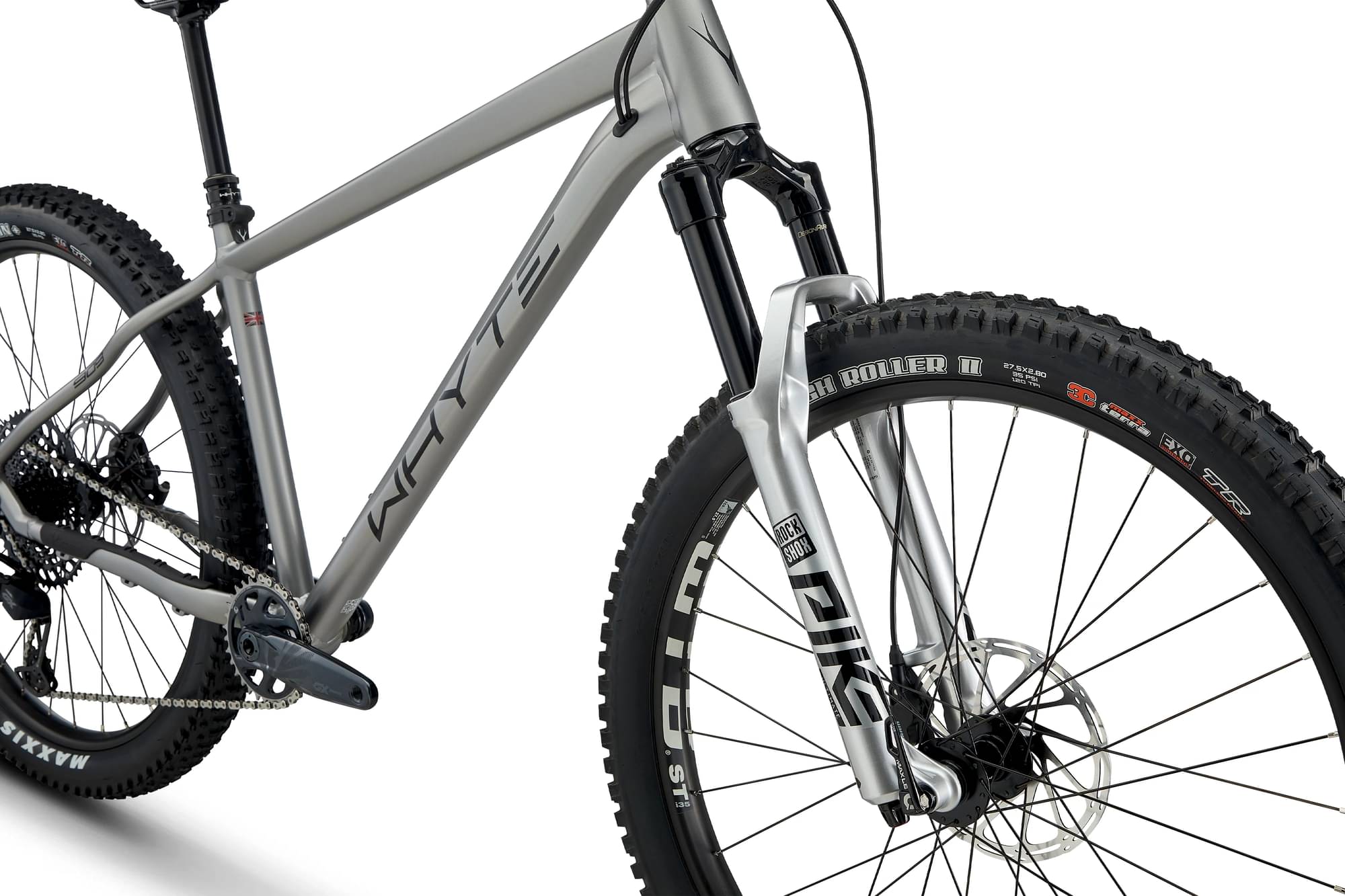

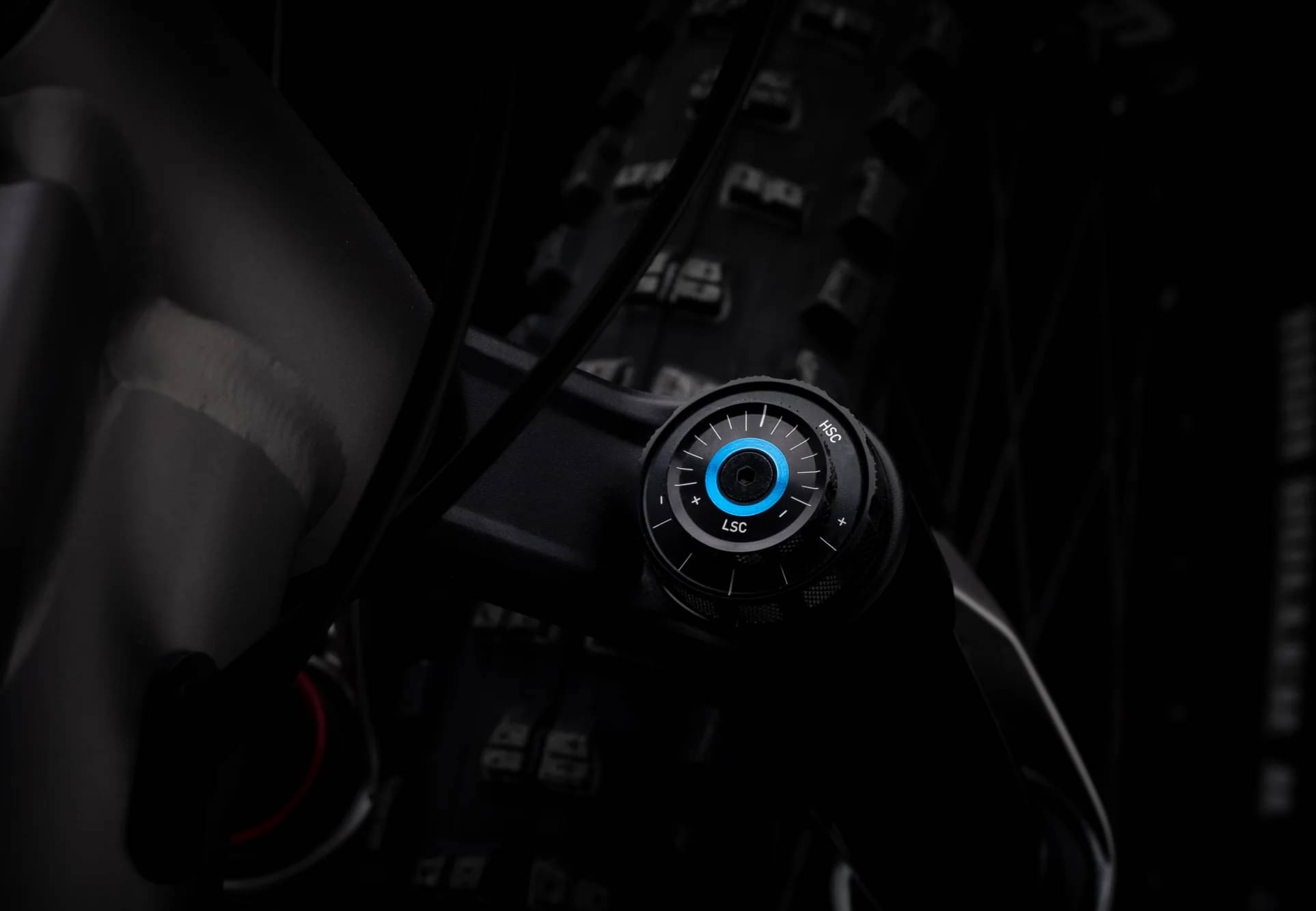

RockShox Pike Ultimate 27.5"", 130mm Travel, 37mm Offset, DebonAir, Charger RT3C Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Rear Shock
N/A
Drivetrain
Rear Derailleur

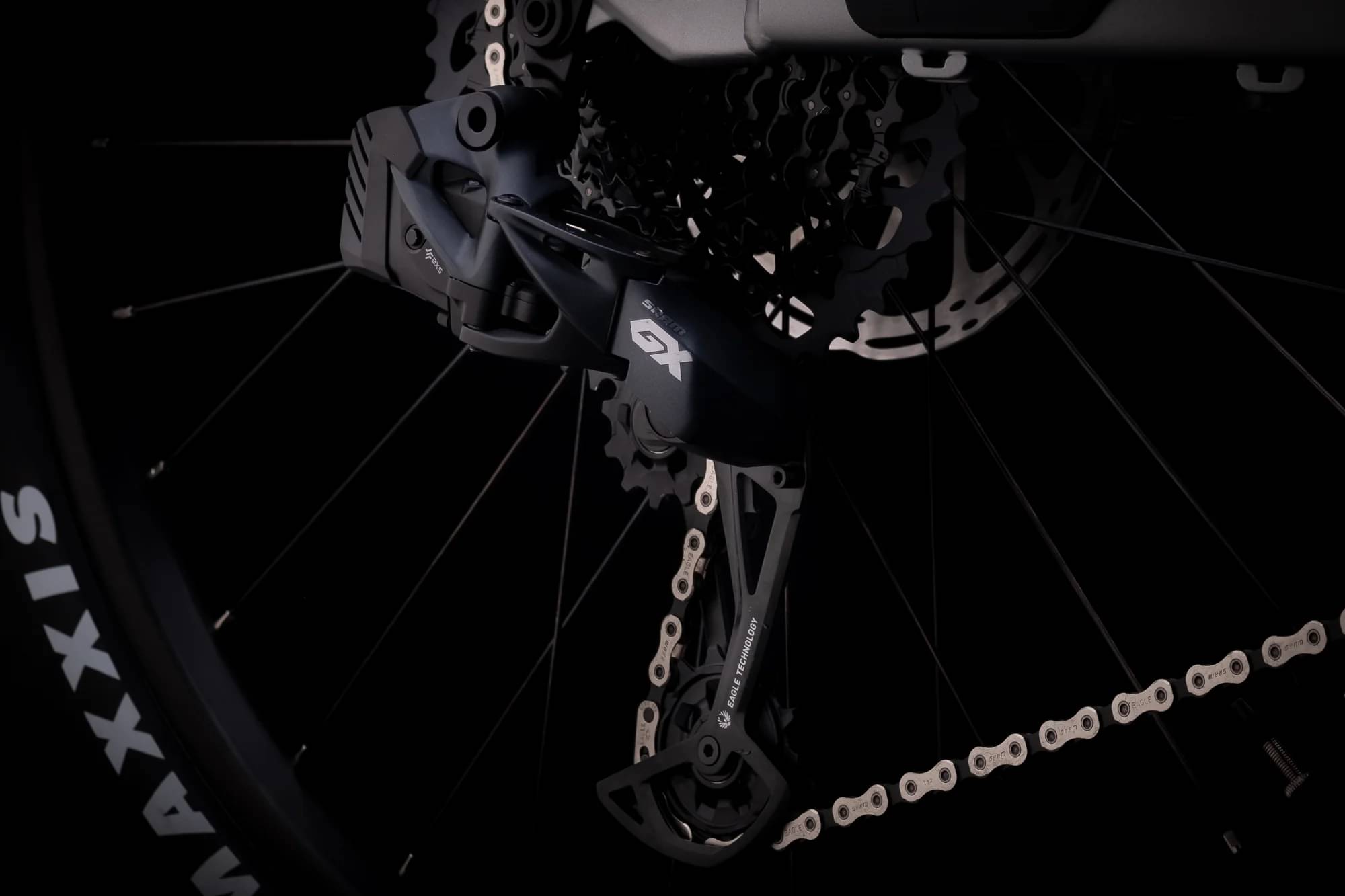

SRAM GX1 AXS Lunar Eagle with Battery Protector, 12 Speed
Front Derailleur
N/A
Shift Levers

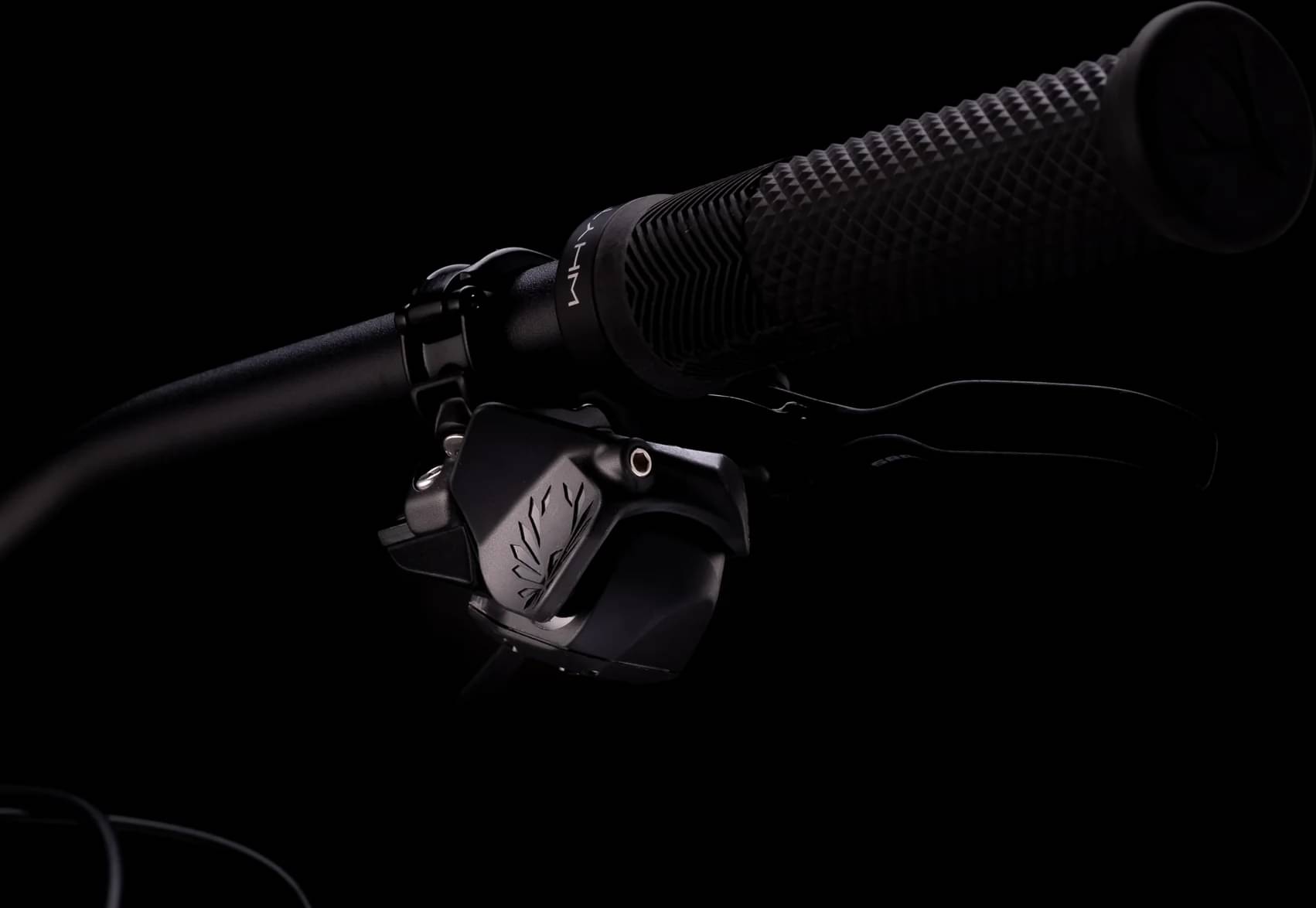

SRAM GX AXS Eagle 2 Button, MMX, 12 Speed
Cassette
SRAM XG 1275 Eagle, 10-52, 12 Speed
Crank

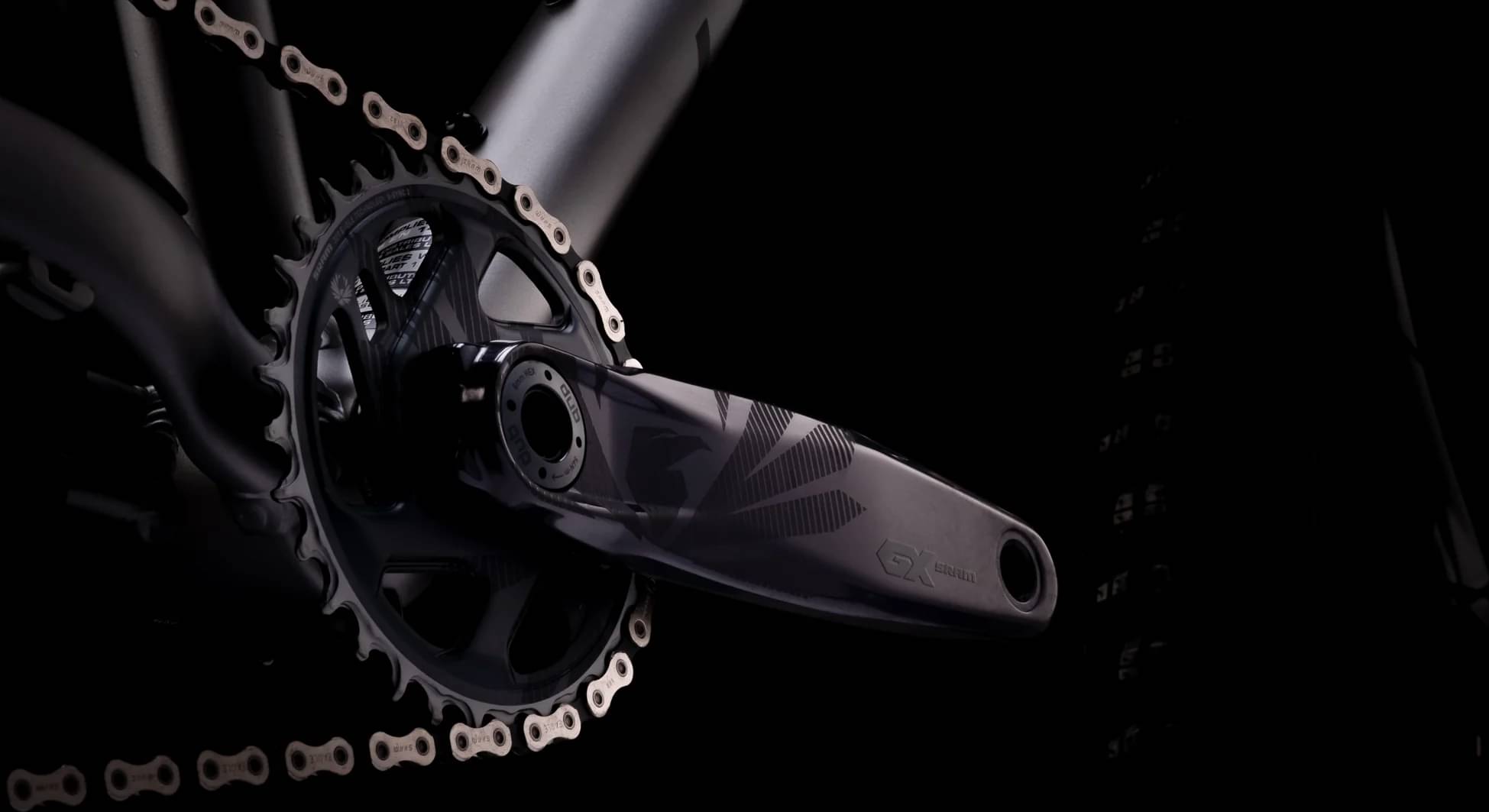

SRAM GX Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost 12 Speed
Bottom Bracket

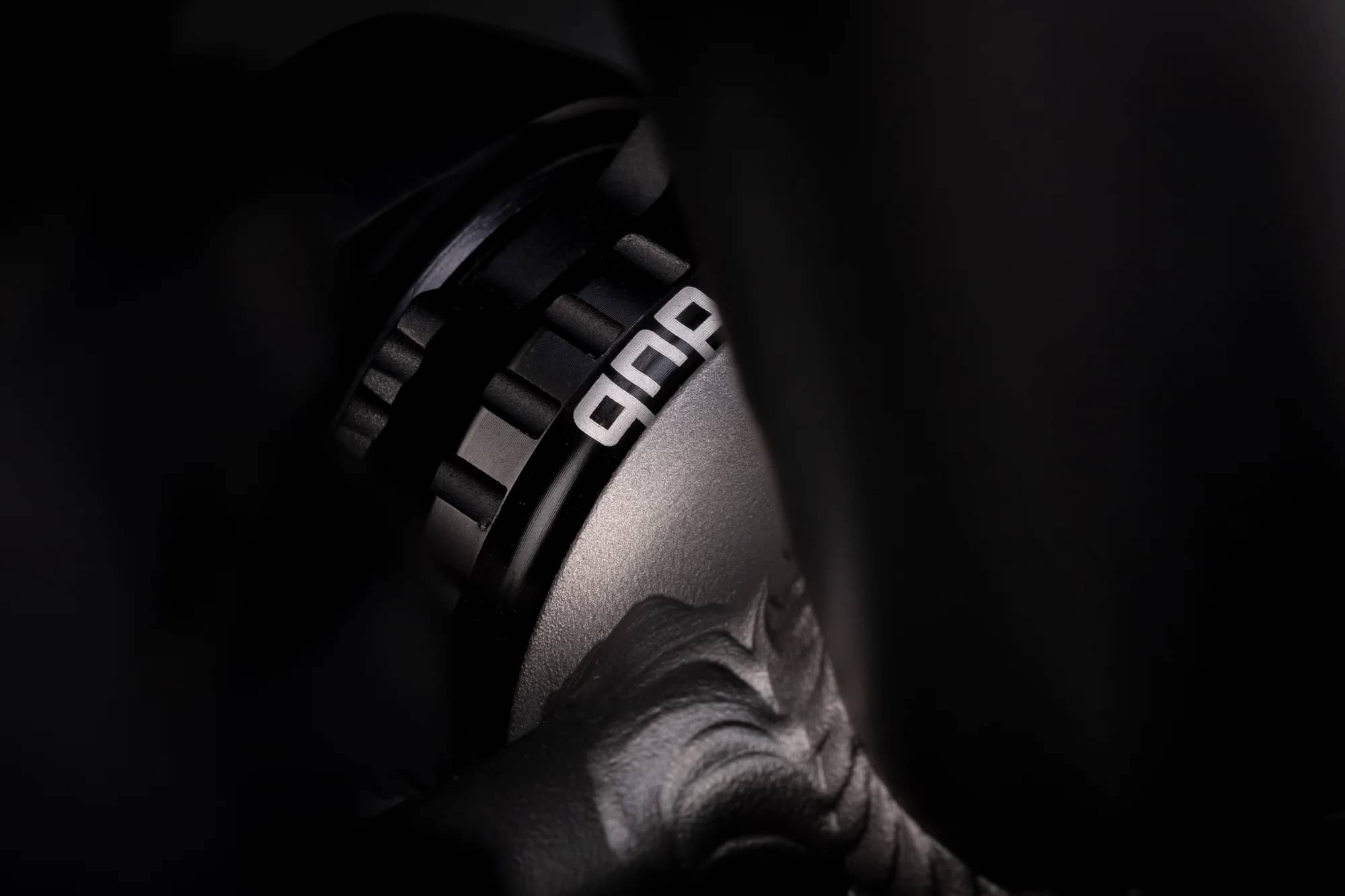

SRAM DUB, BSA, 73mm
Chain
SRAM GX Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, Micro Engagement 4 Pawl, XD Driver, 32 Hole
Rims
WTB ST i35 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis High Roller II TR 27.5"" x 2.8"" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Rekon TR 27.5"" x 2.8"" 60TPI, EXO Sidewall Protection, Rear
Brakes
Brakes
SRAM Guide G2 R, 4 Piston, 180mm Disc
Brake Levers
SRAM Guide G2 R, MMX
Cockpit
Stem
Whyte Gravity Stem, 35mm Extension
Handlebar
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 57E Orbit ZS, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom
Seatpost
Whyte Drop.it, 30.9mm, S/M 150mm, L/XL 170mm Travel, Paddle MMX Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 297.5 mm | 297.5 mm | 297.5 mm | 297.5 mm |
| Front Center | 739 mm | 769 mm | 794 mm | 824 mm |
| Rake | 36 mm | 35 mm | 33 mm | 34 mm |
| Trail | 130 mm | 131 mm | 133 mm | 132 mm |
| Stack | 630.2 mm | 639.2 mm | 650.2 mm | 657.2 mm |
| Reach | 433.2 mm | 460.2 mm | 482.2 mm | 507.2 mm |
| Top Tube Length | 606.2 mm | 633.2 mm | 660.2 mm | 688.2 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406.2 mm | 431 mm | 457 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1179 mm | 1209 mm | 1234 mm | 1264 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 789 mm | 806 mm | 823 mm | 840 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

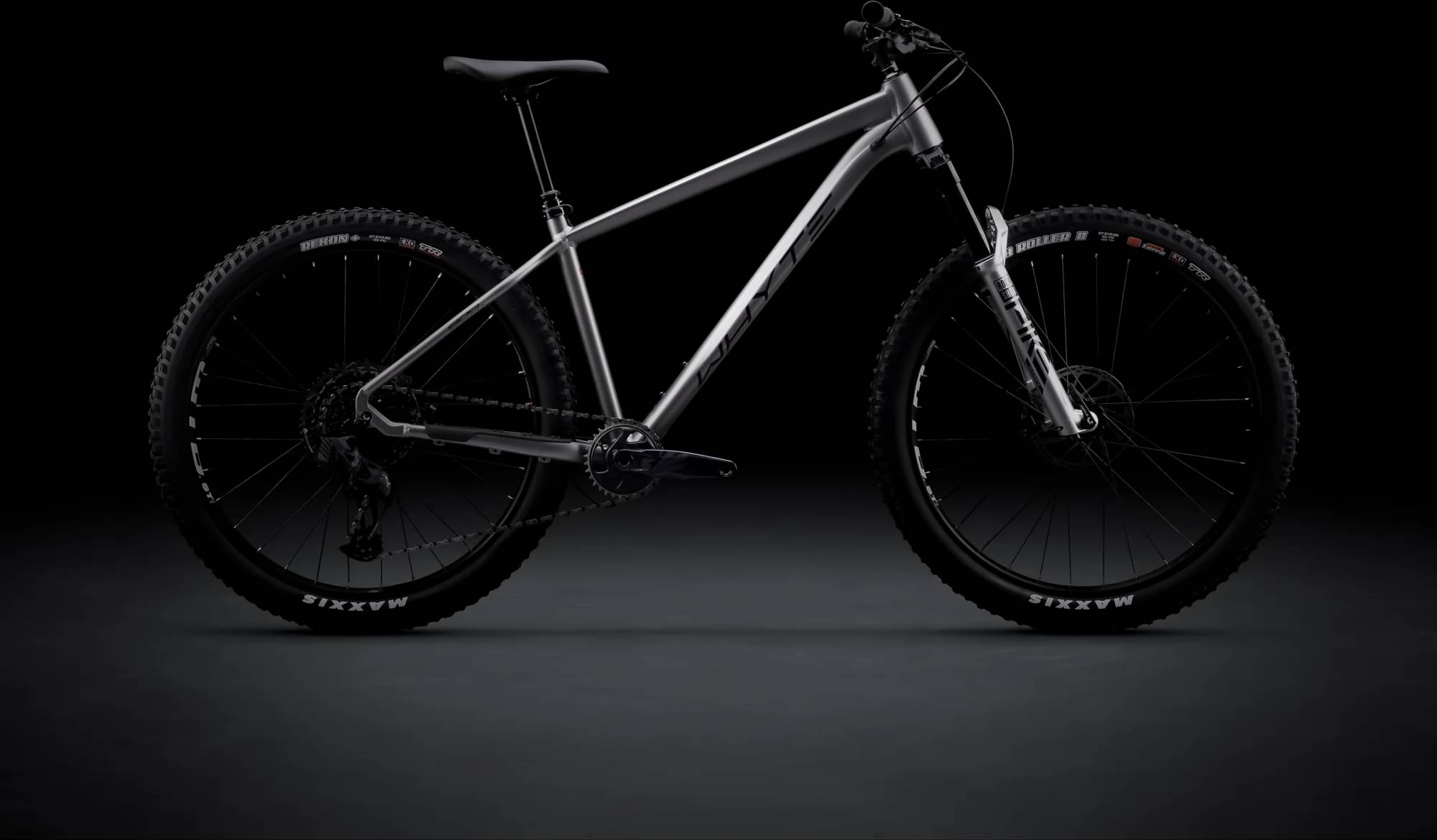

909 X is part of the Whyte 909 model. There are 9 bikes that carry this model name. Take a sneak peek at all Whyte 909 bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Whyte 909 X Enduro Hardtail 2023 has a starting price of 4262$. Whyte 909 X 2023 on the other hand is the most expensive at 4262$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4262$. Comparing the average cost of a Trail bike to this one, you will see that 909 X price is 54.31% higher.

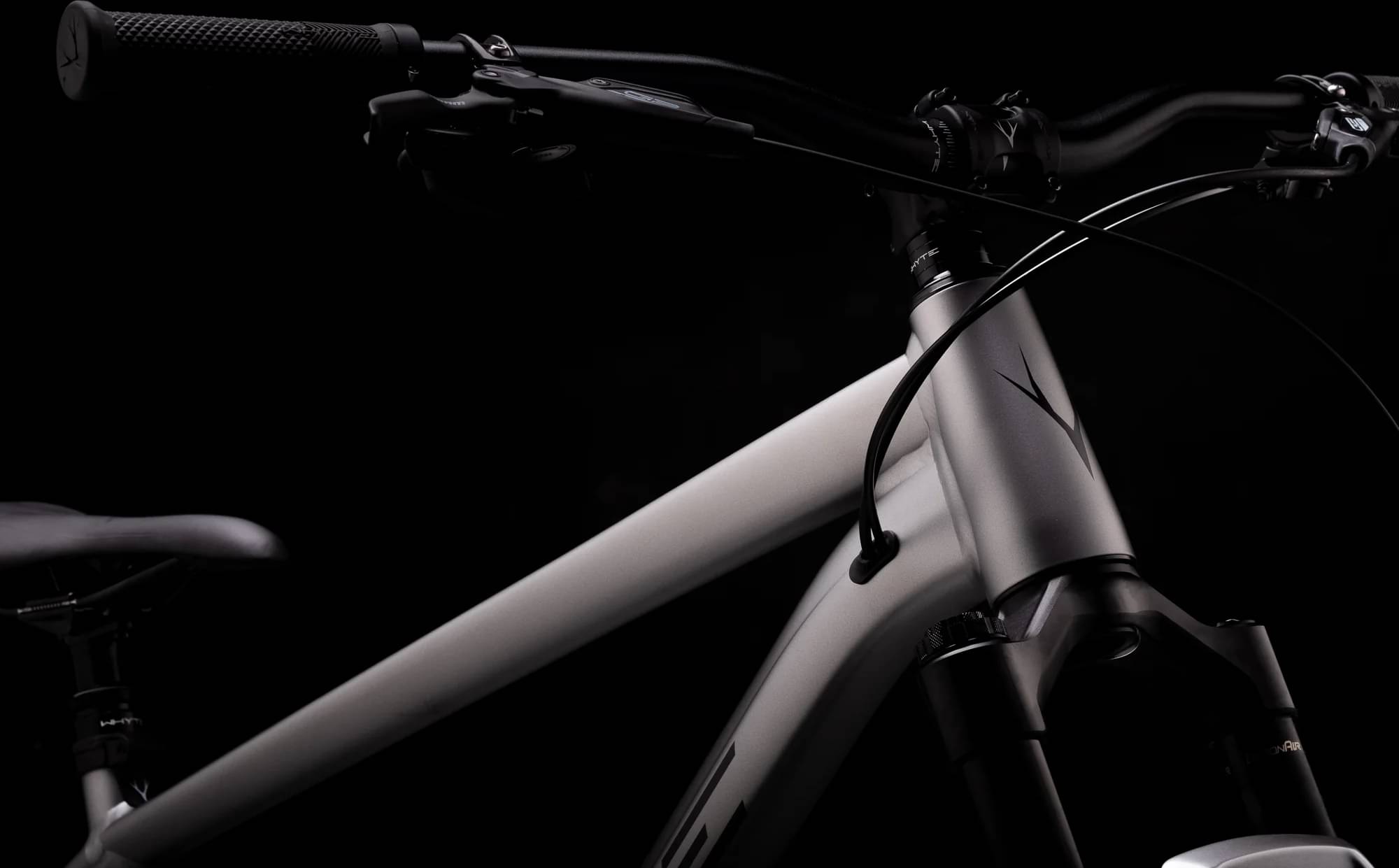

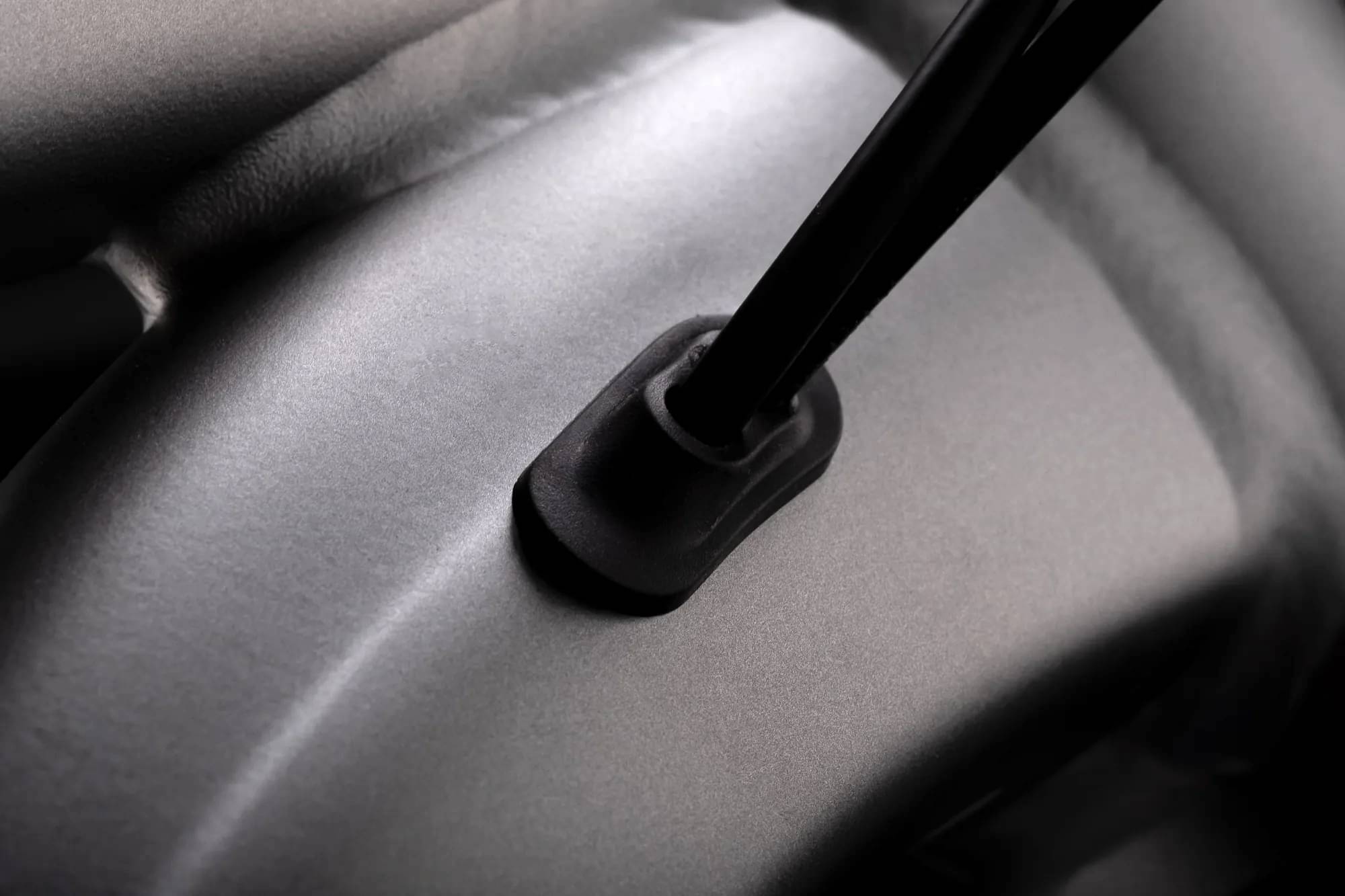

Internal Cable Routing

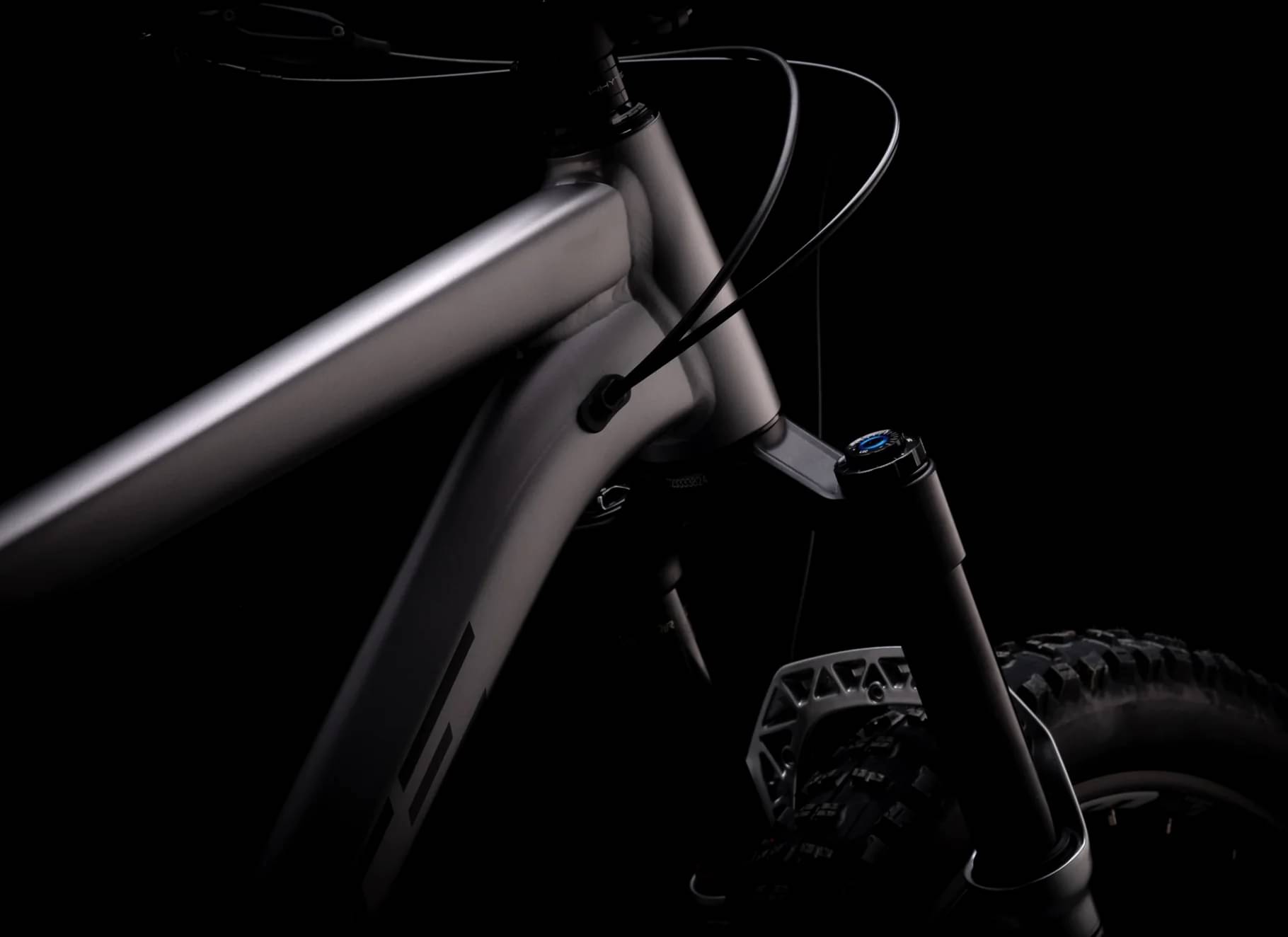

Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
909 X components
Fork

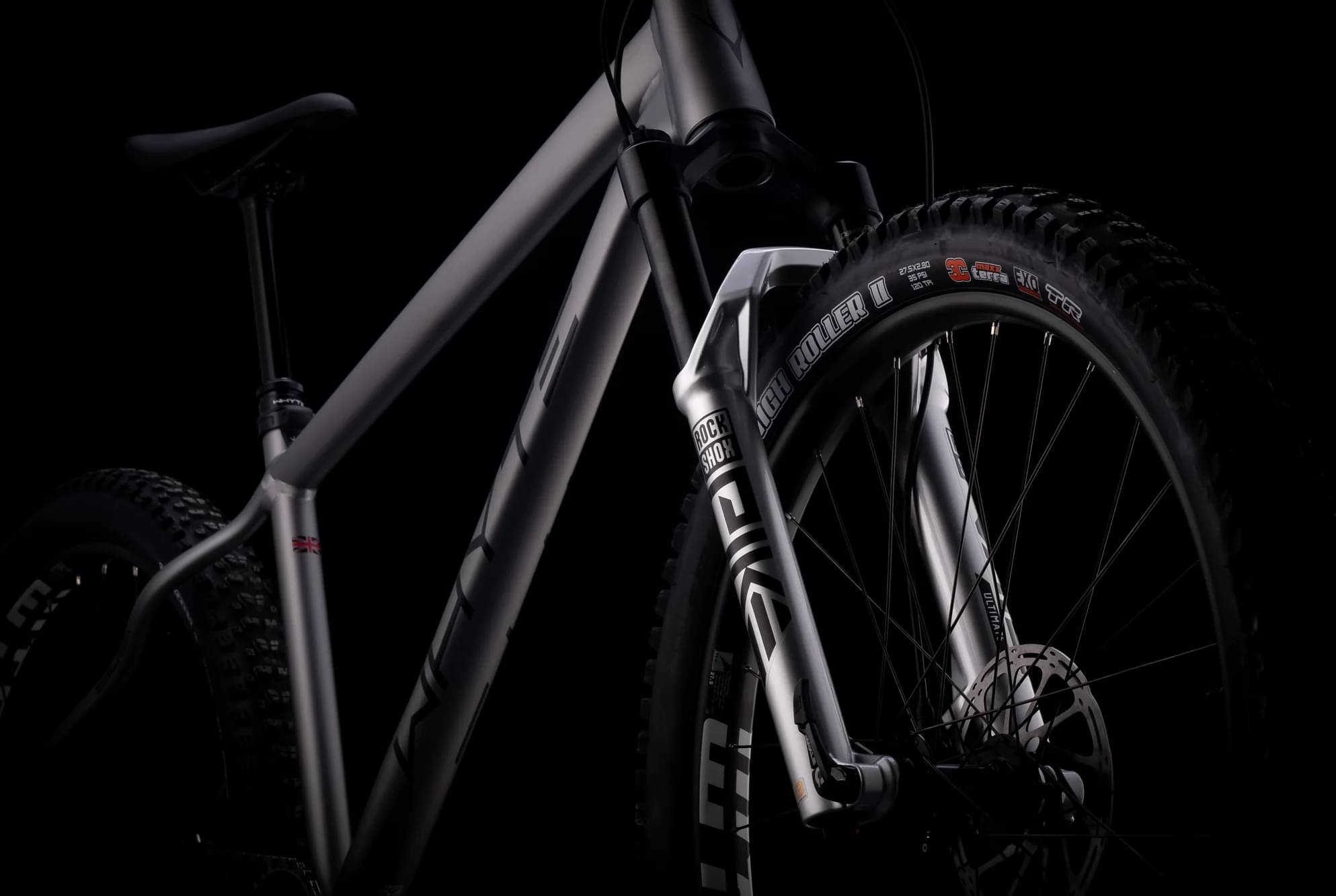

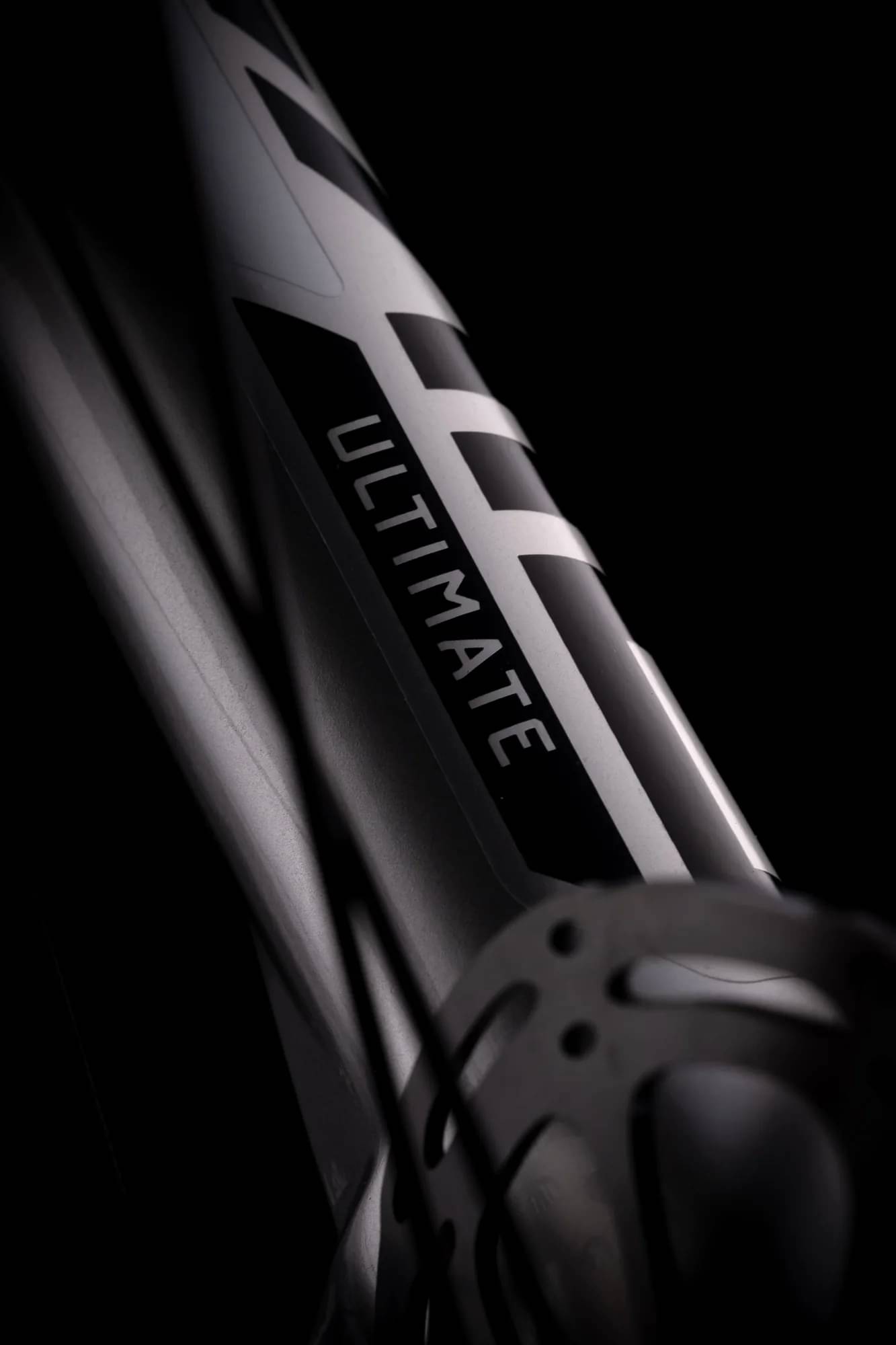

This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the 909 X model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 909 X comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Whyte 909 X includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
