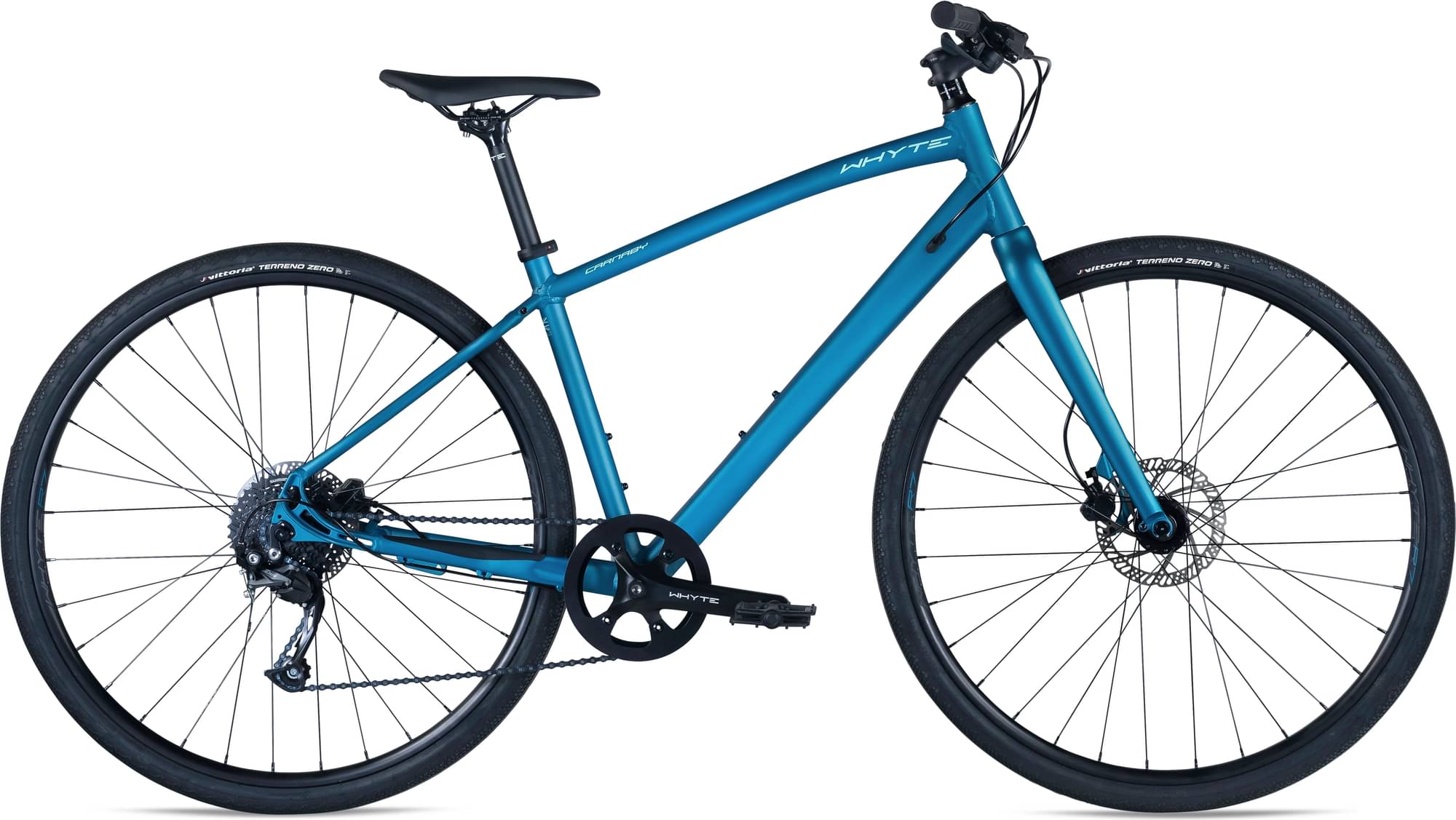

Whyte CARNABY 2022
2022 Urban
Estimate price |
1,016$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Altus -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
Suspension Fork
Whyte Straight Bladed 6061 Alloy, Forged Crown, Alloy Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000-SGS, 9 Speed
Front Derailleur
N/A
Shift Levers
Shimano Altus SL-M2010, 9 Speed
Cassette
Shimano CS-HG-200, 11-36, 9 Speed
Crank
Alloy, 40T Chainring with Alloy Chain Guard
Bottom Bracket
Square Interface, Cartridge Bearings, 68mm
Chain
Sunrace, 9 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rims
Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 32 Hole Front
Spokes
2.0mm, PG, Black Stainless, Brass Nipples
Tires
Vittoria Terreno Zero 700 x 37c, Puncture Protection
Brakes
Brakes
Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
Brake Levers
Tektro HD-M275
Cockpit
Stem
Whyte Alloy, S 45mm, M/L 60mm
Handlebar
Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide
Grips
Whyte Custom Dual Density Lock-on
Headset
FEIMIN H809C, Integrated Road, 1 1/8" Sealed Cartridge Bearings, 41mm Diameter
Seat
Saddle
Whyte Custom, Compact Fit
Seatpost
Whyte 6061 Alloy, 25mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266.5 mm | 266.5 mm | 266.5 mm |
| Stack | 545.7 mm | 568.7 mm | 586.7 mm |
| Reach | 388.7 mm | 397.7 mm | 413.7 mm |
| Top Tube Length | 541.6 mm | 567.3 mm | 593.5 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 393.7 mm | 431.8 mm | 469.9 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1043 mm | 1061 mm | 1072 mm |
| Standover Height | 726 mm | 729 mm | 761 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
CARNABY is a Whyte Carnaby model. Whyte launched 5 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Whyte Carnaby Commuter 2022 is the most economical model, with a starting price of 912$. Whyte Carnaby Commuter Bike 2022 on the other hand costs 912$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Whyte released this model in 2022, its price was 912$. Comparing the average cost of a Commuter bike to this one, you will see that CARNABY price is 19.69% more expensive.
Average weight for Commuter bikes
Commuter bikes have an average weight of 14.29 kg (31.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Whyte CARNABY it’s weighing 11 kg (24.25 lbs). At this weight, is much lighter than average. To sum up, it’s 29.91% lighter than the average weight of Commuter bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
CARNABY components
Fork material
CARNABY has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Whyte CARNABY 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CARNABY comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Whyte CARNABY bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
