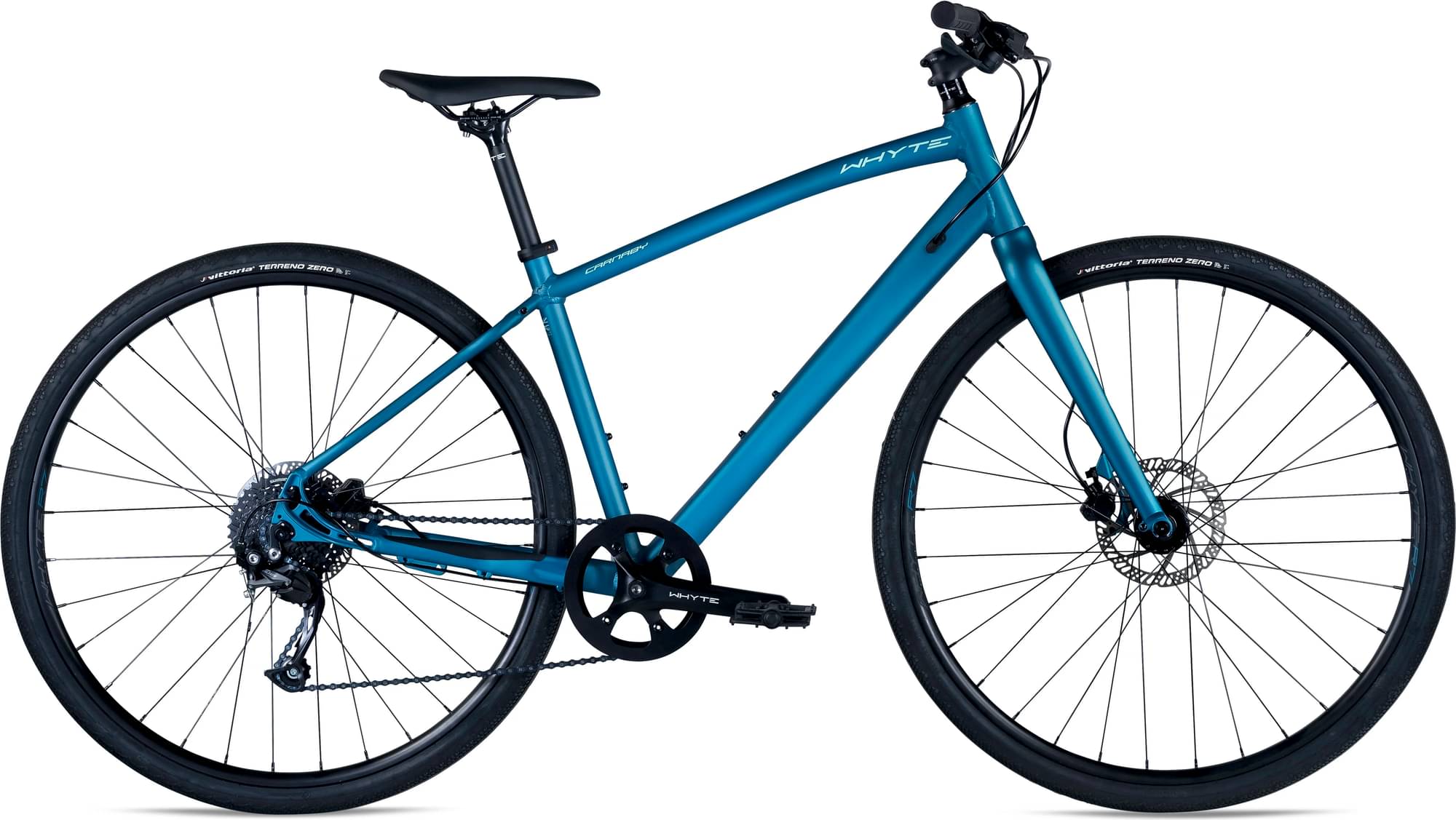

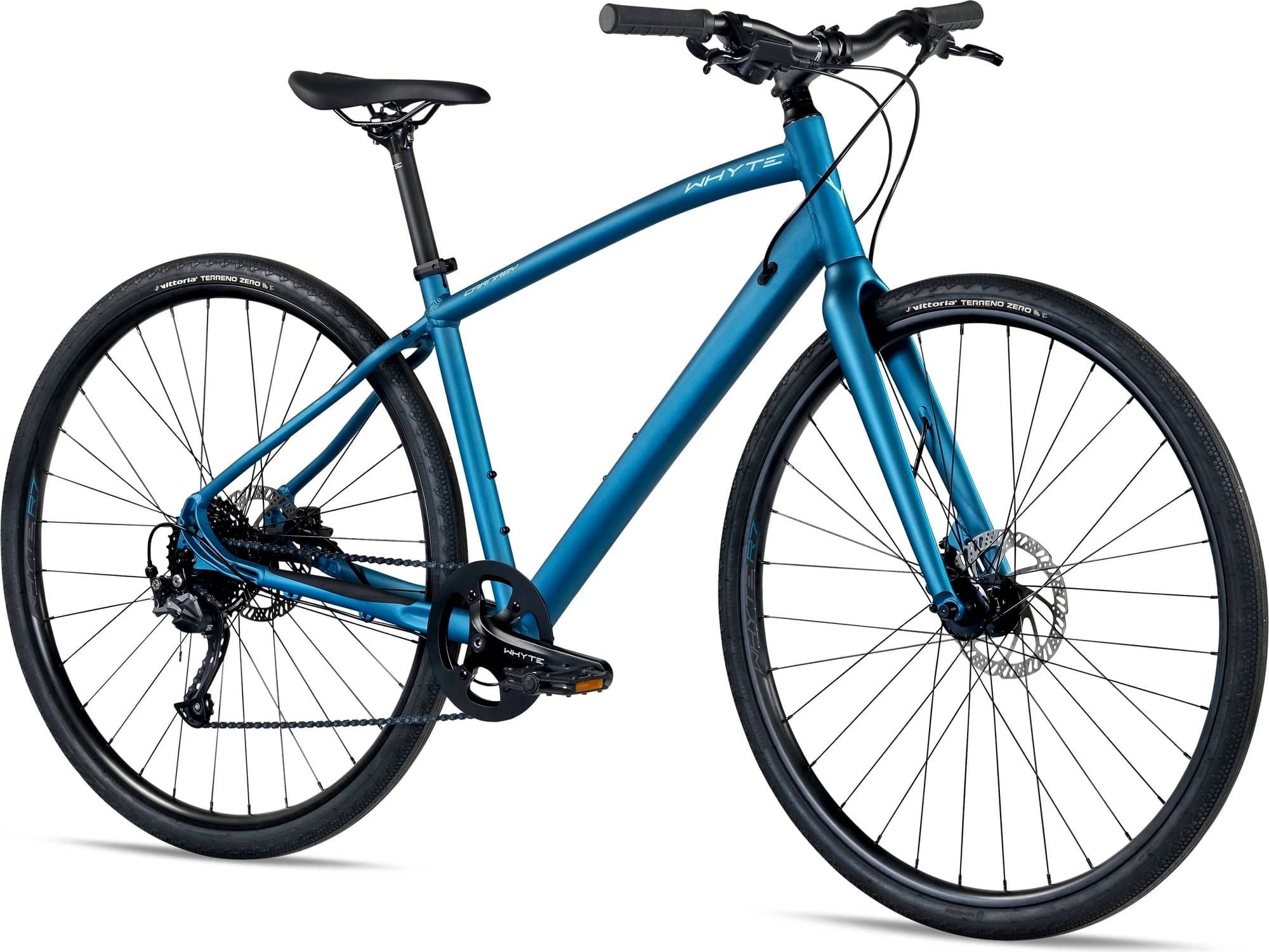

Whyte Carnaby 2024
2024 Urban
Estimate price |
1,016$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
Suspension Fork
Whyte Straight Bladed 6061 Alloy, Forged Crown, Alloy Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000-SGS, 9 Speed
Front Derailleur
N/A
Shift Levers
Shimano Altus SL-M2010, 9 Speed
Cassette
Shimano CS-HG-200, 11-36, 9 Speed
Crank
Alloy, 40T Chainring with Alloy Chain Guard
Bottom Bracket
Square Interface, Cartridge Bearings, 68mm
Chain
Sunrace, 9 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rims
Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 32 Hole Front
Spokes
2.0mm, PG, Black Stainless, Brass Nipples
Tires
Vittoria Terreno Zero 700 x 37c, Puncture Protection
Brakes
Brakes
Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
Brake Levers
Tektro HD-M275
Cockpit
Stem
Whyte Alloy, S 45mm, M/L 60mm
Handlebar
Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide
Grips
Whyte Custom Dual Density Lock-on
Headset
FEIMIN H809C, Integrated Road, 1 1/8" Sealed Cartridge Bearings, 41mm Diameter
Seat
Saddle
Whyte Custom, Compact Fit
Seatpost
Whyte 6061 Alloy, 25mm Offset, 27.2mm x 350mm, 2 Bolt Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.397 mm | 1.423 mm | 1.412 mm |
| Bottom Bracket Height | 266.5 mm | 266.5 mm | 266.5 mm |
| Stack | 552 mm | 575 mm | 593 mm |
| Reach | 395 mm | 404 mm | 420 mm |
| Top Tube Length | 547.9 mm | 573.6 mm | 599.8 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 393.7 mm | 431.8 mm | 469.9 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1049 mm | 1067 mm | 1078 mm |
| Standover Height | 732 mm | 735 mm | 767 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Carnaby is a Whyte Carnaby model. Whyte launched 6 bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Whyte Carnaby Commuter Bike 2024 has a starting price of 913$. Whyte Carnaby 2024 on the other hand is the most expensive at 913$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Whyte released this model in 2024, its price was 913$. Comparing the average cost of a Commuter bike to this one, you will see that Carnaby price is 19.82% higher.
Commuter bikes average weight
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 11 kg (24.25 lbs), the Carnaby model is much lighter than average. In other words, this model is 29.91% lighter than the average Commuter bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Carnaby components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Carnaby bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
