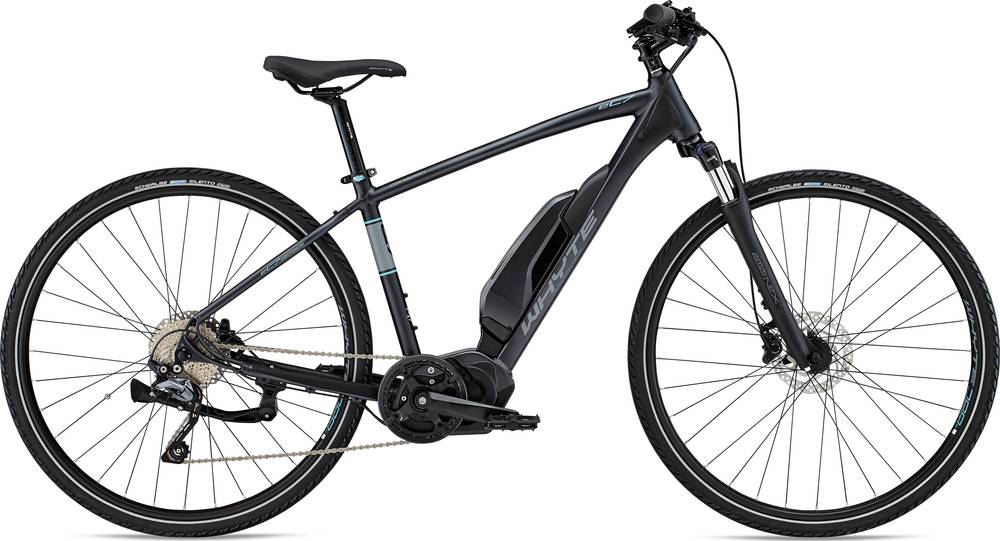

Whyte CONISTON v1 2019
2019 E-bike
Estimate price |
3,145$
Weight | 19.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Battery 36 volts, 11.6ah, 418wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand Mount
Suspension Fork
SR Suntour NCX-E25 HLO, 63mm Travel, Tapered Steerer Tube, Coil Spring and Hydro Lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano RD-T6000, Deore, SGS 10-Speed, Shadow
Front Derailleur
N/A
Shift Levers
Shimano SL-M6000, Deore, 10 Speed with STEPS SC-E6010 Display
Cassette
Shimano CS-HG500, 11-34, 10 Speed
Crank
Lasco square taper for Shimano STEPS, 38T with Double Sided Chain Guard, 10 Speed
Bottom Bracket
STEPS Drive Unit E-5000 with Speed Sensor and Magnet
Chain
KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rims
Whyte T-23 x 700c, 32 hole, with eyelets
Spokes
2.0mm, Black Stainless with Brass Nipples
Tires
Schwalbe Road Cruiser TOUR, 700x47c, - Green Compound - K-Guard Puncture Protection
Brakes
Brakes
Shimano MT400, 160mm Disc
Brake Levers
Shimano M400
Cockpit
Stem
Whyte Alloy 6061, S 60mm, M 70mm, L 80mm
Handlebar
Whyte Alloy 6061, 31.8mm, 20mm Rise, 620mm Wide
Grips
Whyte Custom Dual Density Lock-on
Headset
FSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1.8” Caged Upper Bearings
Seat
Saddle
Whyte Custom, Triple Panel Design
Seatpost
Whyte 6061 Alloy, 15mm Offset, 30.9mm, 2 Bolt Clamp
Motor & Battery
Battery
36 volts, 11.6ah, 418wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm |
| Top Tube Length | 606.4 mm | 631.4 mm | 656.4 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 406.4 mm | 444.5 mm | 495.3 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1158 mm | 1178 mm | 1198 mm |
| Standover Height | 755 mm | 782 mm | 812 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
CONISTON v1 belongs to the Whyte E Coniston model. There are 7 e-bikes that carry this model name. Take a sneak peek at all Whyte E Coniston e-bikes models from 2019, by clicking here.
Model range prices
Whyte CONISTON LADIES v1 2019 is the cheapest e-bike model and costs 2796$. Whyte CONISTON v1 2019 is the most expensive one and costs 2859$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2019 and its price was 2859$. Doing a quick comparison, we notice that CONISTON v1 price is 15.28% higher than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 19.6 kg (43.21 lbs), the CONISTON v1 model is much lighter than average. To sum up, it’s 21.38% lighter than the average weight of Hybrid e-bikes.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the CONISTON v1 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CONISTON v1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Whyte CONISTON v1 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
