Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle AXS, EX1 -
Suspension Full -
Motor mid-drive -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Suspension Fork
Fox Float 38, Performance 29", 160mm Travel, 44mm Offset with Grip Damper, 3pos Adjust, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle
Rear Shock
Fox Float Performance DPS, Evol LV, Custom Tuned for Whyte, 3Pos Adjustable Compression and Rebound Damping
Drivetrain
Rear Derailleur
SRAM GX1 AXS Lunar with Battery Protector
Front Derailleur
N/A
Shift Levers
SRAM GX AXS Eagle, 2 Button MMX
Cassette
SRAM XG-1275 Eagle, 10-50, 12 Speed
Crank
SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
Bottom Bracket
N/A
Chain
SRAM GX Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
Rear Hub
Alloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rims
WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Assegai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 27.5" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
Brakes
Brakes
SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
Brake Levers
SRAM Code R, MMX
Cockpit
Stem
Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Handlebar
Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Grips
Whyte Lock-On Enduro Grip
Headset
FSA No. 55/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel, High-Line Ball Socket Remote Lever
Motor & Battery
Motor
Alloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Stack | 634.5 mm | 648.1 mm | 661.6 mm |
| Reach | 458 mm | 486 mm | 513 mm |
| Top Tube Length | 610.3 mm | 643.4 mm | 675.5 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.8 ° | 64.8 ° | 64.8 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1237 mm | 1272 mm | 1305 mm |
| Standover Height | 774 mm | 776 mm | 779 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

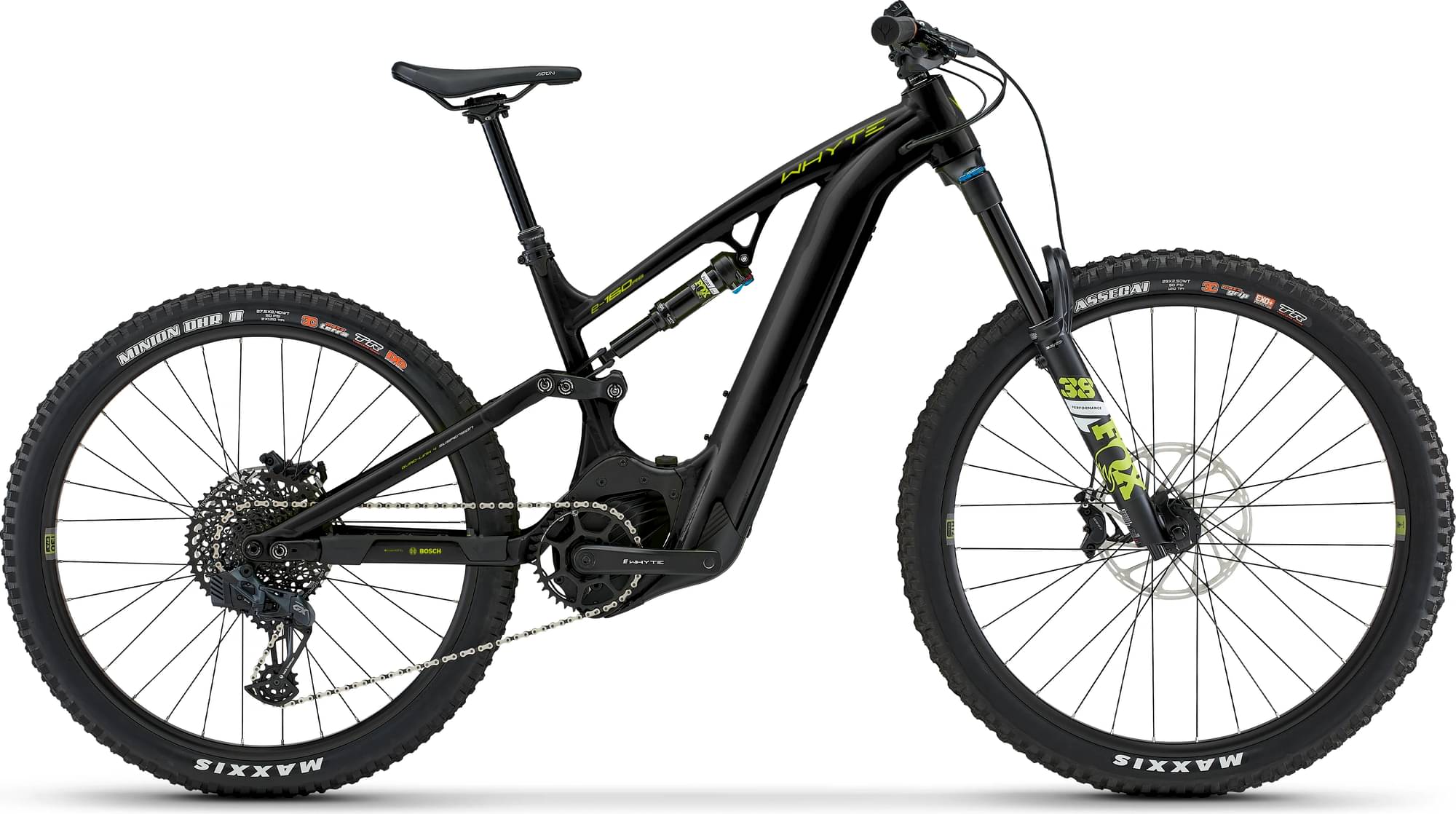

E-160 RS MX is a Whyte E E 160 model. Whyte released 14 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Whyte E-160 S 29er 2023 is the most economical model, with a starting price of 7784$. Whyte E-160 RSX 2023 on the other hand costs 9730$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Whyte E-160 RS MX price was 9000$. Doing a quick comparison, we notice that E-160 RS MX price is 88.09% higher than the average cost of an Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Whyte E-160 RS MX 2023 e-bike is equipped with the Fox Performance Float 38 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the E-160 RS MX model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-160 RS MX has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
