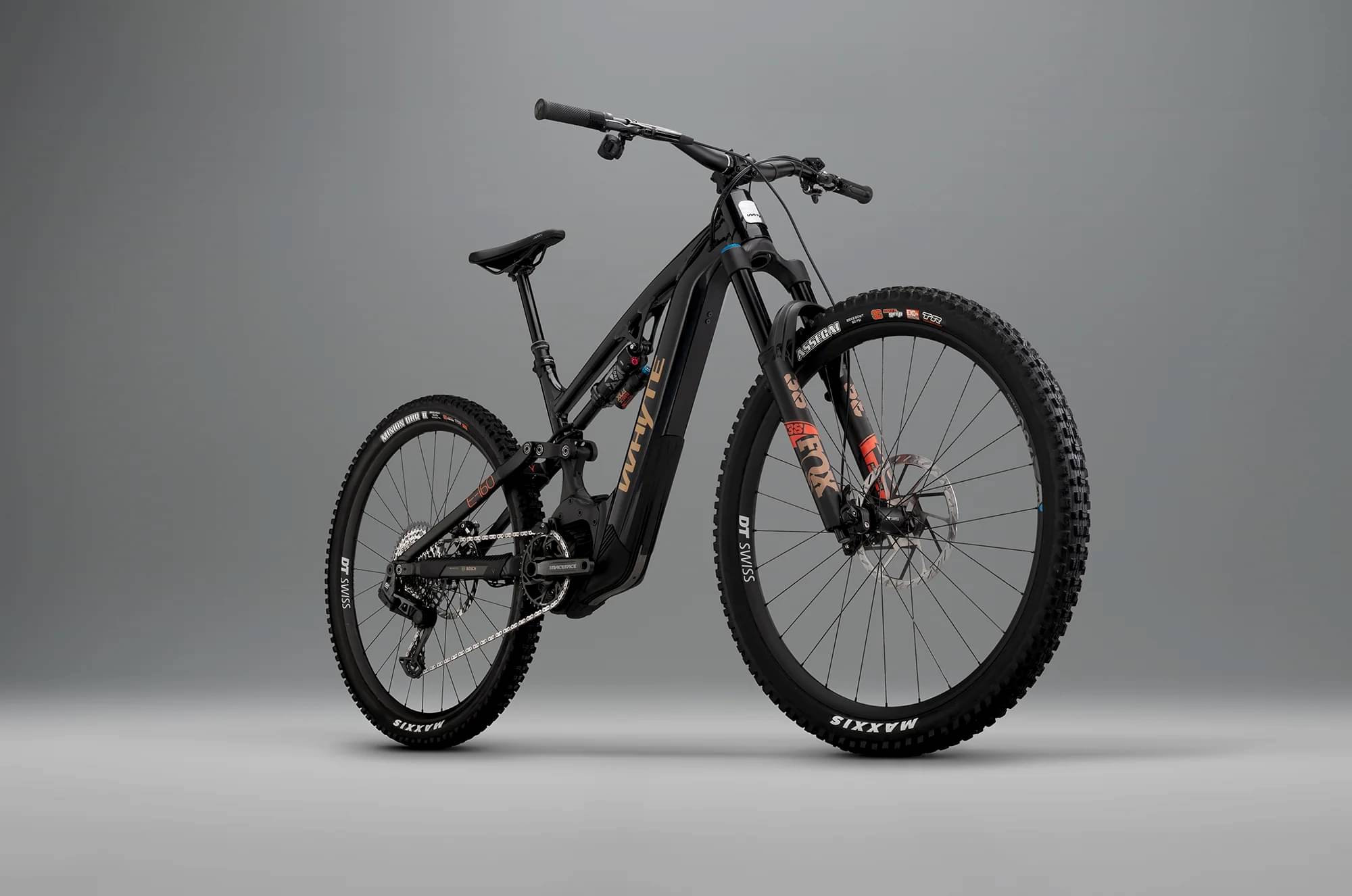

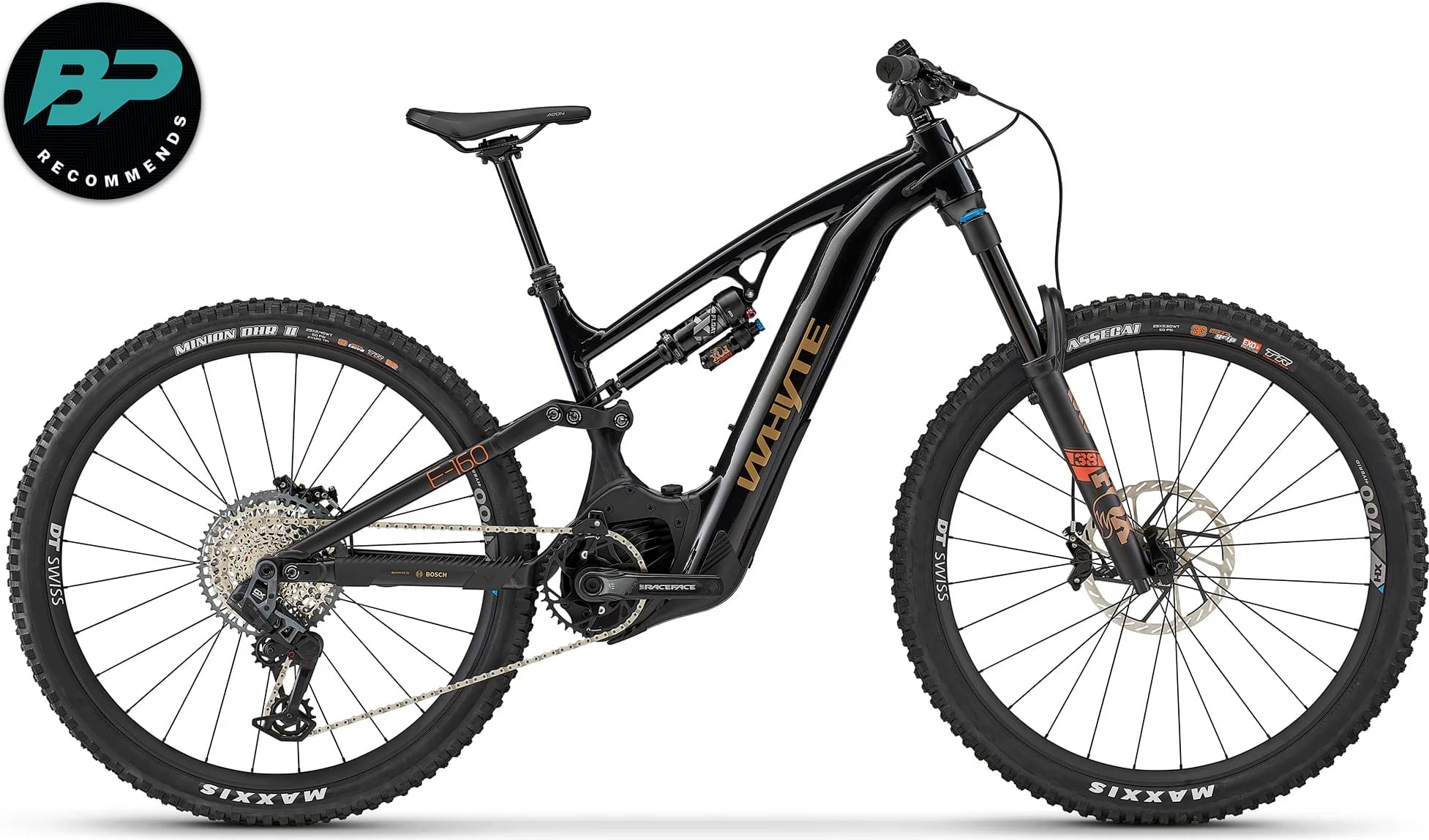

Whyte E-160 RSX 2024
2024 E-bike
Estimate price |
9,366$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

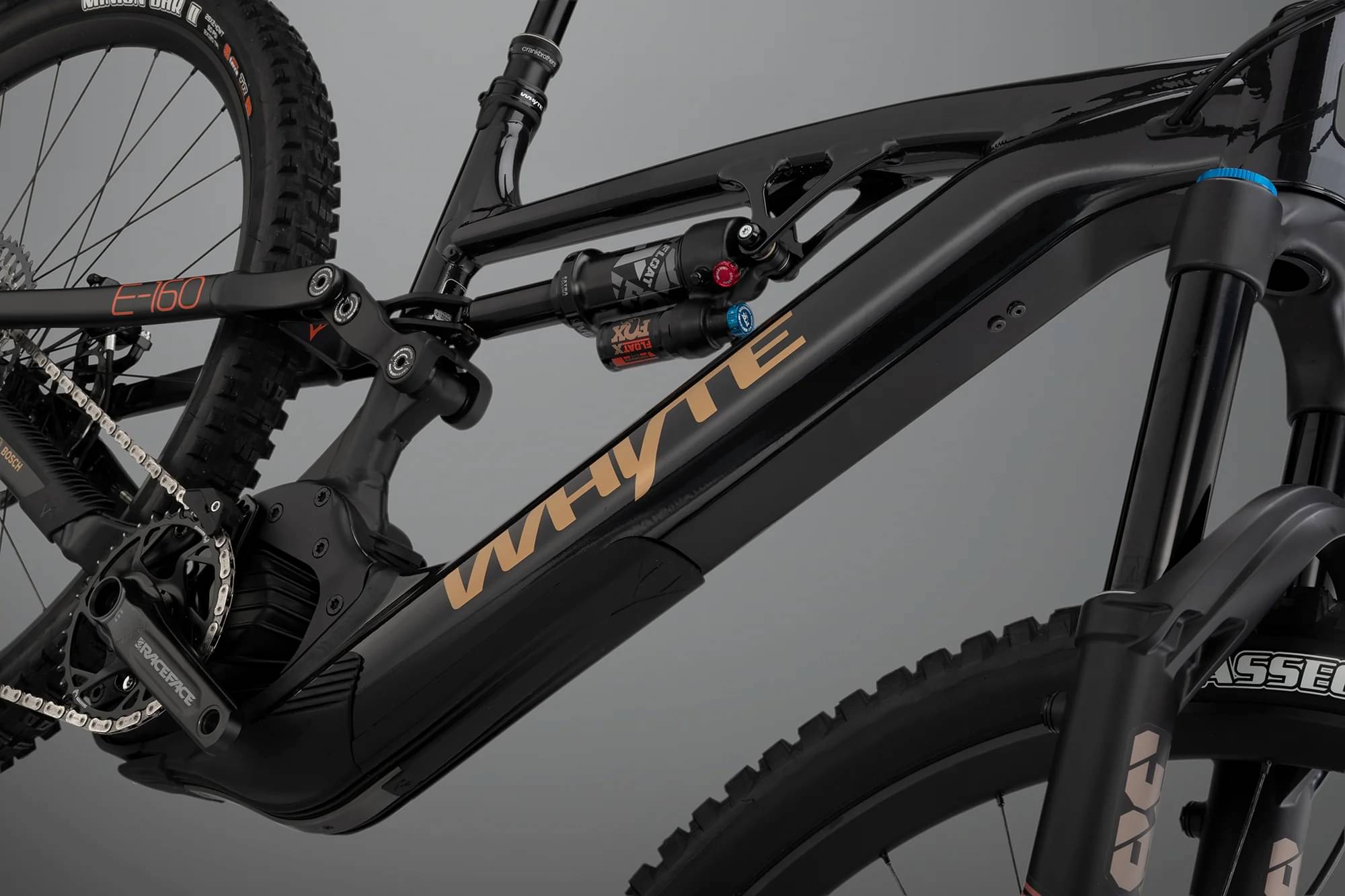

Frame
Frame
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
Suspension Fork
Fox Float 38 Performance Elite 29in, 160mm travel, 44mm offset with Grip 2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle

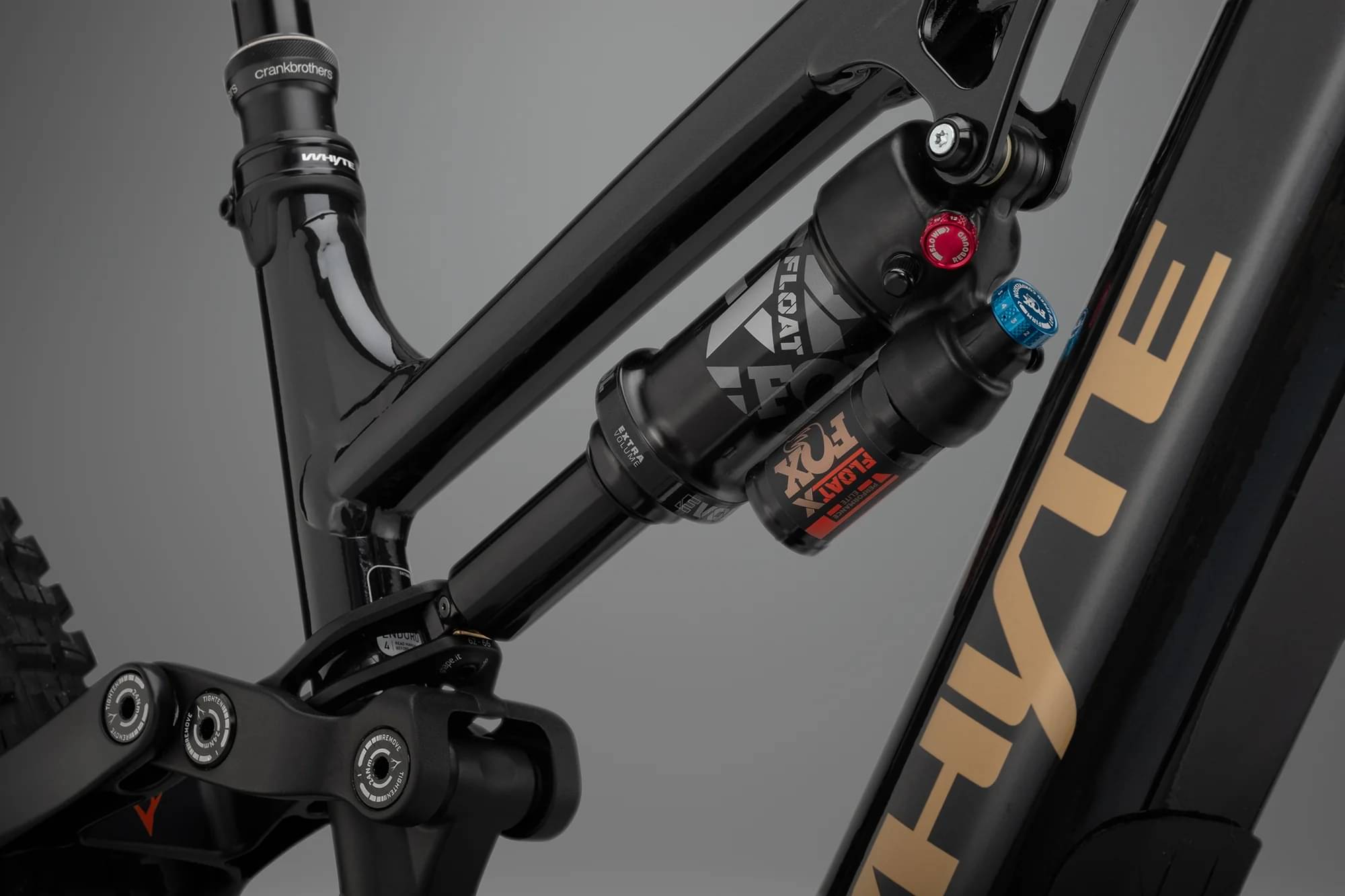

Rear Shock
Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte
Drivetrain
Rear Derailleur
SRAM GX T-Type AXS, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, two button MMX, 12 speed
Cassette
SRAM XS-1275 Eagle, 10-52T, 12 speed
Crank
Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black
Bottom Bracket
N/A
Chain
SRAM GX T-Type Eagle, 12 speed
Pedals
None
Wheels
Front Hub
DT Swiss 350, 15mm x 110mm Boost spacing, six bolt
Rear Hub
DT Swiss 350, 24T hardened steel ratchet, six bolt, 12mm x 148mm Boost spacing
Rims
DT HX 1700 alloy, hooked 30mm internal width
Spokes
DT Swiss Hybrid straight pull
Tires
Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear
Brakes
Brakes
SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor
Brake Levers
SRAM Code RSC, MMX
Cockpit
Stem
Whyte Enduro, 35mm extension, 35mm bar bore
Handlebar
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Grips
Whyte Enduro lock-on
Headset
FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings
Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Crank Brothers HighLine 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.336 mm | 1.291 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 791 mm | 825 mm | 859 mm |
| Rake | 49 mm | 49 mm | 49 mm |
| Trail | 122 mm | 122 mm | 122 mm |
| Stack | 631.5 mm | 645.1 mm | 658.6 mm |
| Reach | 455 mm | 483 mm | 510 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.8 ° | 64.8 ° | 64.8 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1234 mm | 1269 mm | 1302 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm |
| Standover Height | 771 mm | 773 mm | 776 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
E-160 RSX belongs to the Whyte E E 160 model. 17 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Whyte E-160 S 2024 is the most economical model, with a starting price of 6697$. Whyte E-160 RSX 2024 on the other hand costs 8524$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 8524$. Comparing this to the average Enduro e-bike price, we see that the price is 78.14% more expensive.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
E-160 RSX weighs 26.3 kg (57.98 lbs) and is considerably heavier than the average. In short, the average Enduro e-bike weight is 12.3% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
E-160 RSX components
Fork
The E-160 RSX comes factory-installed with the Fox Performance Elite Float 38 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The E-160 RSX 2024 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Whyte E-160 RSX has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Whyte E-160 RSX e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the E-160 RSX. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
