Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork RockShox ZEB
-
Groupset XT -
Suspension Full -
Motor mid-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Up Link and 12mm X 148mm Boost Dropouts
Suspension Fork
RockShox ZEB 29", 160mm Travel, 44mm Offset, DebonAir, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Rear Shock
RockShox Deluxe Select R, Fast Black Coating, Adjustable Rebound
Drivetrain

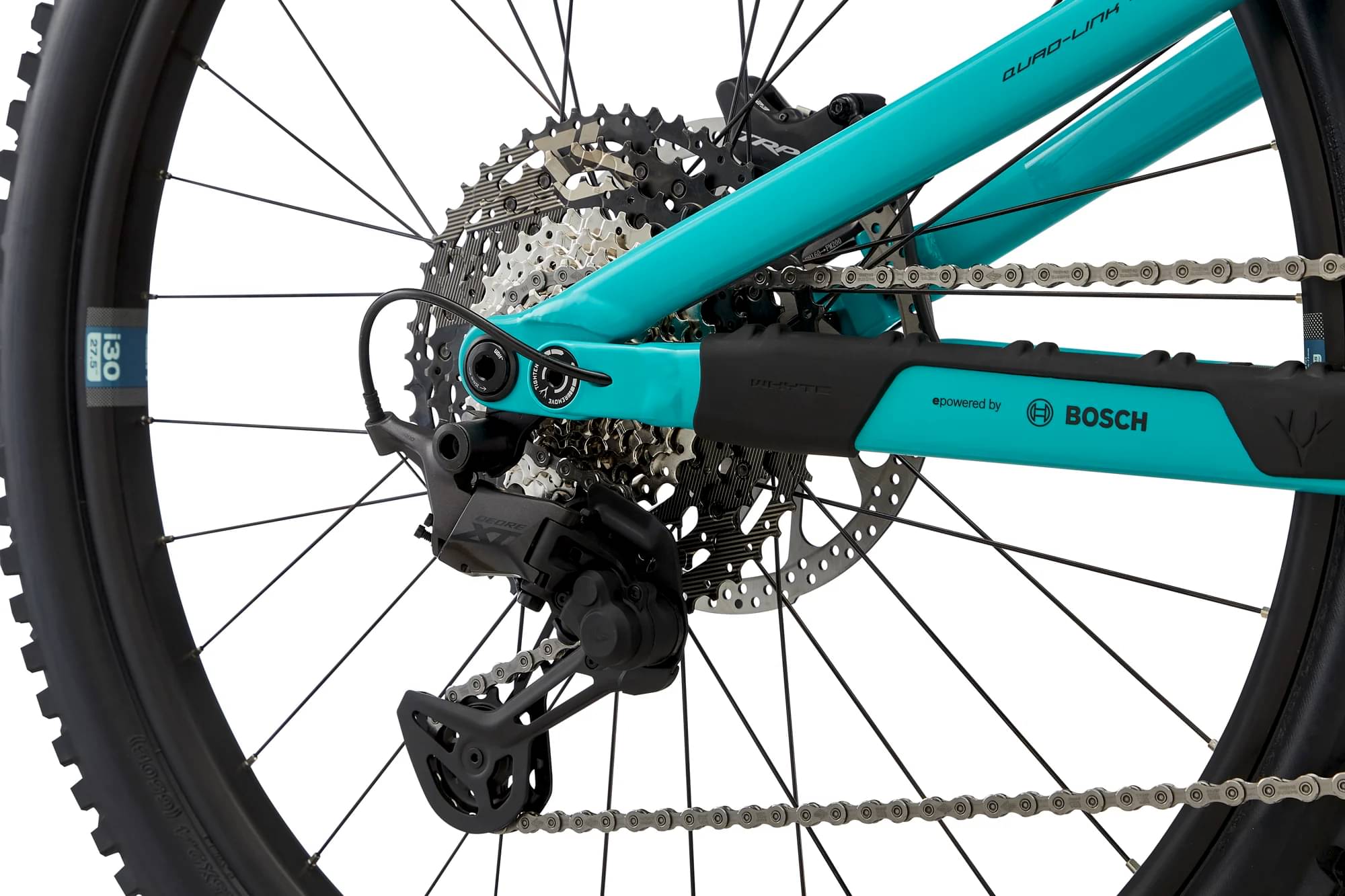

Rear Derailleur
Shimano M8130 Deore XT, Shadow Plus, direct mount
Front Derailleur
N/A

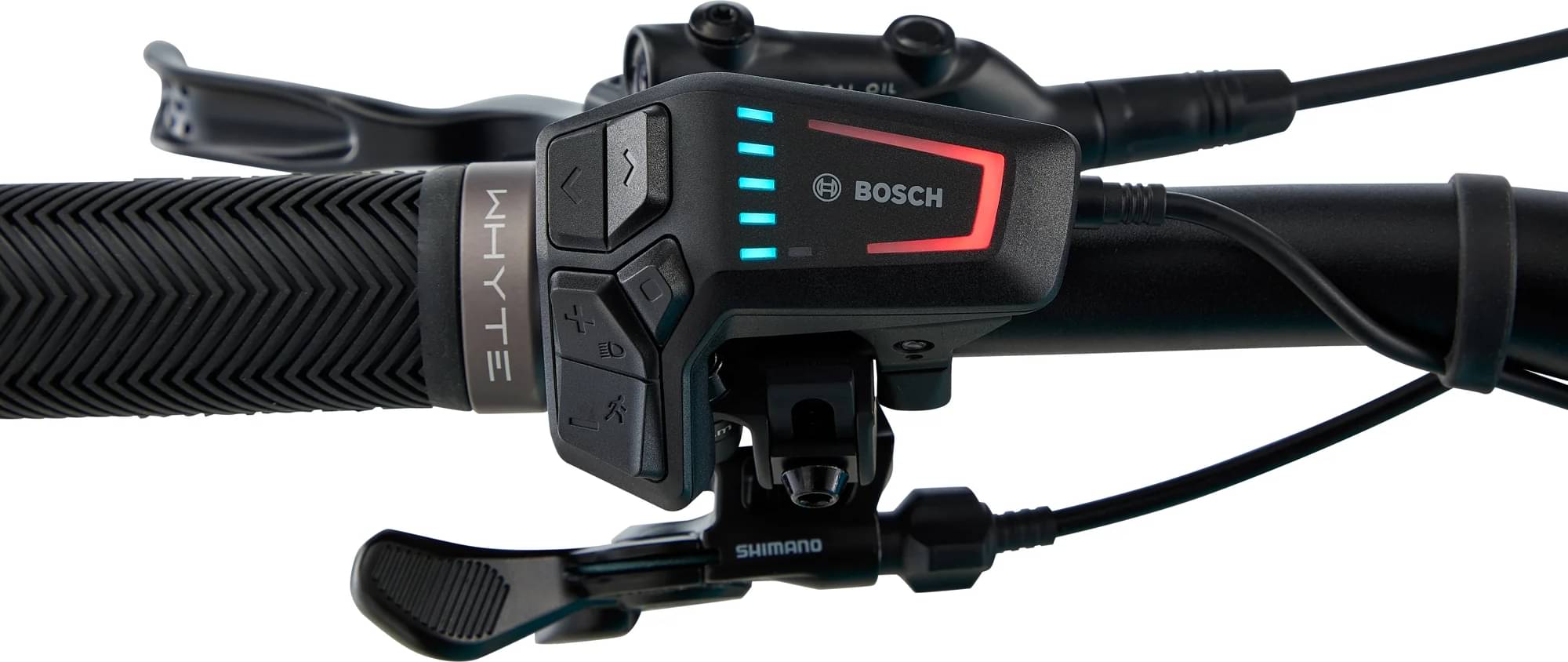

Shift Levers
Shimano M8130 Deore XT 11 speed
Cassette
Shimano CS-LG600, 11 speed, 11-50T
Crank
Whyte, Forged Alloy, 165mm, direct mount 36T
Bottom Bracket
N/A
Chain
Shimano CN-LG500, 11 speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rims
WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Assigai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 27.5" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
Brakes
Brakes
Shimano Deore BL-M6100 4 piston caliper, with 220mm 6 bolt rotor

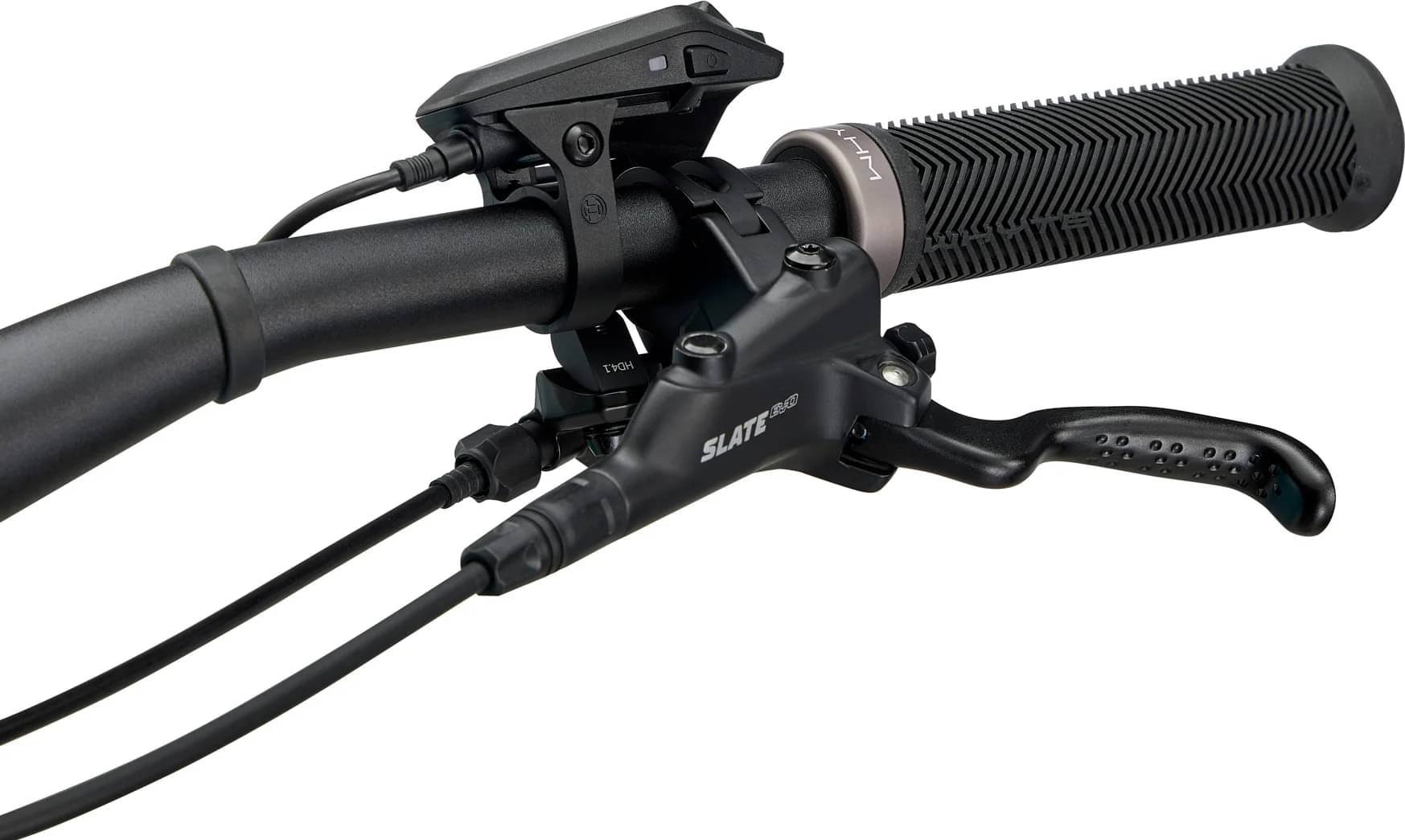

Brake Levers
TRP Trail Evo
Cockpit
Stem
Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Handlebar
Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Grips
Whyte Lock-On Enduro Grip
Headset
FSA No. 55R/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Dual Density, Triple Panel Design
Seatpost
Whyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, Paddle Remote Lever
Motor & Battery
Motor
Alloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Stack | 634.5 mm | 648.1 mm | 661.6 mm |
| Reach | 458 mm | 486 mm | 513 mm |
| Top Tube Length | 610.3 mm | 643.4 mm | 675.5 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.8 ° | 64.8 ° | 64.8 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1237 mm | 1272 mm | 1305 mm |
| Standover Height | 774 mm | 776 mm | 779 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
E-160 S MX is a Whyte E E 160 model. There are 14 e-bikes that carry this model name. Take a sneak peek at all Whyte E E 160 e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Whyte E-160 S 29er 2023 has a starting price of 7784$. Whyte E-160 RSX 2023 on the other hand is the most expensive at 9730$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Whyte released this model in 2023, its price was 7784$. In conclusion, this e-bike price is 62.68% higher than the price of the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-160 S MX components
Fork
This e-bike has the RockShox ZEB fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the E-160 S MX e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Whyte E-160 S MX e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.

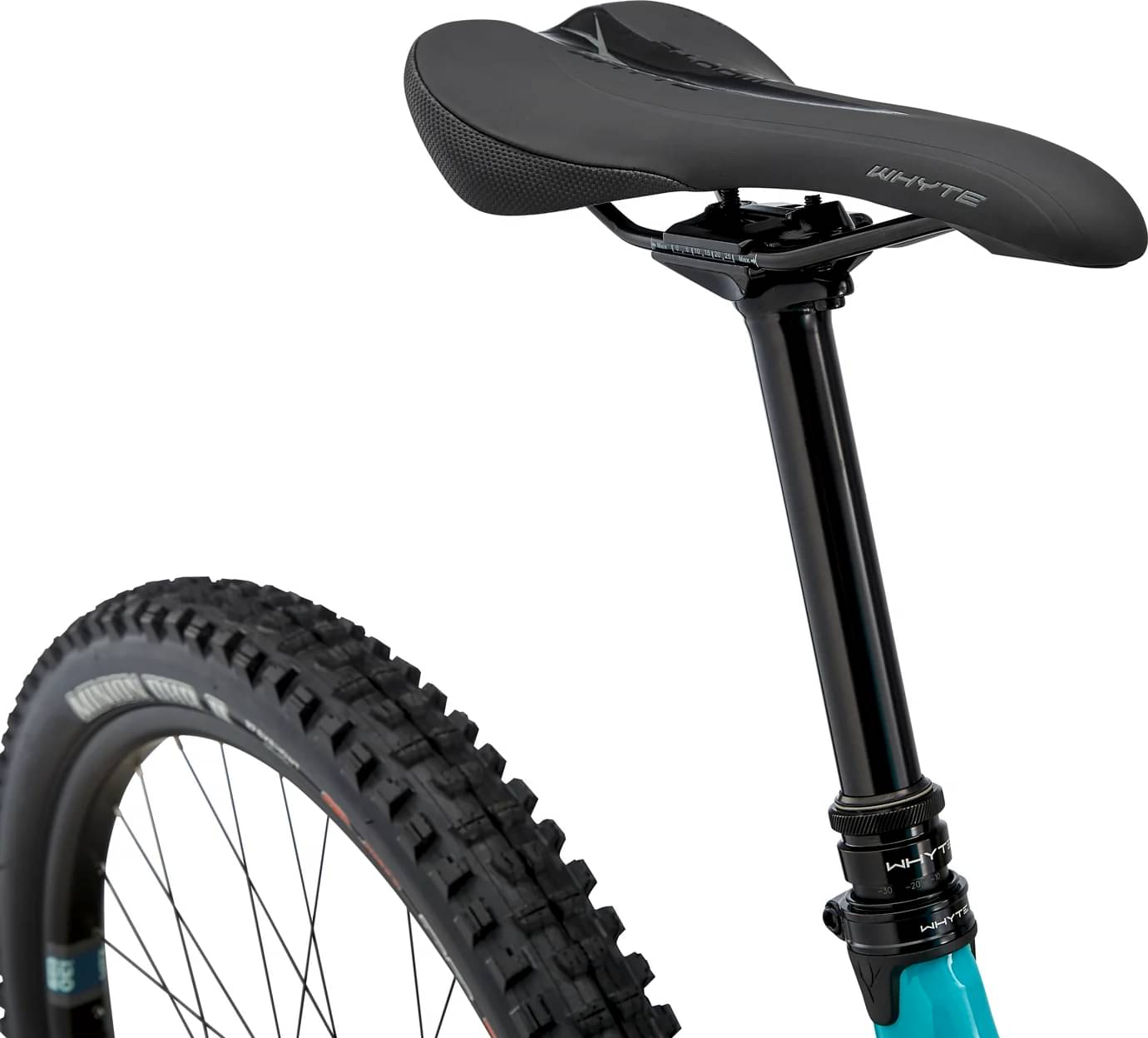

Dropper post
The Whyte model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
