Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Fork RockShox ZEB
-
Groupset GX Eagle, EX1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Suspension Fork
RockShox ZEB 27.5", 160mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Rear Shock
RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound, 2 position compression adjustment
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX-E, Eagle, Single Click, MMX, 12 Speed
Cassette
SRAM PG-1210 Eagle, 11-50, 12 Speed
Crank
SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
Bottom Bracket
N/A
Chain
SRAM GX Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rims
WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 27.5" x 2.4" 2x120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
Brakes
Brakes
SRAM Guide RE, 4 Piston with Sintered Metal Pads, 220mm Disc
Brake Levers
SRAM Guide RE, MMX
Cockpit
Stem
Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Handlebar
Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Whyte drop.it Adjust, 30.9mm, XS/S 120-150mm Travel, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
Motor & Battery
Motor
Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
Battery
Bosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| Stack | 600.4 mm | 609.6 mm | 622.3 mm | 633.2 mm | 645 mm |
| Reach | 412.3 mm | 432.3 mm | 457.3 mm | 482.3 mm | 507.3 mm |
| Top Tube Length | 560 mm | 581.5 mm | 611.4 mm | 640.6 mm | 670.1 mm |
| Seat Tube Angle | 75.4 ° | 75.2 ° | 75 ° | 74.8 ° | 74.6 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 112 mm | 116 mm | 130 mm | 142 mm | 155 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1188 mm | 1199 mm | 1230 mm | 1260 mm | 1291 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 794 mm | 809 mm | 824 mm | 824 mm | 826 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

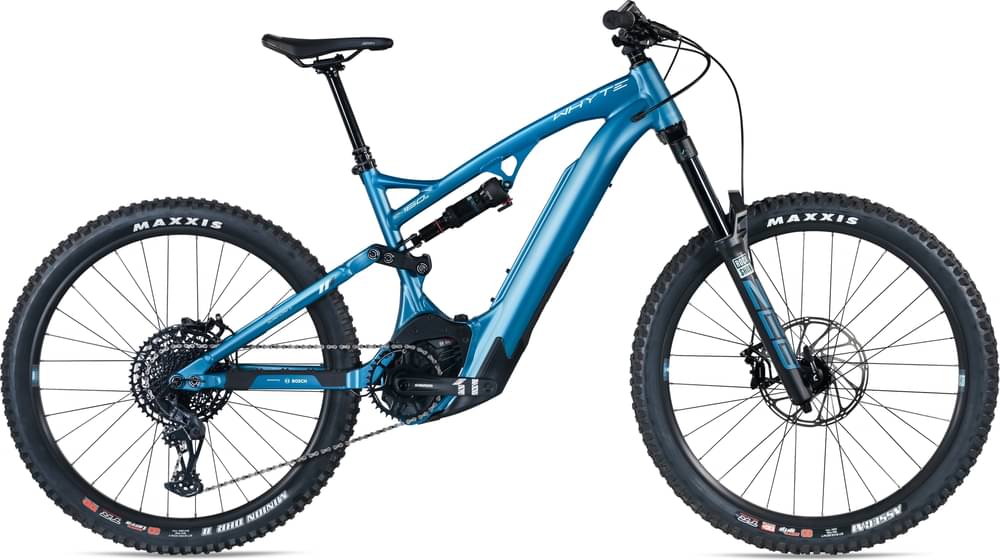

E-160 S v2 is a Whyte E E 160 model. There are 14 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Whyte E-160 S v2 2022 is the cheapest e-bike model and costs 6689$. Whyte E-160 RS 2022 is the most expensive one and costs 8211$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 6689$. Doing a quick comparison, we notice that E-160 S v2 price is 39.79% higher than the average cost of an Enduro e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The E-160 S v2 comes factory-installed with the RockShox ZEB fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Whyte E-160 S v2 2022, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-160 S v2 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
E-160 S v2 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Whyte E-160 S v2 comes with a dropper post. Therefore, climbing or descending will be a breeze.
