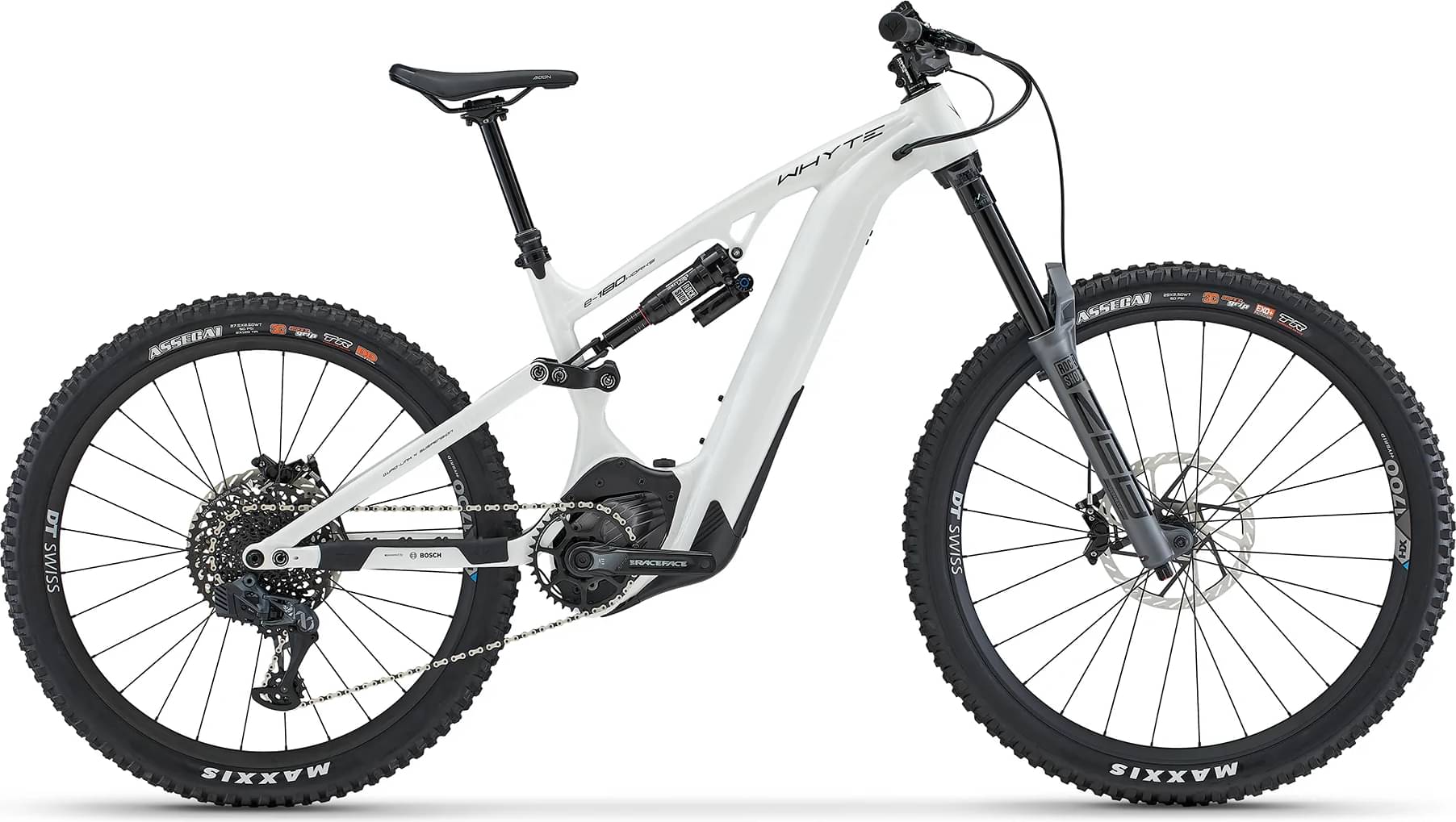

Whyte E-180 Works MX Super 2023
2023 E-bike
Estimate price |
13,277$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 180mm -
Fork RockShox ZEB Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Suspension Fork
RockShox ZEB Ultimate 29”, 180mm Travel, 44mm Offset, DebonAir, Charger 3 RC2 Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Stealth

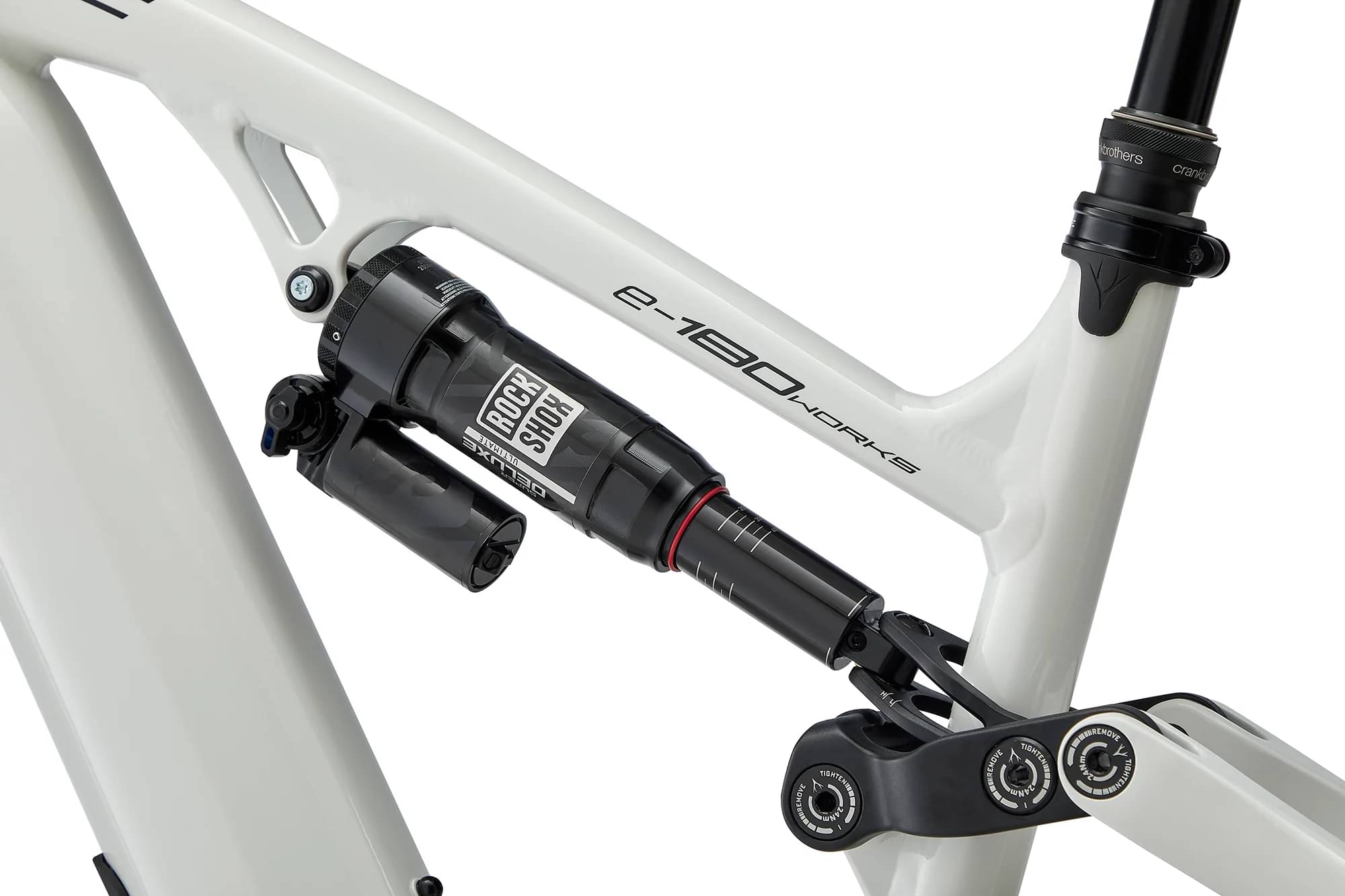

Rear Shock
RockShox Super Deluxe Ultimate RCT, Air, Fast Black Coating, Adjustable Rebound, low speed compression adjustment and tuneable DebonAir
Drivetrain

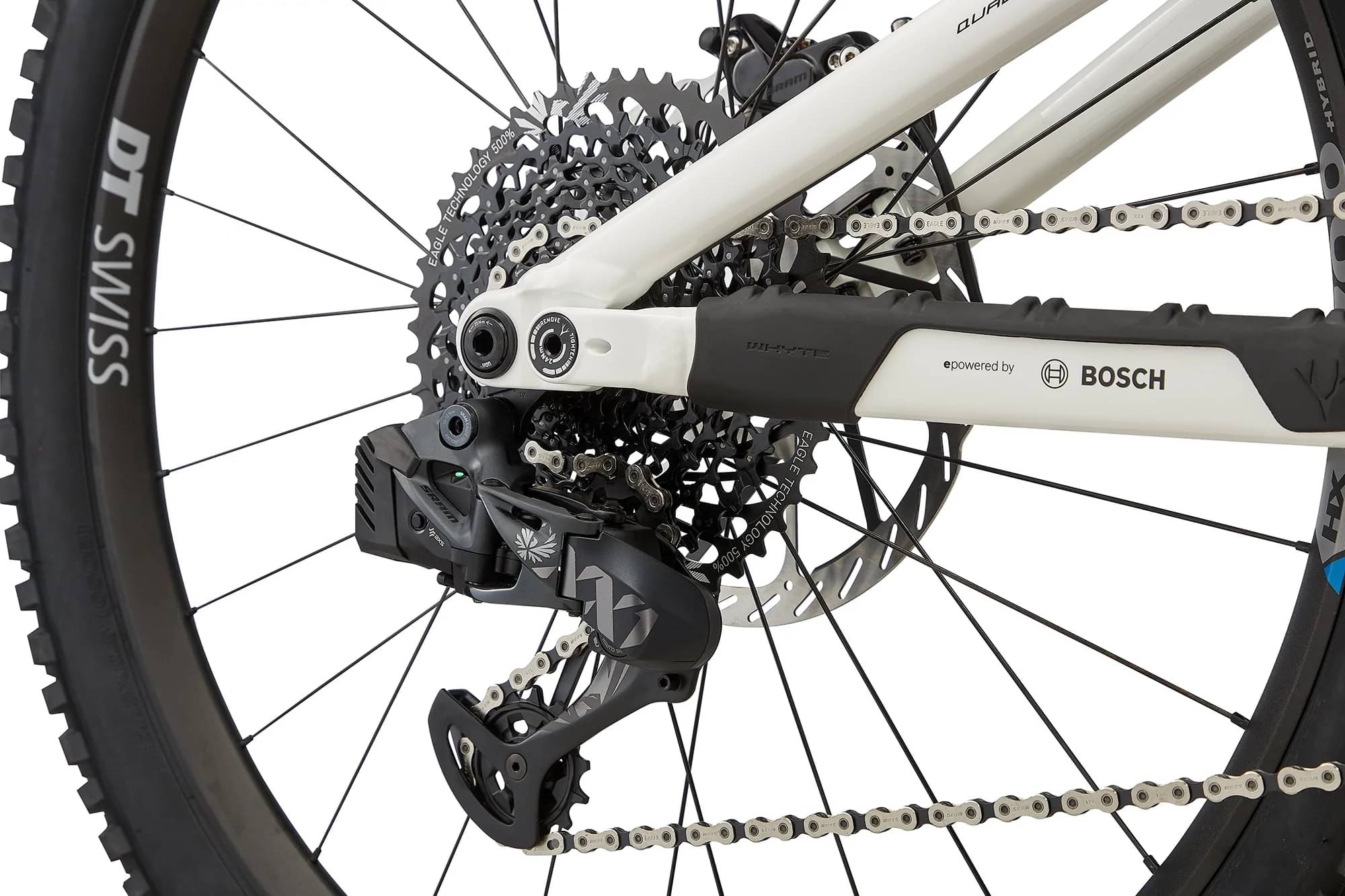

Rear Derailleur
SRAM XX1 Eagle AXS 12 Speed, with Battery Protector
Front Derailleur
N/A
Shift Levers
SRAM AXS Rocker Paddle, MMX, Eagle 12 Speed
Cassette
SRAM XG-1275 Eagle, 10-50, 12 Speed
Crank
Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black
Bottom Bracket
N/A
Chain
SRAM GX Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Hope Pro 4, Stainless Steel Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
Rear Hub
Hope Pro 4, Stainless Steel Bearings, 12mm x 148mm Boost, XD Driver, 32 Hole
Rims
Hope Fortus 30, Tubless Ready, 32 Hole
Spokes
Black Sapim Race stainless steel double butted spokes built with silver brass nipples
Tires
Maxxis Assigai WT, TR, 29"" x 2.5"" 120TPI, EXO + Sidewall Protection, 3C MaxxGrip, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5"" x 2.5"" 120TPI, Double Down Casing, 3C Maxx Grip, Dual Compound, Rear

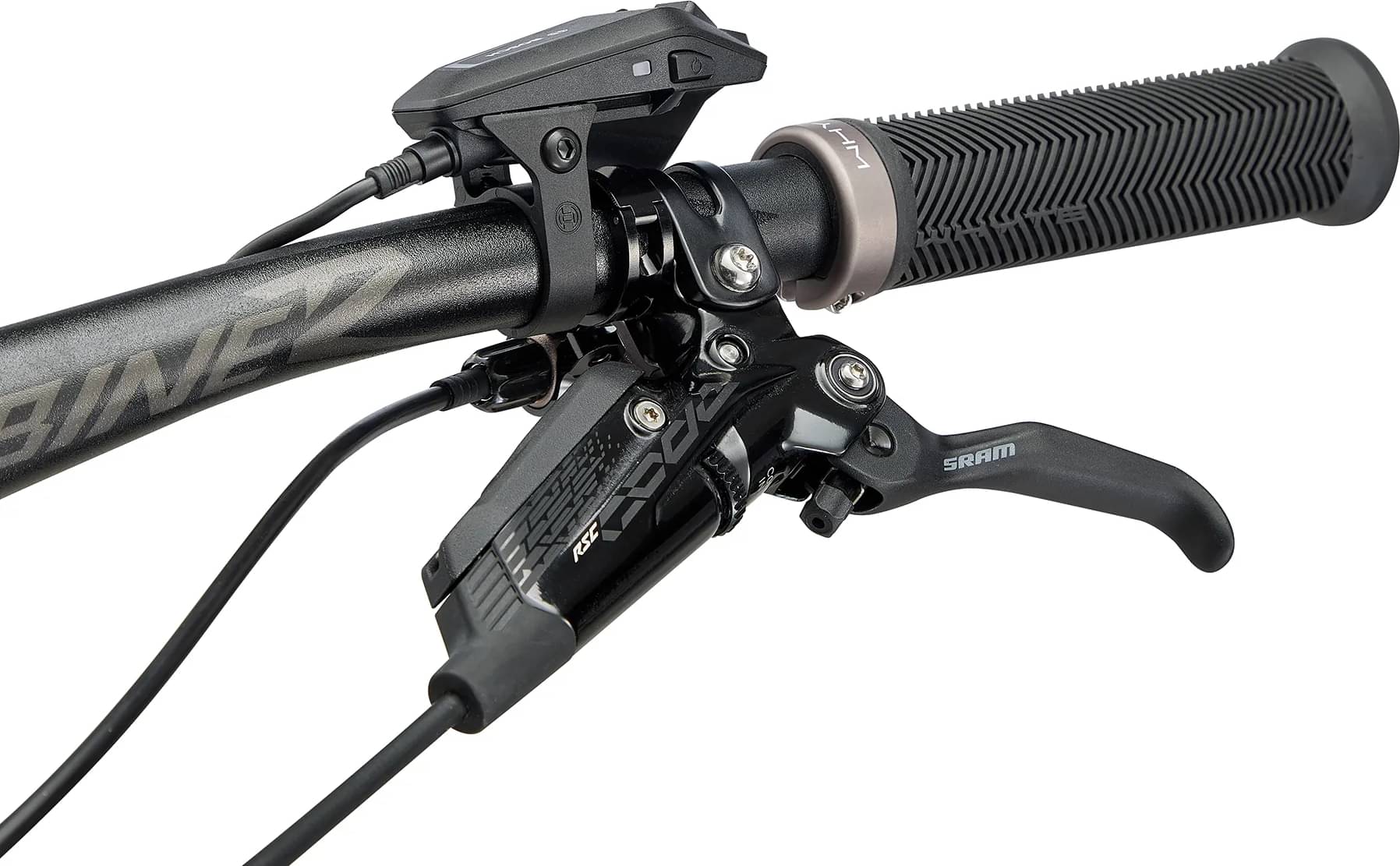

Brakes
Brakes
SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
Brake Levers
SRAM Code RSC, MMX
Cockpit
Stem
Race Face Atlas, 35mm Bar Bore, 35mm Extension
Handlebar
Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 55R/35 Orbit 1.5 ZS, 1.8"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings

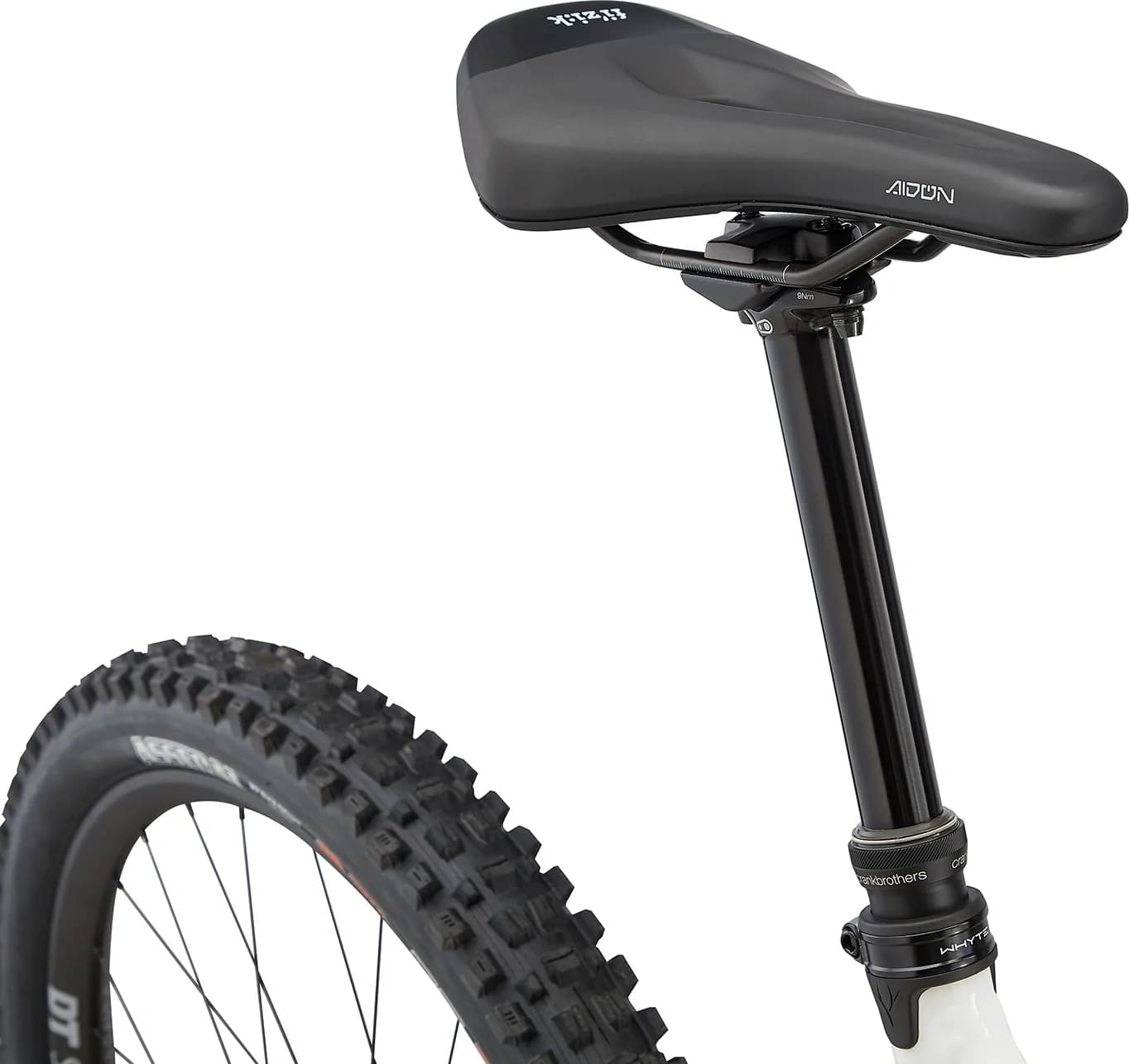

Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 634.8 mm | 648.2 mm | 661.6 mm |
| Reach | 458 mm | 486 mm | 513 mm |
| Top Tube Length | 612.6 mm | 645.8 mm | 677.7 mm |
| Seat Tube Angle | 75.4 ° | 75.2 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 63.2 ° | 63.2 ° | 63.2 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1258 mm | 1293 mm | 1327 mm |
| Standover Height | 772 mm | 773 mm | 775 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
E-180 Works MX Super belongs to the Whyte E E 180 model. Whyte released 11 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Whyte E-180 S MX Super 2023 is the most economical model, with a starting price of 8270$. Whyte E-180 Works MX Super 2023 on the other hand costs 11919$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Whyte released this model in 2023, its price was 11919$. If we compare this with the average Enduro e-bike cost we notice that the price is 149.09% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on E-180 Works MX Super are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-180 Works MX Super has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Whyte E-180 Works MX Super includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
