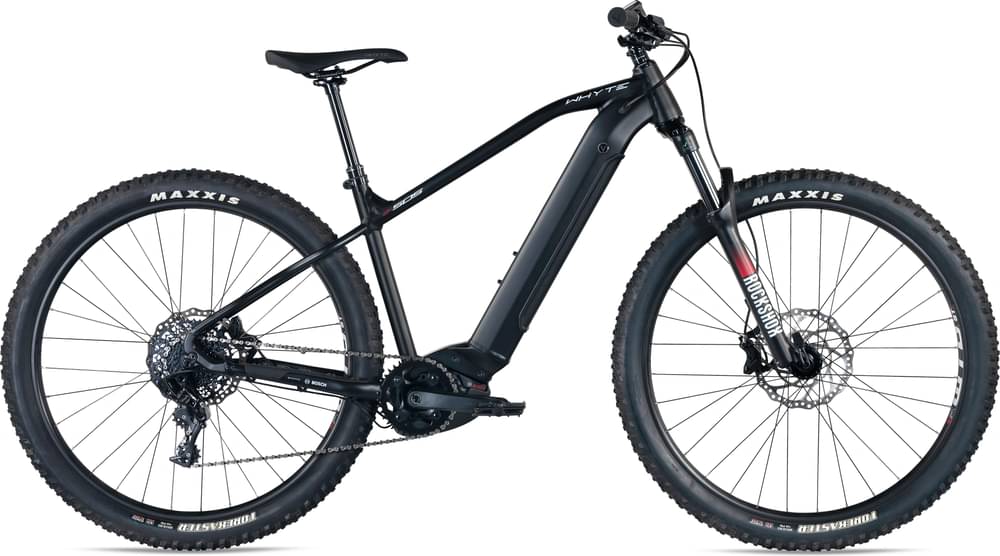

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset GX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Suspension Fork
RockShox 35 Gold RL 29", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX, 11 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX, 11 Speed
Cassette
SRAM PG-1130, 11-42, 11 Speed
Crank
Whyte, Steel narrow/wide, 165mm, Direct Mount 38T for Bosch Performance Line CX, Black
Bottom Bracket
N/A
Chain
KMC NPBK Sport, 11 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rims
WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Forekaster TR 29" x 2.6" 60TPI, EXO Sidewall Protection
Brakes
Brakes
Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
Brake Levers
Tektro Orion
Cockpit
Stem
Whyte Alloy 6061, 35mm Extension
Handlebar
Whyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Seat
Saddle
Whyte Custom, Triple Panel Design
Seatpost
Whyte drop.it, 30.9, 150mm Travel, Paddle Remote Lever
Motor & Battery
Motor
Performance CX 85Nm
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.39 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Stack | 638.5 mm | 648.5 mm | 657.5 mm |
| Reach | 440.5 mm | 456.5 mm | 472.5 mm |
| Top Tube Length | 619.5 mm | 638.5 mm | 656.5 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 444.5 mm | 495.7 mm | 533.4 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1191 mm | 1210 mm | 1230 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm |
| Standover Height | 818 mm | 837 mm | 844 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
E-505 completes the Whyte E E 505 model. Whyte released 2 e-bikes variations of this model so far. Take a sneak peek at all Whyte E E 505 e-bikes models from 2022, by clicking here.
Model range prices
Whyte E-505 Hardtail Electric Mountain Bike 2022 is the most economical model, with a starting price of 4256$. Whyte E-505 2022 on the other hand costs 4378$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 4378$. If we compare this with the average Trail e-bike cost we notice that the price is 30.1% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Whyte E-505 2022 e-bike is equipped with the RockShox 35 Gold RL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The E-505 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Whyte model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
