Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
Suspension Fork
Whyte Straight Bladed Full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
Rear Shock
N/A
Drivetrain

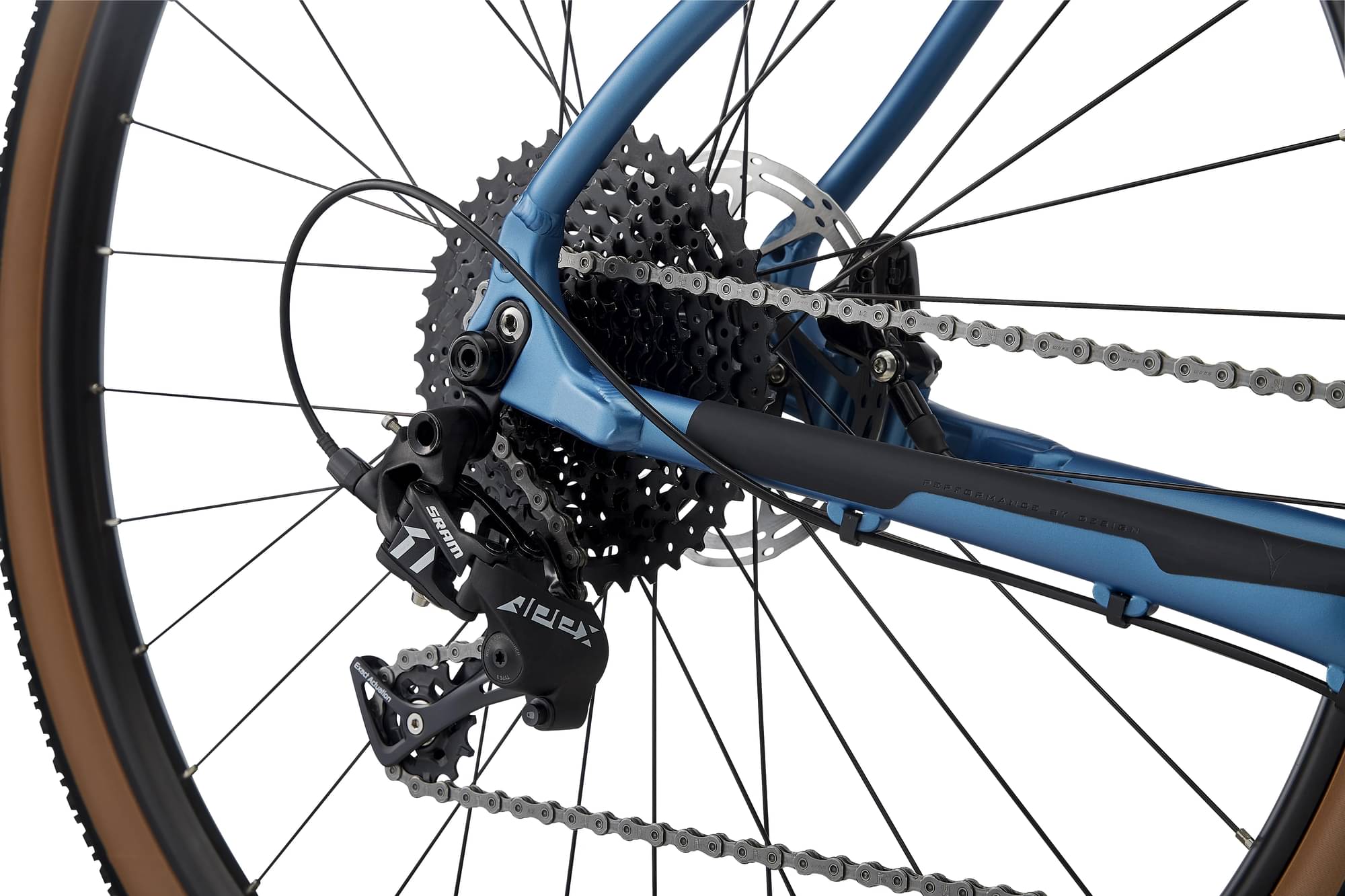

Rear Derailleur
SRAM Apex 1, Long Cage, 11 Speed
Front Derailleur
N/A
Shift Levers
SRAM Apex 1, Full Hydraulic, 11 Speed
Cassette
SRAM XG-1150, 10-42, 11 Speed
Crank
Whyte, Forged 2pcs Cranks, Direct Mount, Narrow/Wide 38T Alloy Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
Bottom Bracket
BSA 68mm
Chain
SRAM PC-1110, 11 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 32 Hole, Concealed Hex Key
Rear Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, XD Driver, 32 Hole
Rims
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound
Brakes
Brakes
SRAM Apex 1 Hydraulic, Centre-Lock 180mm Disc, Flat Mount, Internal Routing
Brake Levers
SRAM Apex 1, Hydraulic
Cockpit
Stem
Whyte Alloy, +-7° Rise, 50/52cm 60mm, 54cm 70mm, 56/58cm 80mm Extension

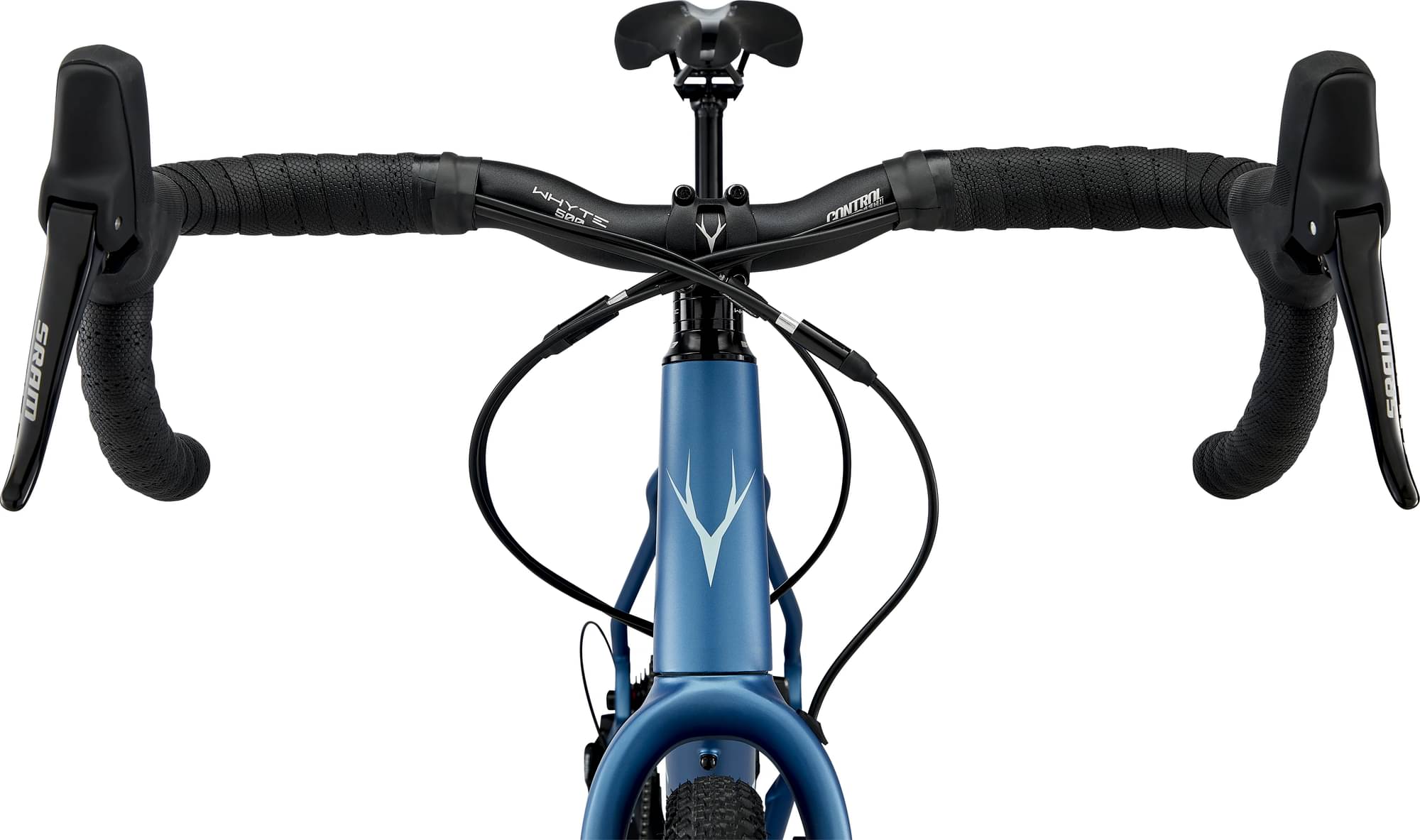

Handlebar
Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
Grips
Whyte Anti Slip, Cross Bar Tape
Headset
FSA No. 42, Integrated Road, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Light Weight Triple Density Base, Triple Panel Design
Seatpost
Trans-X YSP38 Dropper Post, 27.2mm, 50/52/54 70mm Travel, 56 90mm Travel, 58 110mm Travel, Rocker Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.41 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 617 mm | 627 mm | 657 mm | 666 mm | 687 mm |
| Rake | 34 mm | 34 mm | 34 mm | 33 mm | 34 mm |
| Trail | 91 mm | 91 mm | 91 mm | 92 mm | 91 mm |
| Stack | 568 mm | 582 mm | 596 mm | 610 mm | 624 mm |
| Reach | 394 mm | 398.4 mm | 423 mm | 428 mm | 443 mm |
| Top Tube Length | 557 mm | 566 mm | 595 mm | 604 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1030 mm | 1040 mm | 1070 mm | 1079 mm | 1100 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 782 mm | 799 mm | 816 mm | 833 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Friston belongs to the Whyte Friston model. 7 bikes variations carry this model name so far. You can easily view all of the Whyte Friston bikes models from 2023, here.
Model range prices
The most economical model, the Whyte Friston Gravel Bike 2023 has a starting price of 2800$. Whyte Friston 2023 on the other hand is the most expensive at 2800$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 2800$. Comparing this to the average Gravel bike price, we see that the price is 13.73% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components

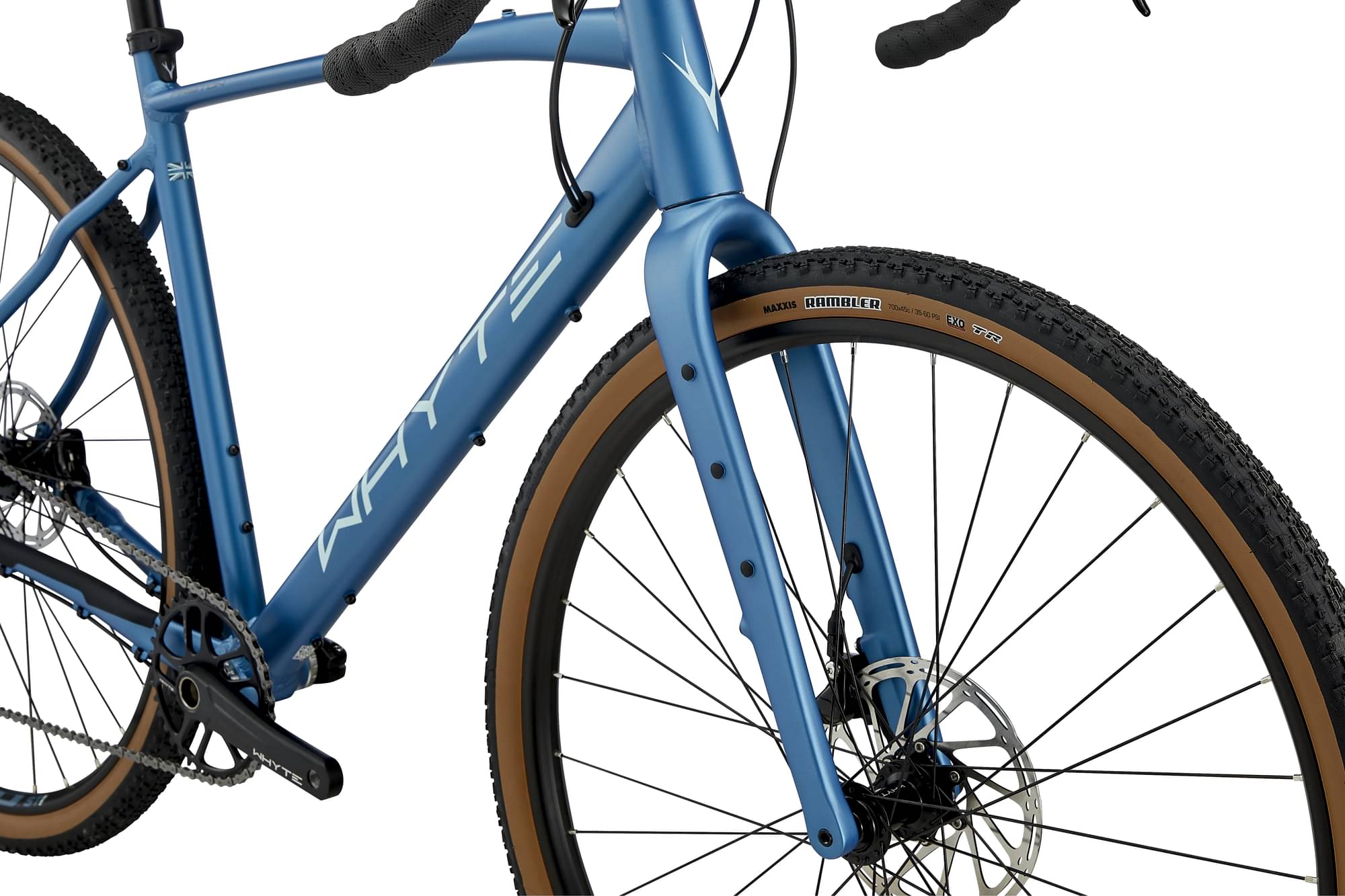

Fork material
Friston has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Friston 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Whyte Friston has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.

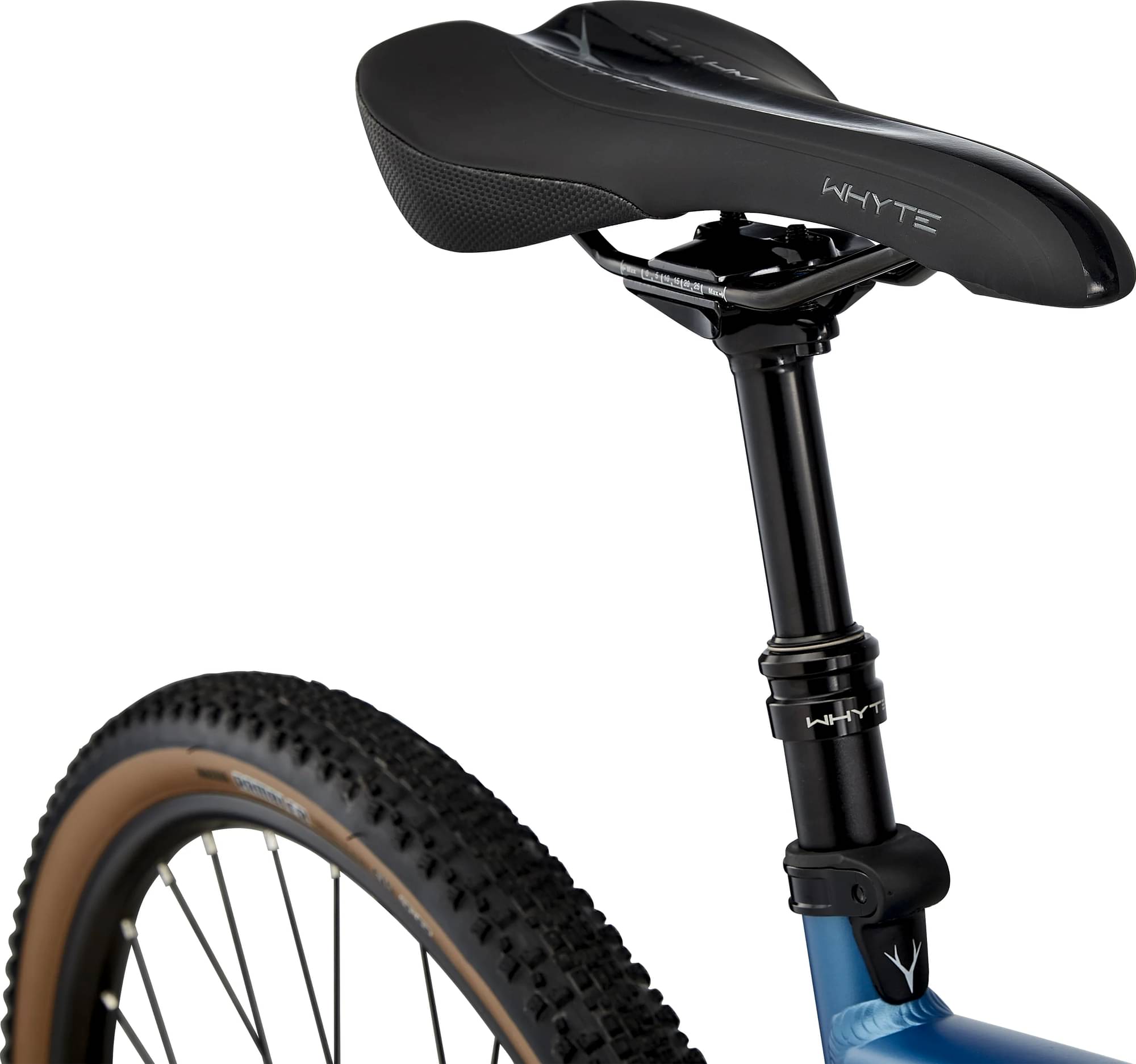

Dropper post
A dropper post is included with the Friston. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
