Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox Lyrik
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Lyrik RC2 27.5", DebonAir, Charger 2, Fast Black coating, 37mm offset, 15mm x 110mm, Maxle Ultimate
Rear Shock
RockShox Super Deluxe RCT, DebonAir, Fast Black coating, adjustable rebound, 2 position low speed compression adjustment
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, MMX, 12-speed
Cassette
SRAM XG-1295 Eagle, 11-50 tooth, 12-speed
Crank
SRAM Descendant Carbon Eagle, X-Sync 2, DUB, 170mm
Bottom Bracket
SRAM DUB, BSA 73mm
Chain
SRAM Eagle, 12-speed
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, sealed stainless steel cartridge bearings, 15mm x 110mm Boost front, 12mm x 148mm Boost through axle rear
Rear Hub
Hope Pro 4, sealed stainless steel cartridge bearings, 15mm x 110mm Boost front, 12mm x 148mm Boost through axle rear
Rims
Whyte 30mm Carbon Hookless, 28 hole, offset, tubeless ready, 3M rim strip with valves included
Spokes
DT Swiss Competition Butted 2.0-1.8-2.0mm, black stainless, brass nipples
Tires
Front: Maxxis Minion DHF WT, TR, 27.5" x 2.5" 60 tpi, EXO, 3C MaxxTerra, Dual Compound, Rear: Maxxis Aggressor WT, TR, 27.5" x 2.5" 120 tpi, Double Down Casing with Butyl Inserts, Dual Compound
Brakes
Brakes
SRAM Code RSC, 4-piston, sintered metal pads, 200mm rotors (front and rear)
Brake Levers
SRAM Code RSC, MMX
Cockpit
Stem
Race Face Turbine, 35mm diameter, 32mm length
Handlebar
Race Face Next R Carbon, 20mm rise, 35mm diameter, 800mm wide
Grips
Whyte Lock-on V
Headset
FSA No. 42 Orbit ZS Plus, integrated, sealed cartridge bearings
Seat
Saddle
Whyte Custom Team, lightweight foam, chromoly rails, triple panel design
Seatpost
RockShox Reverb Stealth, X1 Remote, 125mm (S), 150mm (M, L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 337.5 mm | 337.5 mm | 337.5 mm |
| Stack | 629.4 mm | 638.4 mm | 647.4 mm |
| Reach | 442.4 mm | 458.4 mm | 479.4 mm |
| Top Tube Length | 589.4 mm | 609.4 mm | 634.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1206 mm | 1227 mm | 1251 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Standover Height | 846 mm | 850 mm | 875 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

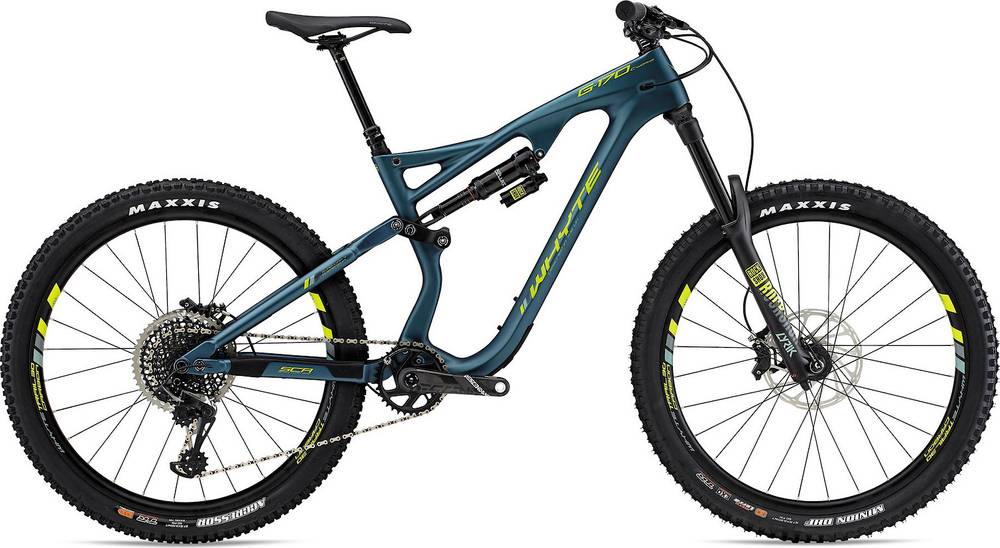

G-170 C Works completes the Whyte G 170 model. 6 bikes variations carry this model name so far. Take a sneak peek at all Whyte G 170 bikes models from 2019, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.5 kg (31.97 lbs), the G-170 C Works model is slightly heavier than average. In short, the average Enduro bike weight is 1.61% lower than this one.
Overview of components
Fork
Whyte G-170 C Works 2019 bike is equipped with the RockShox Lyrik fork, and has 180mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe RCT rear shock model, which has a travel of 170mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the G-170 C Works model has 27.5″ carbon wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The G-170 C Works comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
G-170 C Works comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Whyte G-170 C Works comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
