Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
Suspension Fork
Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812, Shadow Plus, 11 Speed
Front Derailleur
N/A
Shift Levers
Shimano GRX ST-RX810, 11 Speed
Cassette
Shimano CS-M7000, 11-42, 11 Speed
Crank
Shimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
Bottom Bracket
Shimano SM-BBR60, 68mm
Chain
Shimano CN-HG601-11, 11 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key
Rear Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole
Rims
Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound
Brakes
Brakes
Shimano GRX BR-RX810, 180mm Flat Mount Centre-Lock Disc, Internal Routing
Brake Levers
Shimano GRX ST-RX810, Hydraulic
Cockpit
Stem
Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
Handlebar
Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
Grips
Whyte Anti Slip, Cross Bar Tape
Headset
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost
Trans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.41 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Stack | 568 mm | 582 mm | 596 mm | 610 mm | 624 mm |
| Reach | 394 mm | 398.4 mm | 423 mm | 428 mm | 443 mm |
| Top Tube Length | 557 mm | 566 mm | 595 mm | 604 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1030 mm | 1040 mm | 1070 mm | 1079 mm | 1100 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 782 mm | 799 mm | 816 mm | 833 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

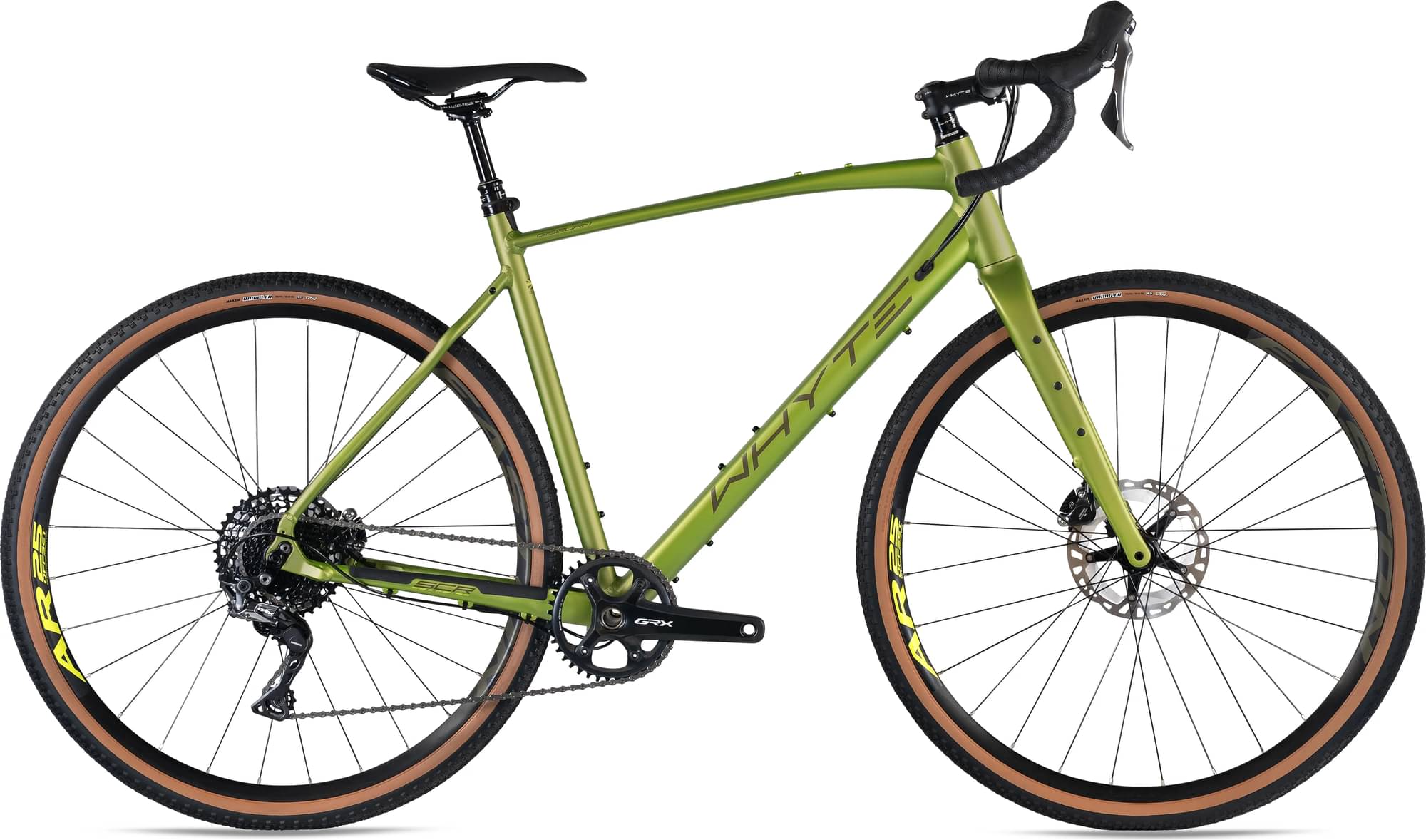

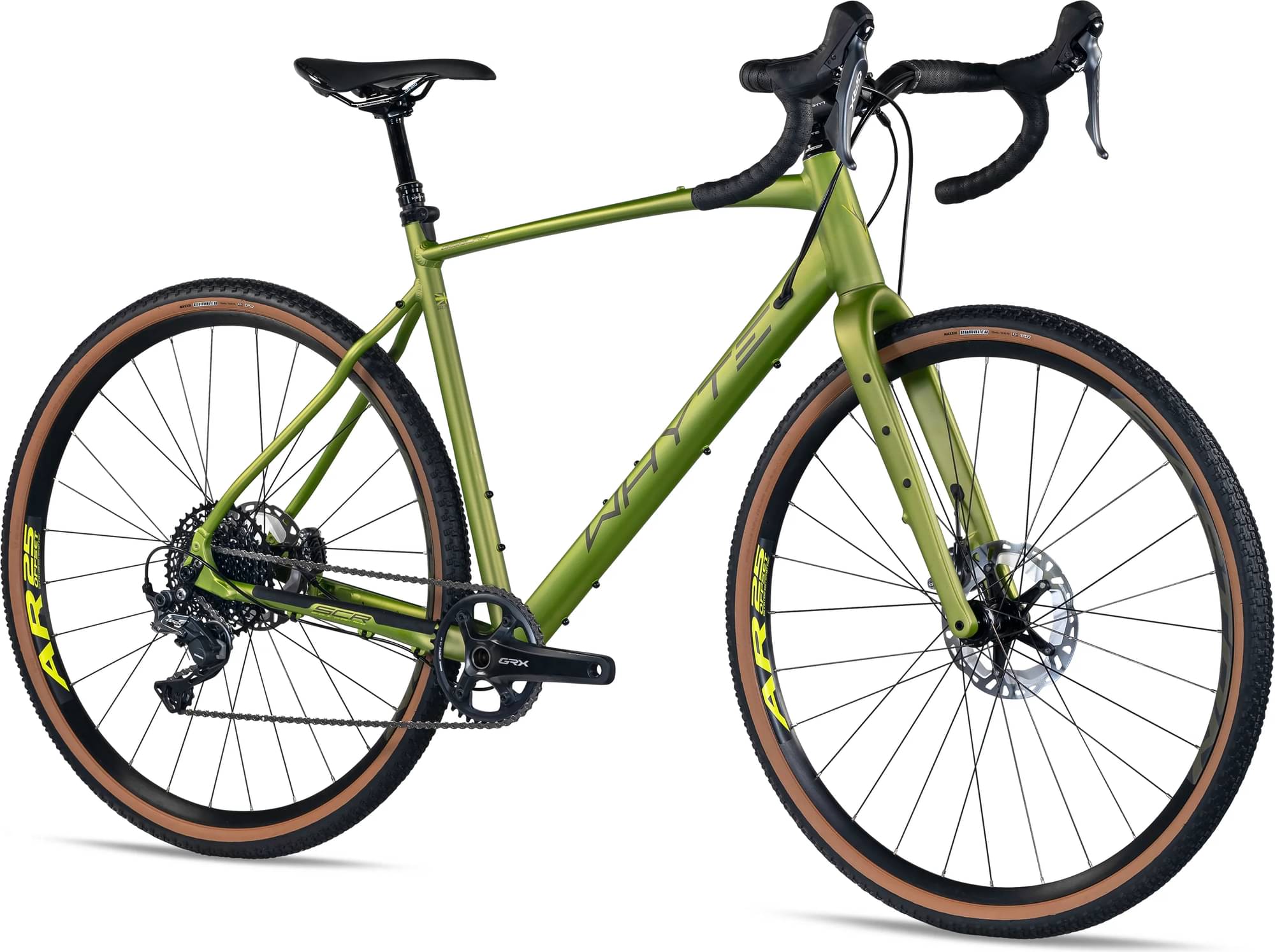

Gisburn Gravel Bike is part of the Whyte Gisburn model. There are 6 bikes that carry this model name. Take a sneak peek at all Whyte Gisburn bikes models from 2022, by clicking here.
Model range prices
Whyte Gisburn Gravel 2022 is the most affordable bike of this model and has a price of 2859$. On the other hand, Whyte Gisburn Gravel Bike 2022, is the most expensive and costs 2859$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 2859$. Comparing this to the average Gravel bike price, we see that the price is 16.13% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Gisburn Gravel Bike components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Gisburn Gravel Bike are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gisburn Gravel Bike comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
