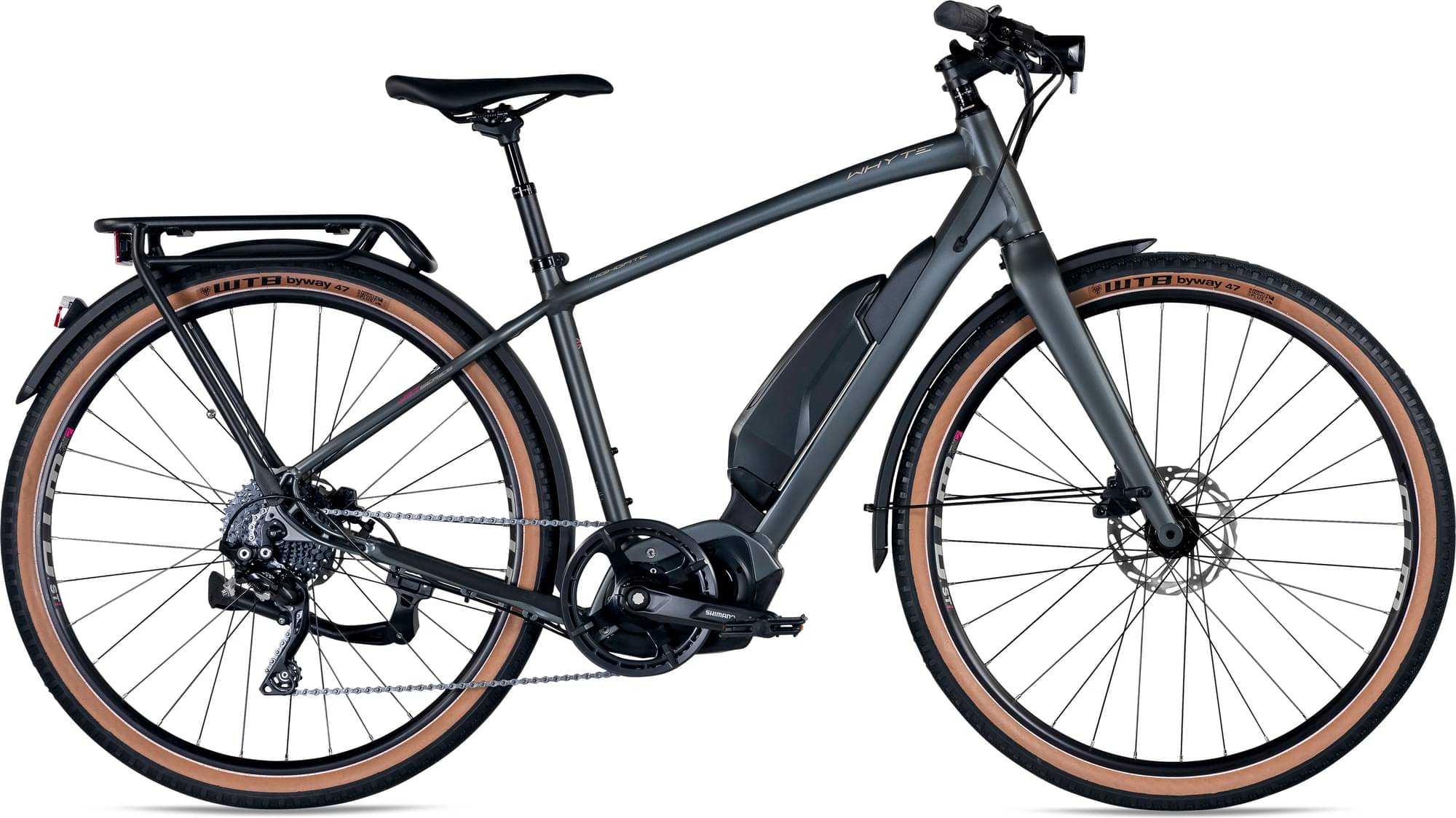

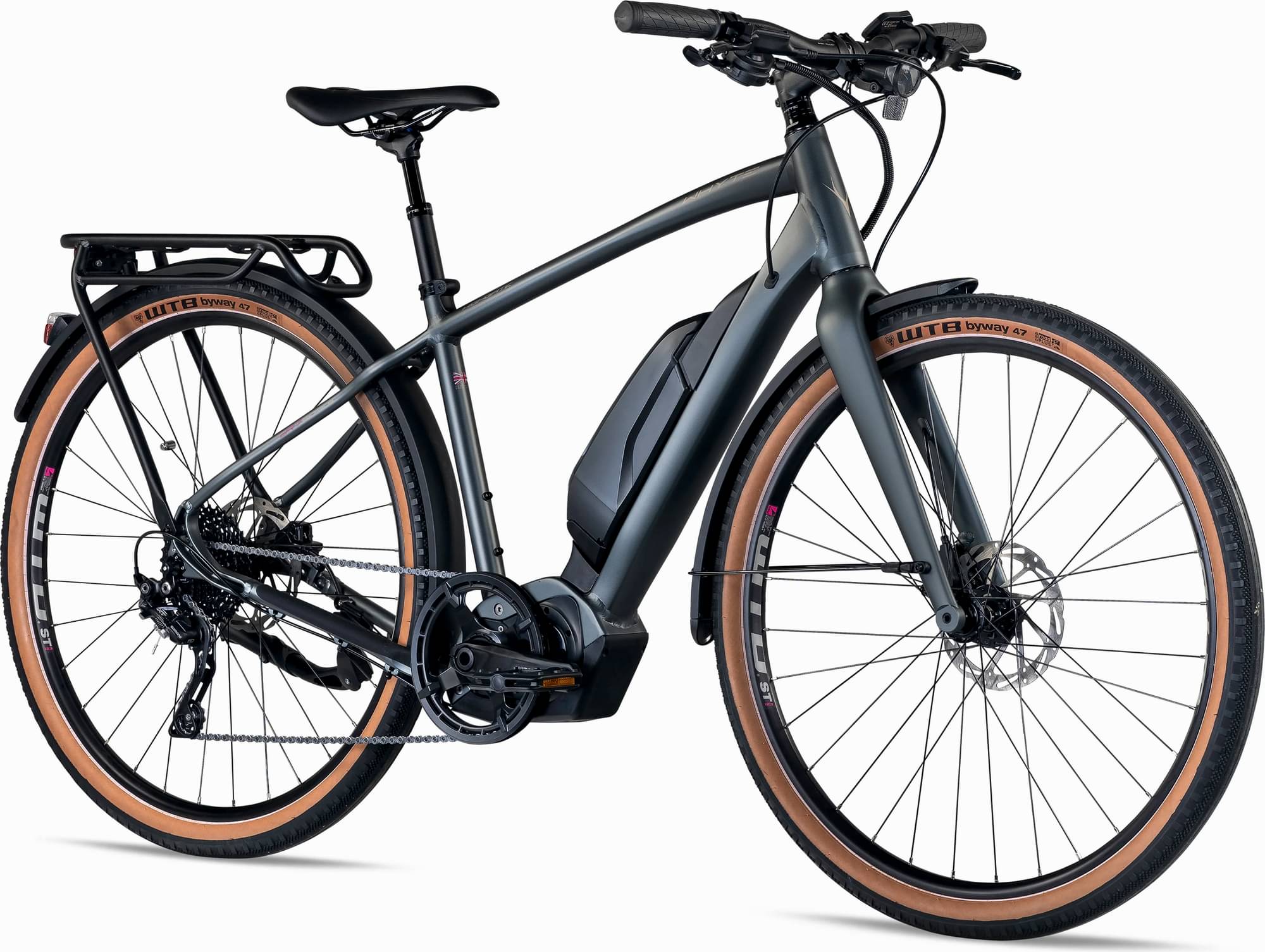

Whyte Highgate Compact 2022
2022 E-bike
Estimate price |
3,928$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Zee -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount
Suspension Fork
Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable RoutBicyclesing
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano RD-M781, Deore XT, SGS 10-Speed, Shadow
Front Derailleur
N/A
Shift Levers
Shimano SL-M640, Zee, 10 Speed with STEPS SC-E5000 Display
Cassette
Sunrace CSMS1, 11-36, 10 Speed
Crank
Whyte Forged 44T with Double Sided Chain Guard, 165mm, 10 Speed
Bottom Bracket
N/A
Chain
KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 32 Hole
Rims
WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
2.0mm, Black Stainless with Brass Nipples
Tires
WTB Byway, Tan Wall, 650 x 47c
Brakes
Brakes
Tektro Auriga, 160mm Disc, Flat Mount, Internal Routing
Brake Levers
Tektro Auriga
Cockpit
Stem
Whyte Alloy 6061, S 60mm, M 70mm, L 80mm
Handlebar
Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
Grips
Whyte Custom Dual Density Lock-on
Headset
FSA No. 42 B CUP for 1 1/2" Lower and 1 1/8" Upper
Seat
Saddle
Whyte Custom
Seatpost
Whyte Suspension 6061 Alloy, 12mm Offset, 30.9mm, 2 Bolt Clamp
Motor & Battery
Motor
E6100 60Nm
Battery
418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm |
| Top Tube Length | 546.7 mm | 572.7 mm | 598.7 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 393.7 mm | 431.8 mm | 469.9 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1060 mm | 1071 mm | 1088 mm |
| Standover Height | 713 mm | 734 mm | 767 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Highgate Compact is part of the Whyte E Highgate model. 5 e-bikes variations carry this model name so far. Take a sneak peek at all Whyte E Highgate e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Whyte Highgate e-Commuter 2022 has a starting price of 3409$. Whyte Highgate Compact 2022 on the other hand is the most expensive at 3531$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 3531$. Comparing this to the average Hybrid e-bike price, we see that the price is 42.38% higher.
Highgate Compact components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Highgate Compact model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Highgate Compact has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
