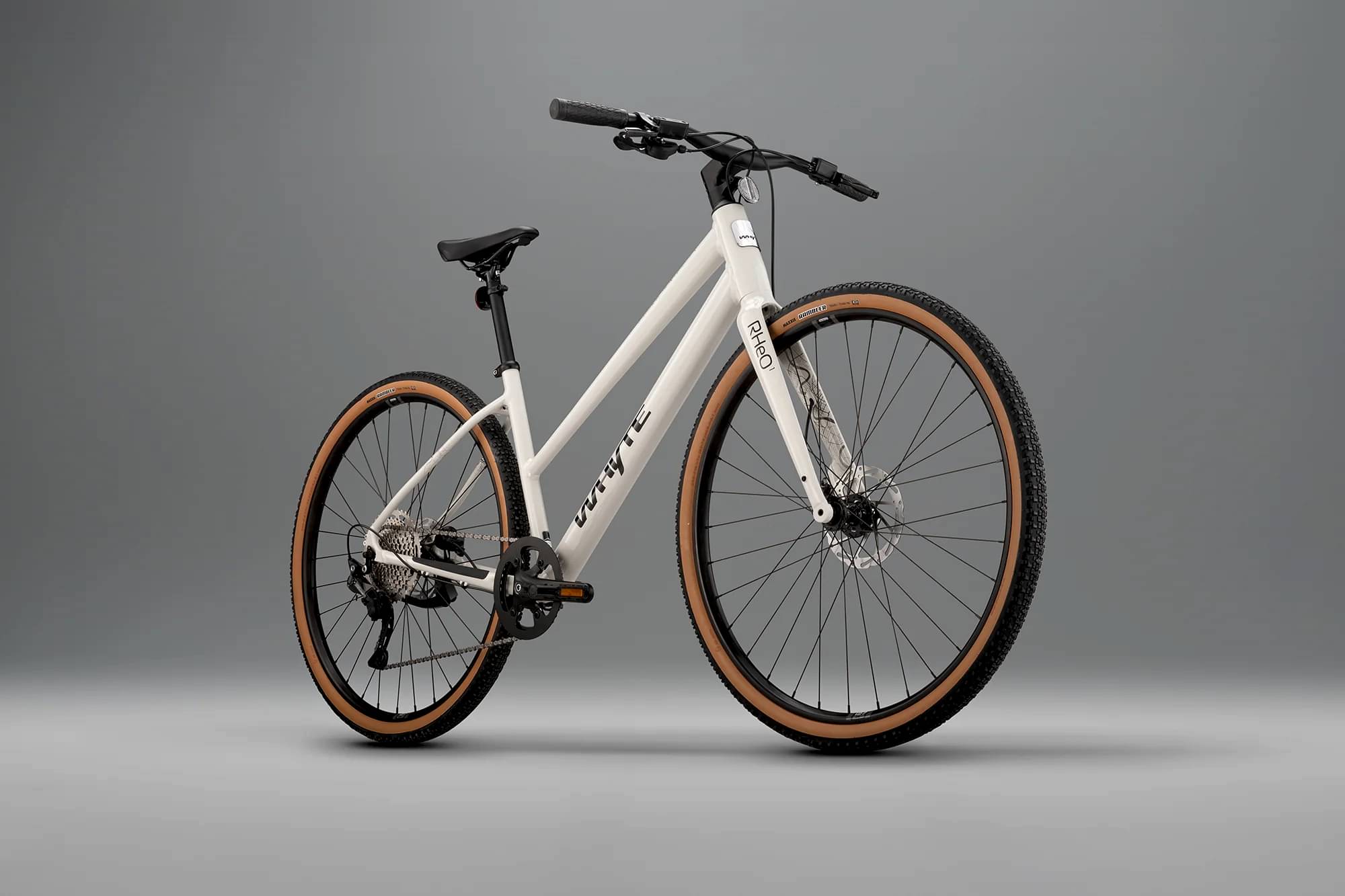

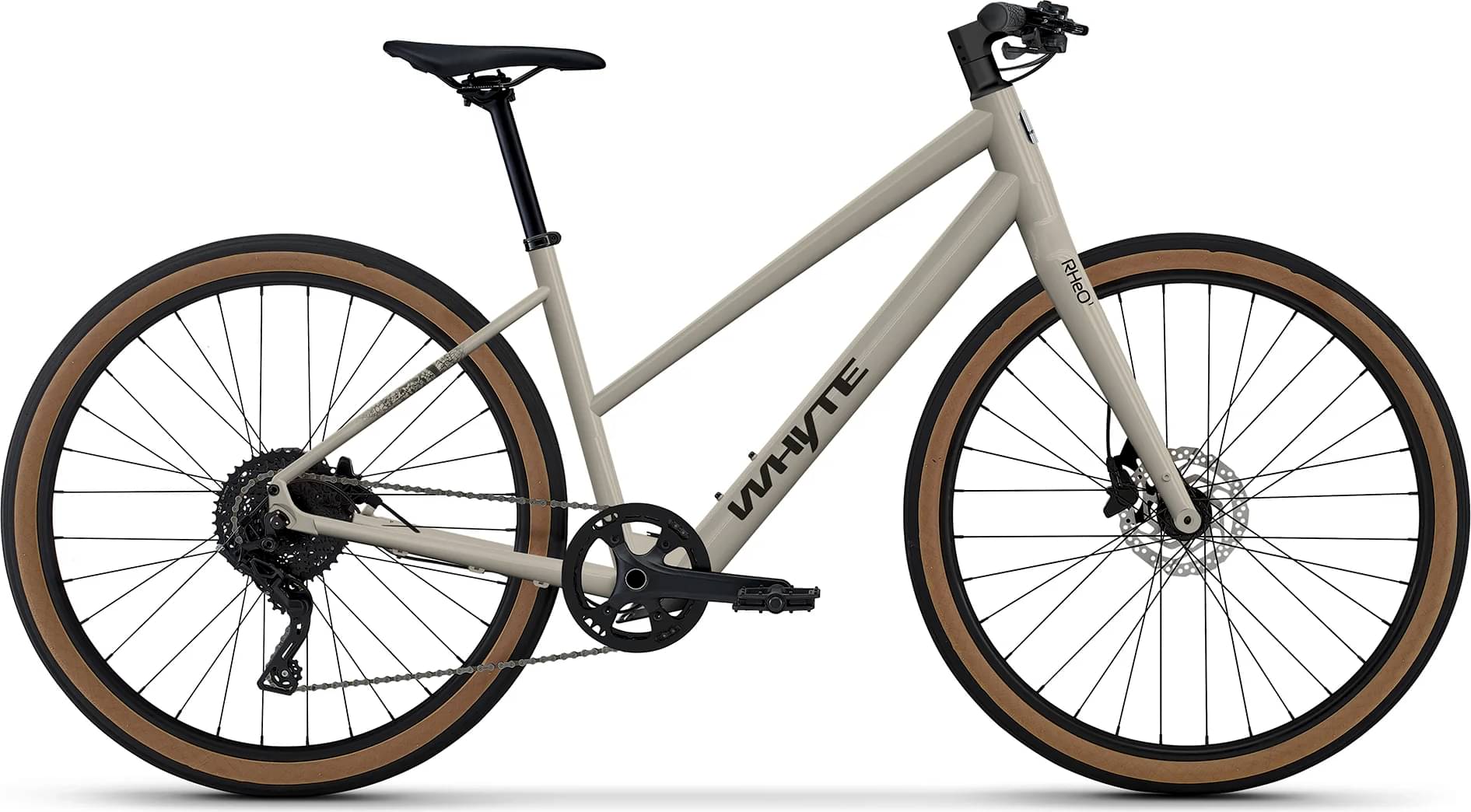

Whyte RHeO 1 ST 2024
2024 Urban
Estimate price |
1,354$
Weight | 12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts, chain stay kick stand mount
Suspension Fork
Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, Post Mount with single eyelets for mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore 10 speed, Shadow design and direct attachment
Front Derailleur
N/A
Shift Levers
Shimano Deore 10 speed Rapidfire
Cassette
Shimano Deore 10 speed, 11-46T
Crank
Whyte alloy, 40T alloy chainring
Bottom Bracket
Shimano BSA, square taper, 122.5mm
Chain
Shimano Deore 10 speed
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole
Rear Hub
Alloy, cup and cone, double sealed cartridge bearings, 32 hole
Rims
WTB STp I27 rims, 32 hole
Spokes
2.0mm, PG, black stainless, brass nipples
Tires
Maxxis Reaver Tanwall 700 x 45c, EXO wire bead
Brakes
Brakes
Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor
Brake Levers
Tektro T3020 Clean Sweep Design, three finger comfort lever
Cockpit
Stem
N/A
Handlebar
Whyte one piece bar and stem: 50mm extension, 720mm width, 20mm rise, seven degree backsweep, four degree upsweep
Grips
Whyte Custom dual density lock-on
Headset
No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed catridge bearings and front entry for cables
Seat
Saddle
Whyte Custom
Seatpost
Whyte 6061 alloy, 20mm offset, 350mm, two bolt clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.398 mm | 1.377 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm |
| Stack | 565 mm | 580 mm | 599 mm |
| Reach | 400 mm | 415 mm | 435 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 430 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1061 mm | 1076 mm | 1103 mm |
| Standover Height | 654 mm | 665 mm | 682 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
RHeO 1 ST completes the Whyte Rheo model. There are 2 bikes that carry this model name. You can easily view all of the Whyte Rheo bikes models from 2024, here.
Model range prices
Whyte RHeO 1 2024 is the cheapest bike model and costs 1217$. Whyte RHeO 1 ST 2024 is the most expensive one and costs 1217$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Urban bikes average price
If you want an acceptable General Urban bike you should know that the average price is 499$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Whyte released this model in 2024, its price was 1217$. Comparing the average cost of a General Urban bike to this one, you will see that RHeO 1 ST price is 143.89% more expensive.
Average weight for General Urban bikes
The average weight for General Urban bikes is 13.11 kg (28.9 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, RHeO 1 ST has a weight of 12 kg (26.46 lbs). In other words, this model is 9.25% lighter than the average General Urban bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
RHeO 1 ST components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on RHeO 1 ST are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Whyte RHeO 1 ST is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Whyte RHeO 1 ST bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
