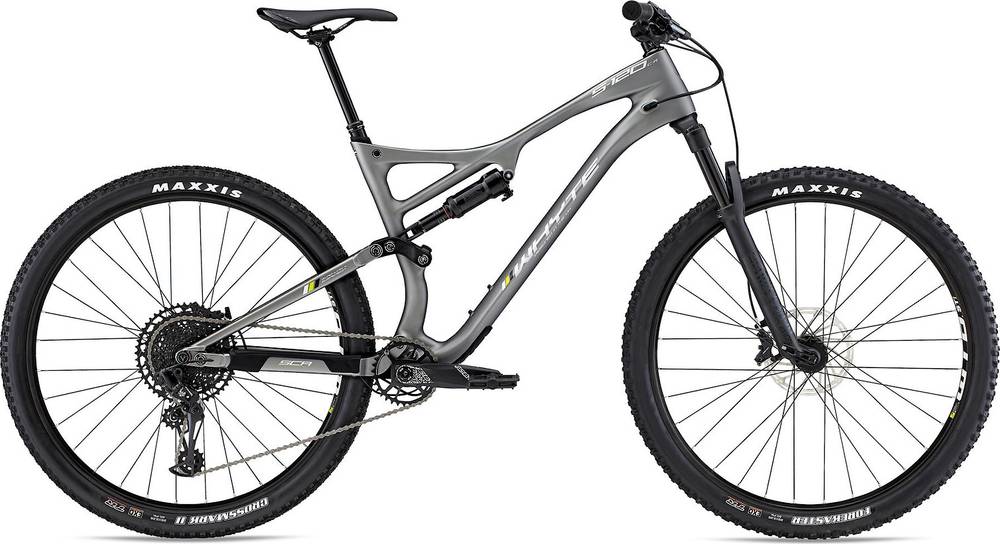

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Revelation Charger RC
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Revelation RC 29", DebonAir, Charger, Fast Black coating, 42mm offset, 15mm x 110mm, Maxle Lite
Rear Shock
RockShox Deluxe RT, DebonAir, Fast Black coating, adjustable rebound, 2-position compression
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, MMX, 12-speed
Cassette
SRAM NX-1230 Eagle, 11-50 tooth, 12-speed
Crank
SRAM Descendant 6K Eagle, X-sync 2, DUB, 170mm
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM Eagle, 12-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Alloy, double sealed cartridge bearings, 15mm x 110mm front, 12mm x 148mm rear
Rear Hub
Alloy, double sealed cartridge bearings, 15mm x 110mm front, 12mm x 148mm rear
Rims
WTB ST i29 TCS 2.0 System, pinned joint, tubeless ready, 32 hole
Spokes
DT Swiss Champion 2.0mm, black stainless, brass nipples
Tires
Front: Maxxis Forekaster TR 29 x 2.3" 60 tpi, Dual Compound, EXO, Rear: Maxxis Crossmark II TR 29 x 2.25" 60 tpi, Dual Compound, EXO
Brakes
Brakes
SRAM Guide T, 4-piston, 180mm rotors (front and rear)
Brake Levers
SRAM Guide T, Matchmaker
Cockpit
Stem
Whyte Gravity, 40mm length
Handlebar
Whyte 6061 alloy, 31.8mm diameter, 780mm wide, 15mm rise
Grips
Whyte Lock-on V
Headset
FSA No. 42 Orbit ZS Plus, integrated, sealed cartridge bearings
Seat
Saddle
Whyte Custom, dual density, triple panel design
Seatpost
Bike Yoke Devine dropper, MMX trigger remote, 125mm (S), 150mm (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 610.4 mm | 622.4 mm | 633.4 mm | 645.4 mm |
| Reach | 438.4 mm | 462.4 mm | 486.4 mm | 510.4 mm |
| Top Tube Length | 588.4 mm | 618.4 mm | 646.4 mm | 675.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1174 mm | 1204 mm | 1233 mm | 1262 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 802 mm | 808 mm | 814 mm | 821 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
S-120 C R belongs to the Whyte S 120 model. 4 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the RockShox Revelation Charger RC fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The S-120 C R has a rear shock with a travel of 120mm. The model RockShox Deluxe RT is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the S-120 C R model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The S-120 C R comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the S-120 C R. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
