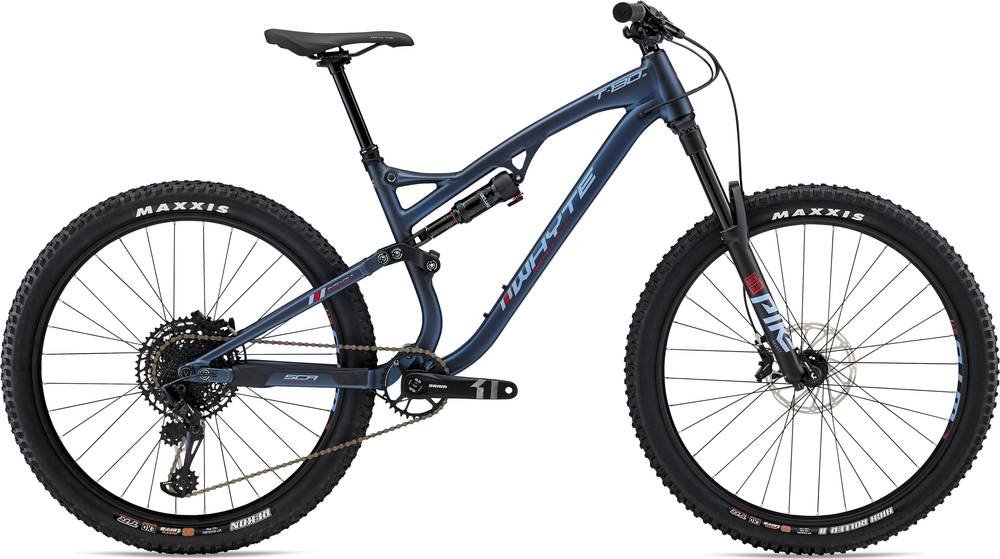

Whyte T-130 S v2 2020
2020 Mountain
Estimate price |
3,344$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Select
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, 2 hole ISCG Mount, Alloy Symmetrical SCR Rear Triangle, 148mm Boost Dropouts
Suspension Fork
RockShox Pike Select RC 27.5", 140mm Travel, 37mm Offset, DebonAir, Charger RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Rear Shock
RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, MMX Clamp, 12 Speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 Speed
Crank
SRAM X1 Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost, 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
Rims
WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis High Roller II TR 27.5" x 2.6" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Rekon TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection, Rear
Brakes
Brakes
SRAM Guide T, 4 Pot, 180mm Rotor
Brake Levers
SRAM Guide T, Matchmaker
Cockpit
Stem
Whyte Gravity Stem, 35mm Extension
Handlebar
Whyte 6061 Alloy, 15mm Rise, 31.8mm, XS/S 760mm Wide, 15mm Rise, M/L/XL 780mm Wide, 30mm Rise
Grips
Whyte Lock-on V Grip
Headset
FSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Dual Density, Triple Panel Design
Seatpost
KS RAGEi, 30.9mm, XS 100mm Travel, S 125mm Travel, M/L/XL 150mm Travel, Southpaw-Alloy Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.35 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 595.3 mm | 606.3 mm | 618.3 mm | 629.3 mm | 641.3 mm |
| Reach | 410.3 mm | 434.3 mm | 458.3 mm | 482.3 mm | 506.3 mm |
| Top Tube Length | 556.3 mm | 585.3 mm | 614.3 mm | 642.3 mm | 671.3 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1136 mm | 1165 mm | 1195 mm | 1224 mm | 1253 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 790 mm | 771 mm | 804 mm | 810 mm | 817 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
T-130 S v2 is part of the Whyte T 130 model. There are 12 bikes that carry this model name. Take a sneak peek at all Whyte T 130 bikes models from 2020, by clicking here.
Model range prices
Whyte T-130 SR YOUTH v2 2020 is the cheapest bike model and costs 2796$. Whyte T-130 S v2 2020 is the most expensive one and costs 3040$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 3040$. Comparing the average cost of a Trail bike to this one, you will see that T-130 S v2 price is 10.07% higher.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Whyte T-130 S v2 it’s weighing 14.7 kg (32.41 lbs). At this weight, is considerably heavier than average. In conclusion, the average Trail bike weighs 13.25% less than T-130 S v2.
T-130 S v2 components
Fork
The T-130 S v2 comes factory-installed with the RockShox Pike Select fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the T-130 S v2 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
T-130 S v2 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Whyte T-130 S v2 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
