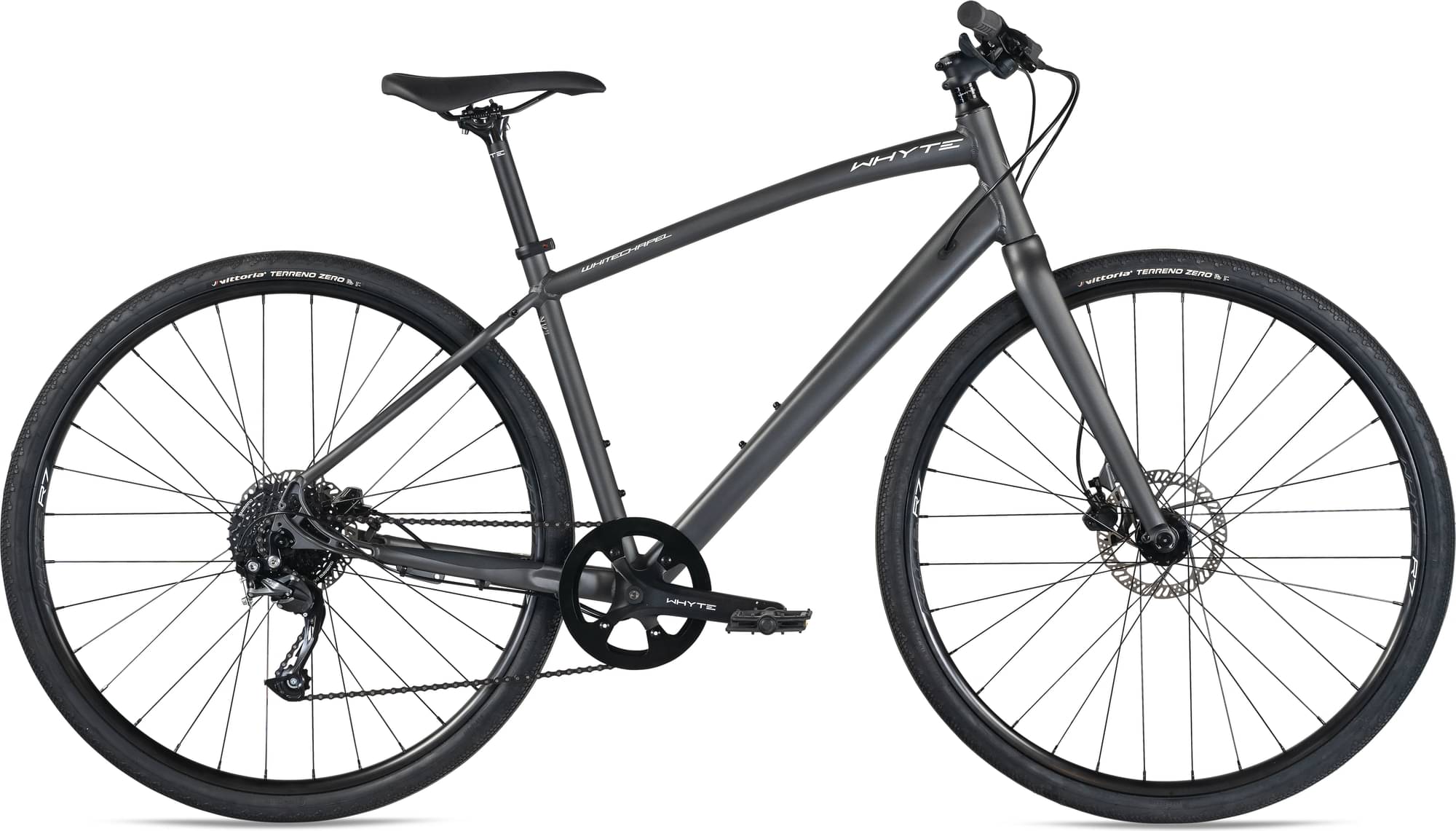

Whyte WHITECHAPEL 2022
2022 Urban
Estimate price |
1,004$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Altus -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Custom Whyte Dropouts, Chain Stay Kick Stand Mount
Suspension Fork
Whyte Straight Bladed 6061 Alloy, Forged Crown, Alloy Steerer, Internal Cable Routing, Post Mount with Single Eyelets for Mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000-SGS, 9 Speed
Front Derailleur
N/A
Shift Levers
Shimano Altus SL-M2010, 9 Speed
Cassette
Shimano CS-HG-200, 11-36, 9 Speed
Crank
Alloy, 42T Chainring with Alloy Chain Guard
Bottom Bracket
Square Interface, Cartridge Bearings, 68mm
Chain
Sunrace, 9 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Hub
Alloy, Cup & Cone, Double Seal, 32 Hole
Rims
Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear and 32 Hole Front
Spokes
2.0mm, PG, Black Stainless, Brass Nipples
Tires
Vittoria Terreno Zero 700 x 37c, Puncture Protection
Brakes
Brakes
Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
Brake Levers
Tektro HD-M275
Cockpit
Stem
Whyte Alloy, S 45mm, M/L/XL 60mm
Handlebar
Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide
Grips
Whyte Custom Dual Density Lock-on
Headset
FEIMIN H809C, Integrated Road, 1 1/8" Sealed Cartridge Bearings, 41mm Diameter
Seat
Saddle
Whyte Custom
Seatpost
Whyte 6061 Alloy, 25mm Offset, 27.2mm x S/M/L 350mm, XL 400mm, 2 Bolt Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.4 mm |
| Bottom Bracket Height | 268 mm | 271.5 mm | 271.5 mm |
| Stack | 572.5 mm | 586.5 mm | 605.5 mm |
| Reach | 417.5 mm | 425.5 mm | 433.5 mm |
| Top Tube Length | 588.7 mm | 606.5 mm | 620.4 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 444.5 mm | 495 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1071 mm | 1087 mm | 1102 mm |
| Standover Height | 743 mm | 779 mm | 810 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
WHITECHAPEL is part of the Whyte Whitechapel model. There are 5 bikes that carry this model name. Take a sneak peek at all Whyte Whitechapel bikes models from 2022, by clicking here.
Model range prices
Whyte Whitechapel Commuter 2022 is the most affordable bike of this model and has a price of 912$. On the other hand, Whyte Whitechapel Commuter Bike 2022, is the most expensive and costs 912$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 912$. Comparing the average cost of a Commuter bike to this one, you will see that WHITECHAPEL price is 19.69% more expensive.
Average weight for Commuter bikes
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, WHITECHAPEL has a weight of 11 kg (24.25 lbs). In other words, this model is 29.91% lighter than the average Commuter bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The WHITECHAPEL 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Whyte WHITECHAPEL has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Whyte WHITECHAPEL bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
