Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset XT, Miche -
Suspension Full -
Motor Fazua 250W 60Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CARBON MONOCOQUE NH-MOD
Suspension Fork
ROCK SHOX SID SELECT, 120MM
Rear Shock
ROCK SHOX DELUXE SELECT +
Drivetrain
Rear Derailleur
SHIMANO XT 1X12
Shift Levers
SHIMANO XT 1X12 2.0 SHIFTERS SLX
Cassette
SHIMANO SLX 12S 10-51T
Crank
MICHE ALU 32T
Bottom Bracket
FAZUA EVATION SYSTEM
Chain
SHIMANO SLX 1X12
Wheels
Rims
MICHE 966H
Tires
VITTORIA BARZO RIGID 29X2.25"
Brakes
Brakes
SHIMANO XT M8000
Cockpit
Stem
RITCHEY COMP
Handlebar
RITCHEY H-BAR MTN
Headset
RITCHEY COMP
Seat
Saddle
SELLE ITALIA MODEL X
Motor & Battery
Motor
FAZUA EVATION SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.38 mm |
| Stack | 609 mm | 609 mm | 618 mm |
| Reach | 418 mm | 433 mm | 448 mm |
| Top Tube Length | 594 mm | 609 mm | 627 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm |
| Rider Max Height | 172 cm | 177 cm | 184 cm |

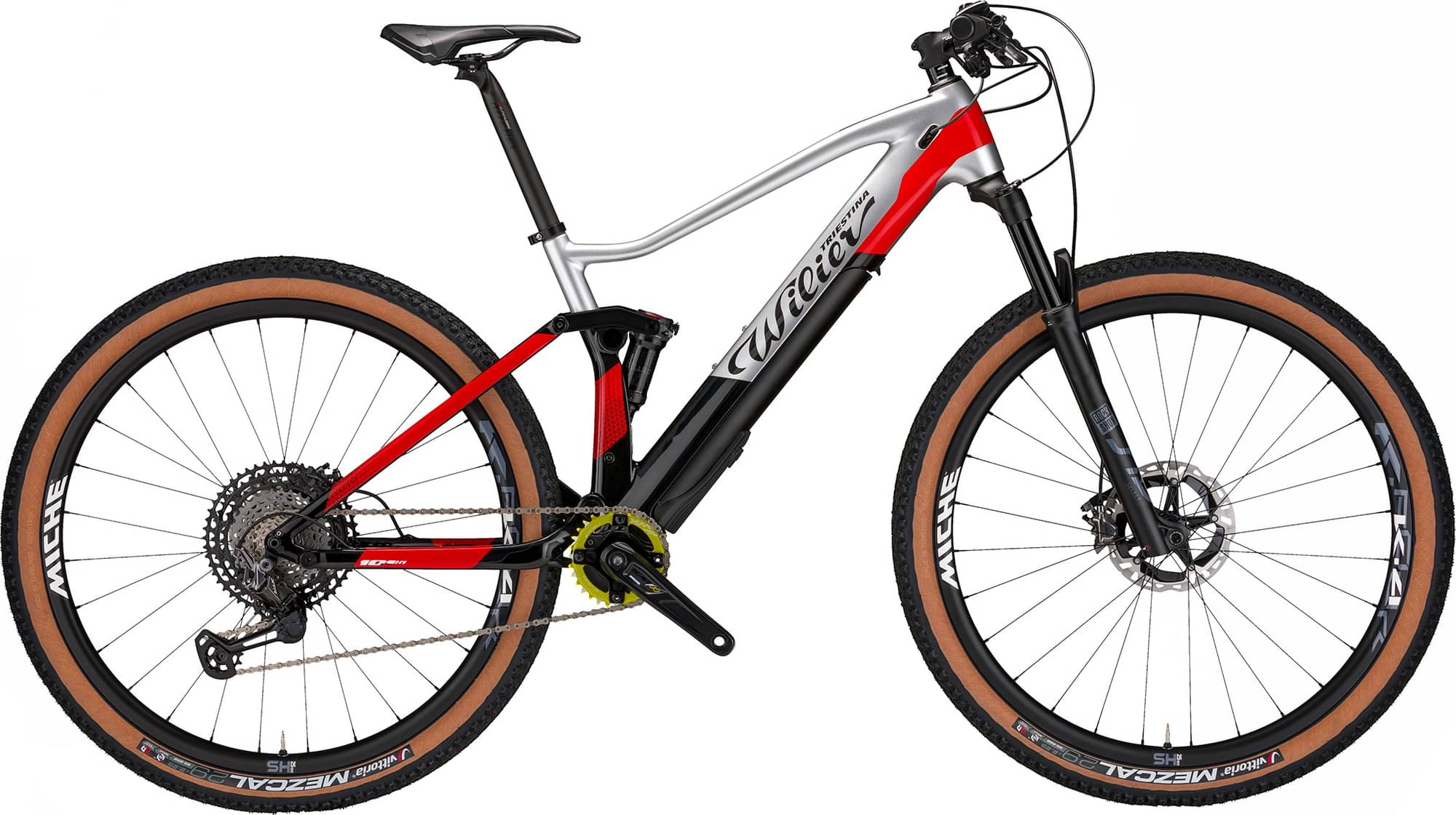

About this model
101FX Hybrid belongs to the Wilier E 101fx model. Wilier launched 5 e-bikes of this model so far. Take a sneak peek at all Wilier E 101fx e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Wilier 101FX Hybrid SHIMANO XT 1×12 2022 has a starting price of 6742$. Wilier 101FX Hybrid SHIMANO XTR 1×12 2022 on the other hand is the most expensive at 9025$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 17.7 kg (39.02 lbs), Wilier e-bike is much lighter than average. In conclusion, the average Trail e-bike weighs 33.9% more than 101FX Hybrid.
101FX Hybrid components
Fork
Wilier 101FX Hybrid 2022 e-bike is equipped with the RockShox SID Select fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on 101FX Hybrid are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The 101FX Hybrid has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 156 cm – 184 cm (5.12 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
