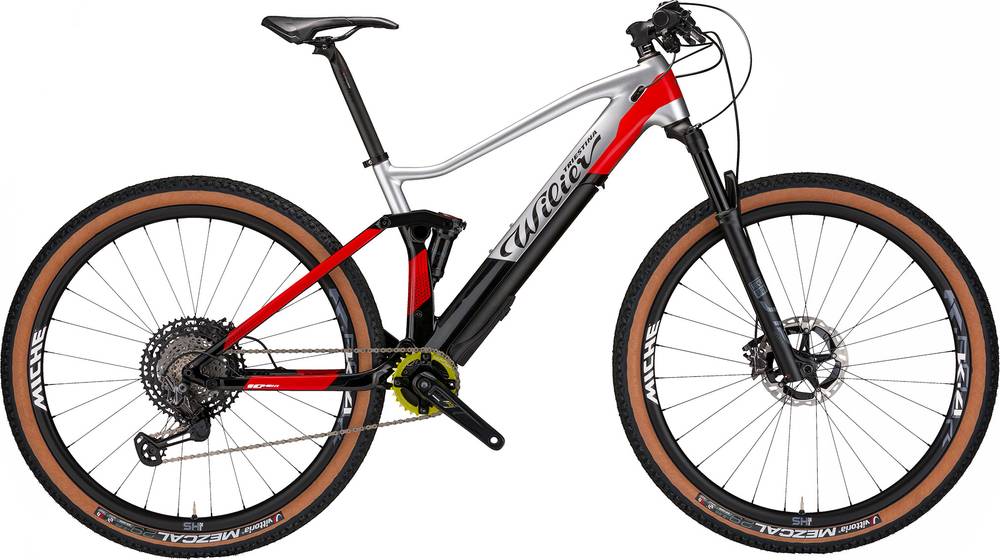

Wilier 101FX Hybrid SHIMANO XT 1×12 2020
2020 E-bike
Estimate price |
7,213$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset XT, SLX -
Suspension Full -
Motor Fazua 250W 60Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CARBON MONOCOQUE NH-MOD
Suspension Fork
ROCK SHOX SID SELECT, 120MM
Rear Shock
ROCK SHOX DELUXE SELECT +
Drivetrain
Rear Derailleur
SHIMANO XT 1X12
Shift Levers
SHIMANO XT 1X12 2.0 SHIFTERS SLX
Cassette
SHIMANO SLX 12S 10-51T
Crank
MICHE ALU 32T
Bottom Bracket
FAZUA EVATION SYSTEM
Chain
SHIMANO SLX 1X12
Wheels
Rims
MICHE 966H
Tires
VITTORIA BARZO RIGID 29X2.25"
Brakes
Brakes
SHIMANO XT M8000
Disk Rotors
SHIMANO 180MM FRONT / 160 MM REAR
Cockpit
Stem
RITCHEY COMP
Handlebar
RITCHEY H-BAR MTN
Headset
RITCHEY COMP
Seat
Saddle
SELLE ITALIA X1
Motor & Battery
Motor
FAZUA EVATION SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.38 mm |
| Stack | 609 mm | 609 mm | 618 mm |
| Reach | 418 mm | 433 mm | 448 mm |
| Top Tube Length | 594 mm | 609 mm | 627 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm |
| Rider Max Height | 172 cm | 177 cm | 184 cm |
About this model
101FX Hybrid SHIMANO XT 1×12 is part of the Wilier E 101fx model. Wilier launched 5 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Wilier 101FX Hybrid SHIMANO XT 1×12 2020 has a starting price of 6583$. Wilier 101FX Hybrid SHIMANO XTR 1×12 2020 on the other hand is the most expensive at 8813$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 6583$. Comparing this to the average Trail e-bike price, we see that the price is 95.63% higher.
101FX Hybrid SHIMANO XT 1×12 components
Fork
The 101FX Hybrid SHIMANO XT 1×12 comes factory-installed with the RockShox SID Select fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on 101FX Hybrid SHIMANO XT 1×12 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 101FX Hybrid SHIMANO XT 1×12 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Wilier 101FX Hybrid SHIMANO XT 1×12 e-bike has 3 sizes, in the range of 156 cm – 184 cm (5.12 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
