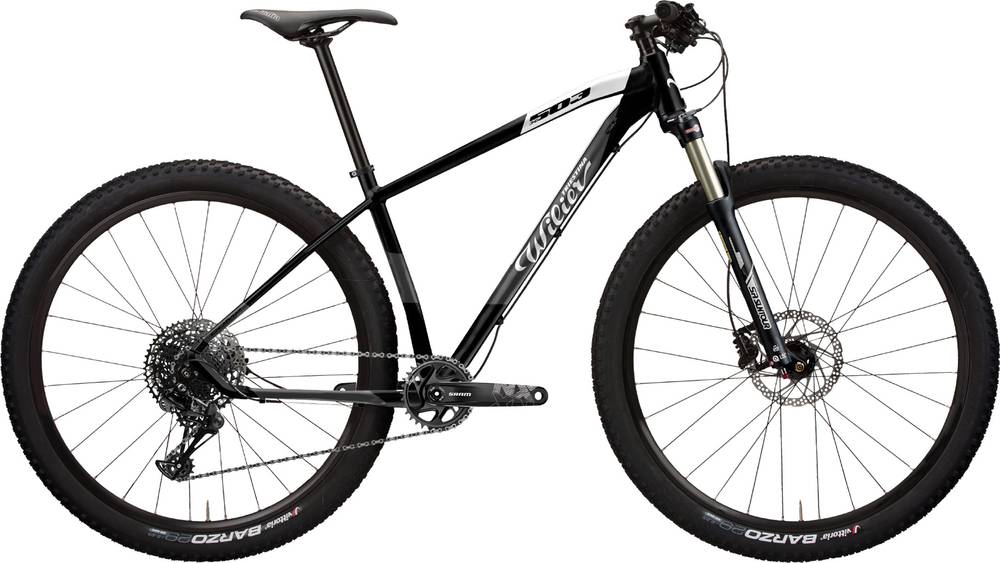

Wilier 503X COMP SRAM NX EAGLE 1X12 2019
2019 Mountain
Estimate price |
1,163$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset NX, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
SUNTOUR XCR32RLR 100 MM
Drivetrain
Rear Derailleur
SRAM Eagle NX 12S
Shift Levers
SRAM NX EAGLE 1X12
Cassette
SRAM EAGLE NX PG1230 11-50T 12S
Crank
SRAM FC Eagle DUB NX 30T
Bottom Bracket
SRAM DUB PRESS FIT
Chain
SRAM NX 12S
Wheels
Rims
WILIER TRIESTINA ROVER 29 ALU
Tires
VITTORIA BARZO RIGID 29X2.25"
Brakes
Brakes
SHIMANO BRMT400
Disk Rotors
SHIMANO RT010 180MM + 160MM, 6 BOLTS
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY CMP PRD15862
Seat
Saddle
SELLE ITALIA CUBIC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.49 mm | 1.46 mm |
| Stack | 620 mm | 631 mm | 642 mm | 653 mm |
| Reach | 398 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 112 mm | 124 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
503X COMP SRAM NX EAGLE 1X12 is part of the Wilier 503x model. Wilier released 17 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Wilier 503X COMP SRAM NX EAGLE 1X12 2019 is the most affordable bike of this model and has a price of 1062$. On the other hand, Wilier 503X RACE PRO SRAM GX EAGLE 1X12 2019, is the most expensive and costs 1646$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Wilier released this model in 2019, its price was 1062$. Comparing the average cost of a Crosscountry bike to this one, you will see that 503X COMP SRAM NX EAGLE 1X12 price is 79.38% smaller.
503X COMP SRAM NX EAGLE 1X12 components
Fork
The 503X COMP SRAM NX EAGLE 1X12 comes factory-installed with the SunTour XCR fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the 503X COMP SRAM NX EAGLE 1X12 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier 503X COMP SRAM NX EAGLE 1X12 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
503X COMP SRAM NX EAGLE 1X12 comes in 4 sizes, that range from 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, you can easily find one that suits you.
