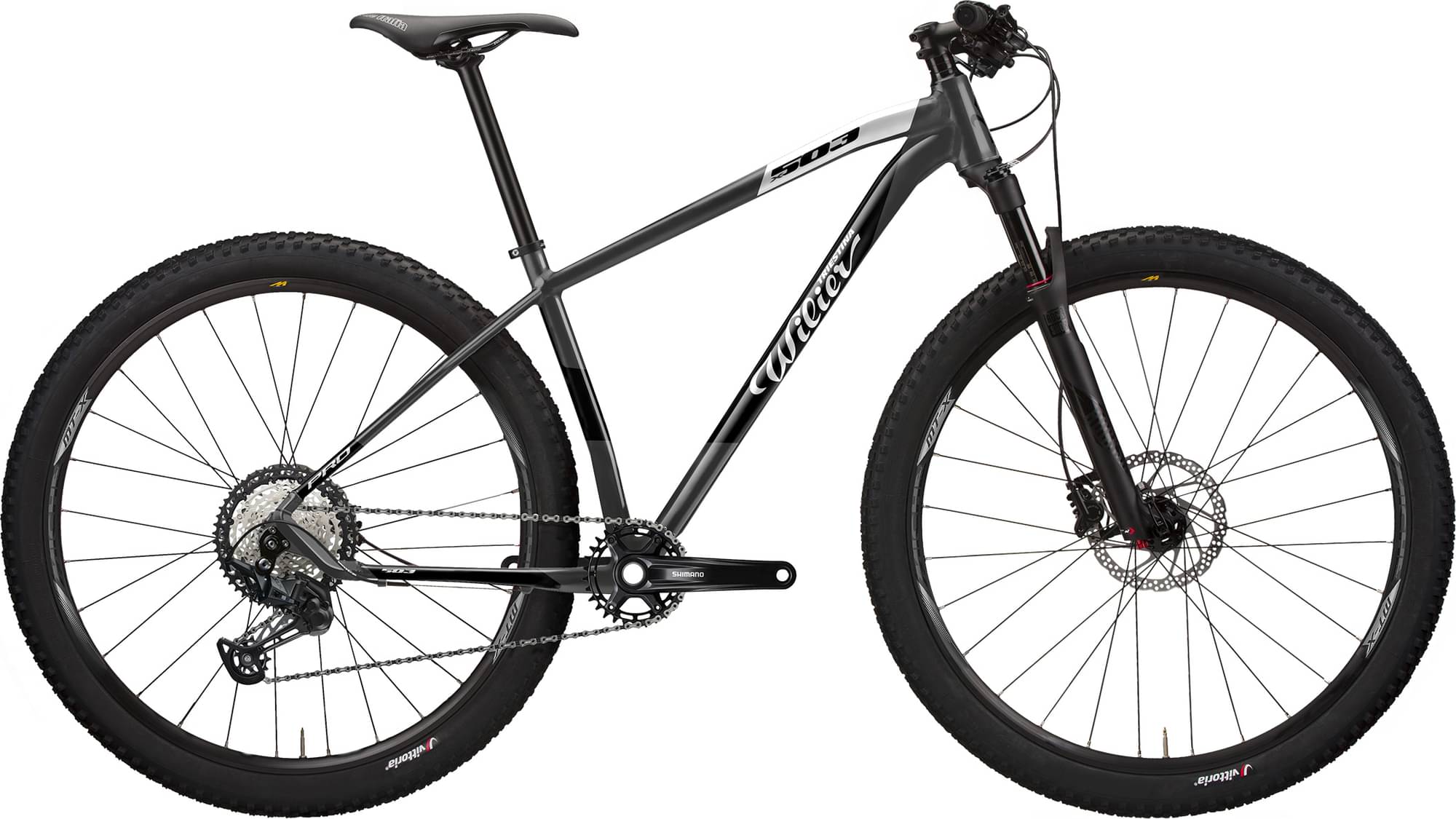

Wilier 503X PRO – SHIMANO SLX 1X12 2022
2022 Mountain
Estimate price |
1,548$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Shimano -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED, THRU-AXLE REAR DROPOUT 12 mm
Suspension Fork
ROCK SHOX RECON RL, 100 mm, BOOST
Drivetrain
Rear Derailleur
SHIMANO SLX 1X12 RD-M7100-SGS
Shift Levers
SHIMANO SLX 12S SL-M7100-R
Cassette
SHIMANO SLX 12S CS-M7100-12 10-51T
Crank
SHIMANO FC-MT510 32T
Bottom Bracket
SHIMANO PRESSFIT MT500-PA
Chain
SHIMANO SLX CN-M7100 118 LINK
Wheels
Rims
SHIMANO AWH-MT501
Tires
VITTORIA BARZO 29" x 2.25 Rigid
Brakes
Brakes
SHIMANO MT401
Disk Rotors
SHIMANO RT10 180 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY COMP PRD15862
Seat
Saddle
SELLE ITALIA MODEL X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.49 mm | 1.46 mm |
| Stack | 620 mm | 631 mm | 642 mm | 653 mm |
| Reach | 398 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 112 mm | 124 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
About this model
503X PRO – SHIMANO SLX 1X12 belongs to the Wilier 503x model. Wilier released 17 bikes variations of this model so far. Take a sneak peek at all Wilier 503x bikes models from 2022, by clicking here.
Model range prices
Wilier 503X COMP – SHIMANO DEORE 12S M6100 2022 is the most affordable bike of this model and has a price of 1062$. On the other hand, Wilier 503X PRO – SHIMANO SLX 1X12 2022, is the most expensive and costs 1433$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 1433$. Doing a quick comparison, we notice that 503X PRO – SHIMANO SLX 1X12 price is 32.94% lower than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Wilier 503X PRO – SHIMANO SLX 1X12 it’s weighing 12.7 kg (28 lbs). At this weight, is slightly heavier than average. In short, the average Crosscountry bike weight is 2.42% lower than this one.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Wilier 503X PRO – SHIMANO SLX 1X12 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier 503X PRO – SHIMANO SLX 1X12 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, you can easily find one that suits you.
