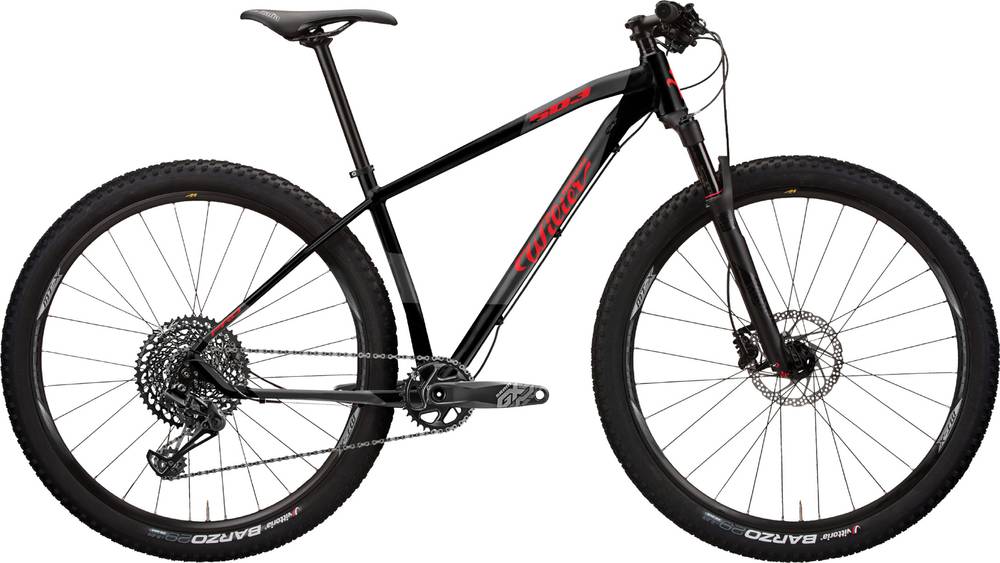

Wilier 503X RACE PRO SRAM GX EAGLE 1X12 2020
2020 Mountain
Estimate price |
1,803$
Weight | 12.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork RockShox Reba -
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX REBA RL
Drivetrain
Rear Derailleur
SRAM GX Eagle 12S
Shift Levers
SRAM GX EAGLE 1X12
Cassette
SRAM EAGLE XG-1275 10-50T 12S
Crank
SRAM GX Eagle DUB 32T
Bottom Bracket
SRAM GX PRESS FIT
Chain
SRAM EAGLE GX 12S
Wheels
Rims
MICHE MTX
Tires
VITTORIA BARZO RIGID 29X2.25"
Brakes
Brakes
SHIMANO BR-MT501
Disk Rotors
SHIMANO ST 54 180MM + 160MM, 6 BOLTS
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY CMP PRD15862
Seat
Saddle
SELLE ITALIA CUBIC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.49 mm | 1.46 mm |
| Stack | 620 mm | 631 mm | 642 mm | 653 mm |
| Reach | 398 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 112 mm | 124 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
503X RACE PRO SRAM GX EAGLE 1X12 belongs to the Wilier 503x model. Wilier released 17 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Wilier 503X COMP SHIMANO DEORE 12S M6100 2020 is the most affordable bike of this model and has a price of 1062$. On the other hand, Wilier 503X RACE PRO SRAM GX EAGLE 1X12 2020, is the most expensive and costs 1646$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Wilier released this model in 2020, its price was 1646$. Comparing this to the average Crosscountry bike price, we see that the price is 15.74% smaller.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Wilier 503X RACE PRO SRAM GX EAGLE 1X12 it’s weighing 12.3 kg (27.12 lbs). At this weight, is slightly lighter than average. In short, the average Crosscountry bike weight is 0.81% higher than this one.
Overview of components
Fork
Wilier 503X RACE PRO SRAM GX EAGLE 1X12 2020 bike is equipped with the RockShox Reba fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the 503X RACE PRO SRAM GX EAGLE 1X12 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Wilier 503X RACE PRO SRAM GX EAGLE 1X12 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, you can easily find one that suits you.
