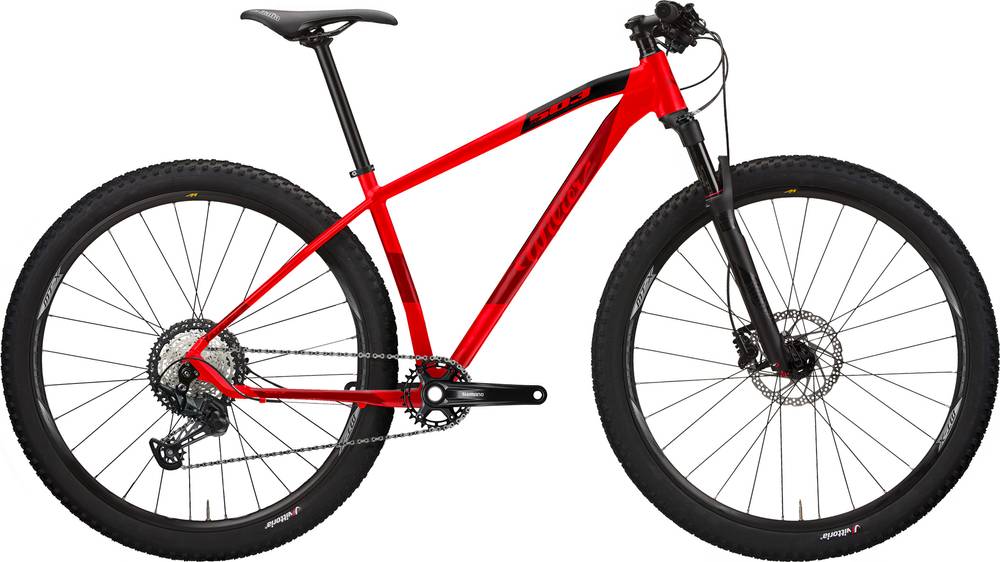

Wilier 503X RACE SHIMANO XT 1X12 2.0 2021
2021 Mountain
Estimate price |
1,663$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED, THRU-AXLE REAR DROPOUT 12 mm
Suspension Fork
ROCK SHOX REBA RL 100 mm
Drivetrain
Rear Derailleur
SHIMANO XT 1X12 RD-M8100-SGS
Shift Levers
SHIMANO SLX 1X12S SL-M7100-R
Cassette
SHIMANO SLX 12S CS-M7100-12 10-51T
Crank
SHIMANO FC-MT510 32T
Bottom Bracket
SHIMANO PRESSFIT MT500-PA
Chain
SHIMANO SLX CN-M7100 118 LINK
Wheels
Rims
SHIMANO AWH-MT501
Tires
VITTORIA BARZO 29" x 2.25 Rigid
Brakes
Brakes
SHIMANO MT401
Disk Rotors
SHIMANO RT30 180 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY COMP PRD15862
Seat
Saddle
SELLE ITALIA X-BASE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.49 mm | 1.46 mm |
| Stack | 620 mm | 631 mm | 642 mm | 653 mm |
| Reach | 398 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 112 mm | 124 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
503X RACE SHIMANO XT 1X12 2.0 is a Wilier 503x model. 17 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Wilier 503X PRO SHIMANO SLX 1X12 2021 is the most economical model, with a starting price of 1274$. Wilier 503X RACE SHIMANO XT 1X12 2.0 2021 on the other hand costs 1540$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 1540$. Comparing the average cost of a Crosscountry bike to this one, you will see that 503X RACE SHIMANO XT 1X12 2.0 price is 23.7% lower.
Overview of components
Fork
The 503X RACE SHIMANO XT 1X12 2.0 comes factory-installed with the RockShox Reba fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the 503X RACE SHIMANO XT 1X12 2.0 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier 503X RACE SHIMANO XT 1X12 2.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 156 cm – 194 cm (5.12 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
