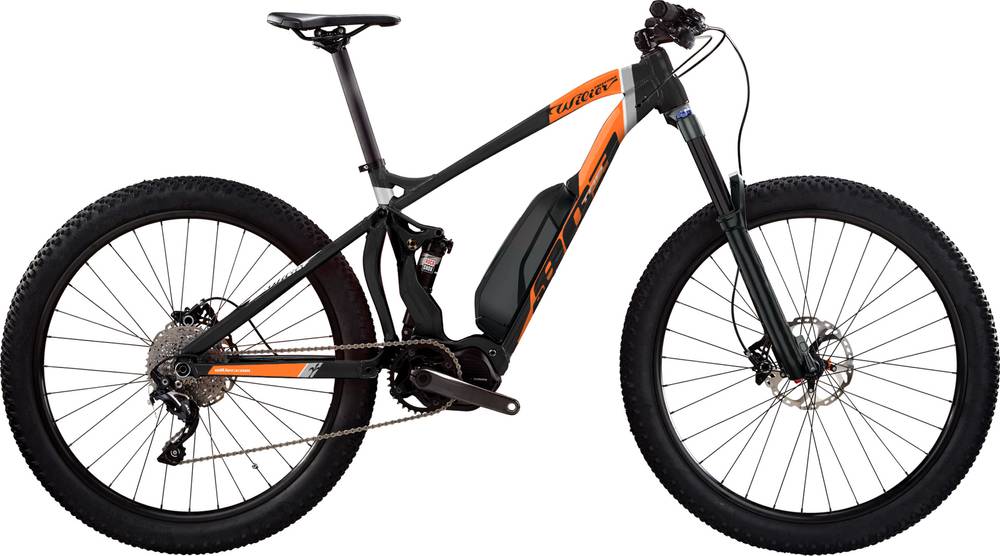

Wilier e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 2020
2020 E-bike
Estimate price |
4,473$
Weight | 20.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano -
Battery Shimano BT-8010 semi-integrated 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED, 140mm travel, BOOST thru-axle 12x148mm
Suspension Fork
Suntour AION 35 RLR boost thru-axle 140mm travel
Rear Shock
ROCK SHOX MONARCH RL
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000
Shift Levers
Shimano SL-M610
Cassette
Shimano HG-500 10S 11/42T
Crank
Shimano FC-E8000 34T
Chain
Shimano E6090
Wheels
Rims
WTB Scraper i40 + Shimano Deore boost Hubs
Tires
WTB Ranger 650B x 2.8
Brakes
Brakes
Shimano M6000
Disk Rotors
Shimano SM-RT64M F 203mm + R 180mm
Cockpit
Stem
Promax S35
Handlebar
Promax HB-3188TP rizer, 9°, 720mm width
Headset
FSA NO.57EP
Seat
Saddle
Selle San Marco Dirty TR Dynamic
Motor & Battery
Motor
Shimano BT-8010 semi-integrated 500 Wh
Battery
Shimano BT-8010 semi-integrated 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.3 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 419 mm | 443 mm | 469 mm | 490 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 is part of the Wilier E E803trb model. Wilier released 7 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Wilier e803TRB SHIMANO DEORE 1×10 2020 is the most economical model, with a starting price of 3610$. Wilier e803TRB Shimano XT 1x11S 2020 on the other hand costs 4459$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 4141$. In conclusion, this e-bike price is 23.06% more expensive than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 20.5 kg (45.19 lbs), the e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 model is much lighter than average. To sum up, it’s 15.61% lighter than the average weight of Trail e-bikes.
e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 components
Fork
The e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 comes factory-installed with the SunTour AION fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is ROCK SHOX MONARCH RL, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Wilier e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier e803TRB COMP: Shimano Deore 1x10S + Shimano Steps M8000 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 156 cm – 194 cm (5.12 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
