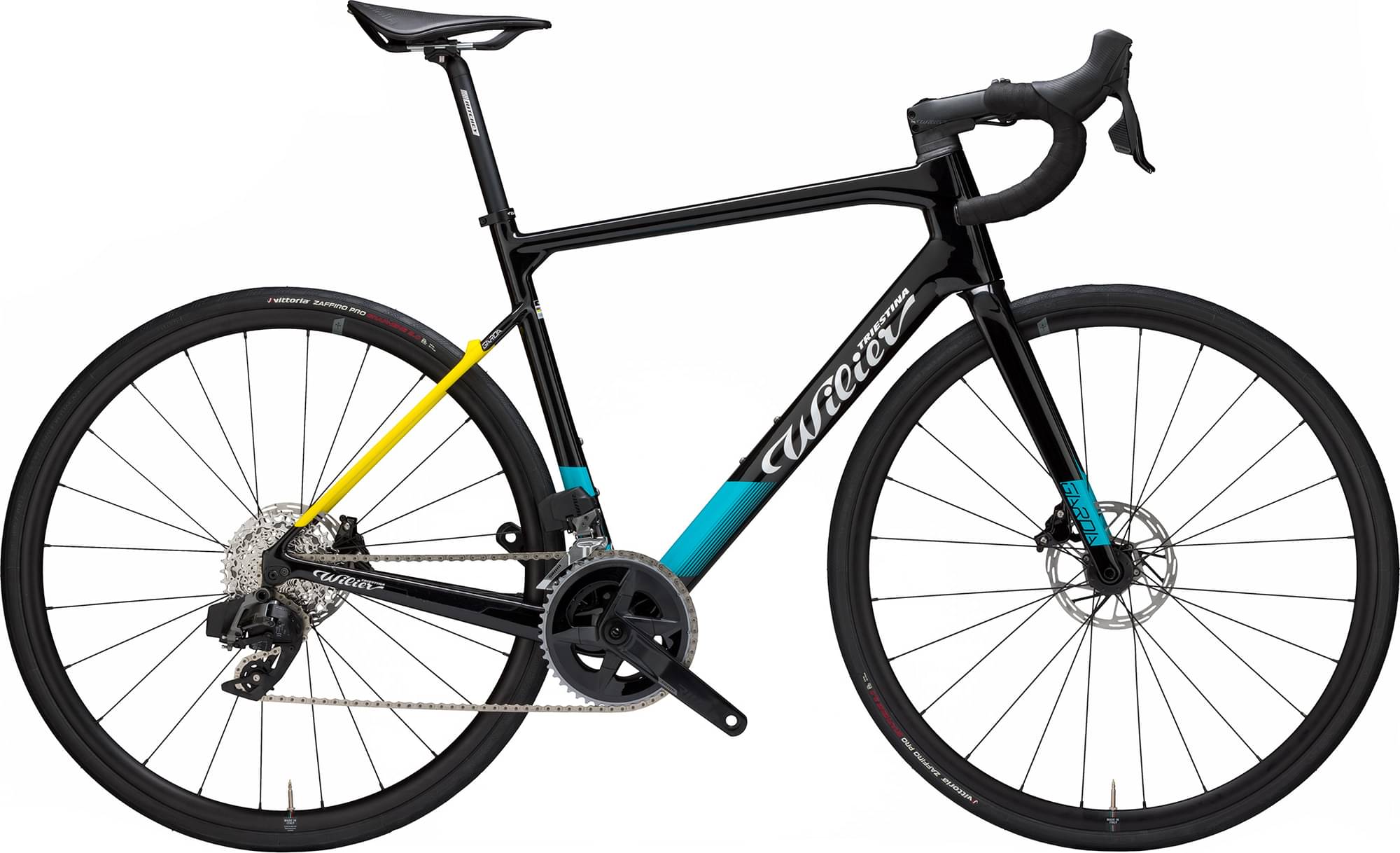

Wilier GARDA SRAM RIVAL AXS 12S 2022
2022 Road
Estimate price |
5,161$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GARDA DISC - CARBON MONOCOQUE
Suspension Fork
GARDA DISC - CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SRAM RIVAL ETAP AXS D1 MAX 36T
Front Derailleur
SRAM RIVAL ETAP AXS D1 BRAZE
Shift Levers
SRAM RIVAL ETAP AXS HRD-SHIFT BRAKE
Cassette
SRAM RIVAL CS-XG-1250-D1 10-36T
Crank
SRAM RIVAL DUB FC-RIV-D1 46/33
Bottom Bracket
SRAM DUB PRESSFIT 86.5 ROAD
Chain
SRAM RIVAL CN-RIV-D1 FLATTOP
Wheels
Rims
WILIER TRIESTINA NDR38KC CARBON DISC
Tires
VITTORIA ZAFFIRO PRO 4 700X28
Brakes
Brakes
SRAM ETAP AXS ED RIV ETAP AXS D1 SJD
Disk Rotors
SRAM CENTERLOCK PACELINE 160 mm / 160 mm
Cockpit
Stem
STEMMA S
Handlebar
BARRA S
Headset
FSA CUSTOM BEARINGS MR137
Seat
Saddle
SELLE ITALIA MODEL X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Stack | 517 mm | 533 mm | 550 mm | 568 mm | 586 mm | 604 mm |
| Reach | 375 mm | 380 mm | 385 mm | 390 mm | 395 mm | 400 mm |
| Top Tube Length | 513 mm | 528 mm | 543 mm | 558 mm | 582 mm | 602 mm |
| Seat Tube Angle | 75.2 ° | 74.6 ° | 74 ° | 73.5 ° | 73 ° | 72.6 ° |
| Seat Tube Length | 385 mm | 410 mm | 435 mm | 465 mm | 495 mm | 525 mm |
| Head Tube Angle | 70.5 ° | 71.7 ° | 72.15 ° | 72.65 ° | 72.8 ° | 73.1 ° |
| Head Tube Length | 112 mm | 125 mm | 144 mm | 161 mm | 179 mm | 197 mm |
| Chainstay Length | 411 mm | 411 mm | 413 mm | 413 mm | 416 mm | 416 mm |
| Wheelbase | 983 mm | 983 mm | 992 mm | 998 mm | 1011 mm | 1018 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
Model Overview
GARDA SRAM RIVAL AXS 12S is part of the Wilier Garda model. Wilier launched 12 bikes of this model so far. Take a sneak peek at all Wilier Garda bikes models from 2022, by clicking here.
Model range prices
Wilier GARDA SHIMANO ULTEGRA R8000 2022 is the most economical model, with a starting price of 2867$. Wilier GARDA CAMPAGNOLO CHORUS 2022 on the other hand costs 4990$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 4778$. Doing a quick comparison, we notice that GARDA SRAM RIVAL AXS 12S price is 103.67% higher than the average cost of an Endurance bike.
Average weight for Endurance bikes
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 8.7 kg (19.18 lbs), Wilier bike is a bit heavier than average. In short, the average Endurance bike weight is 6.1% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on GARDA SRAM RIVAL AXS 12S are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Wilier GARDA SRAM RIVAL AXS 12S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
