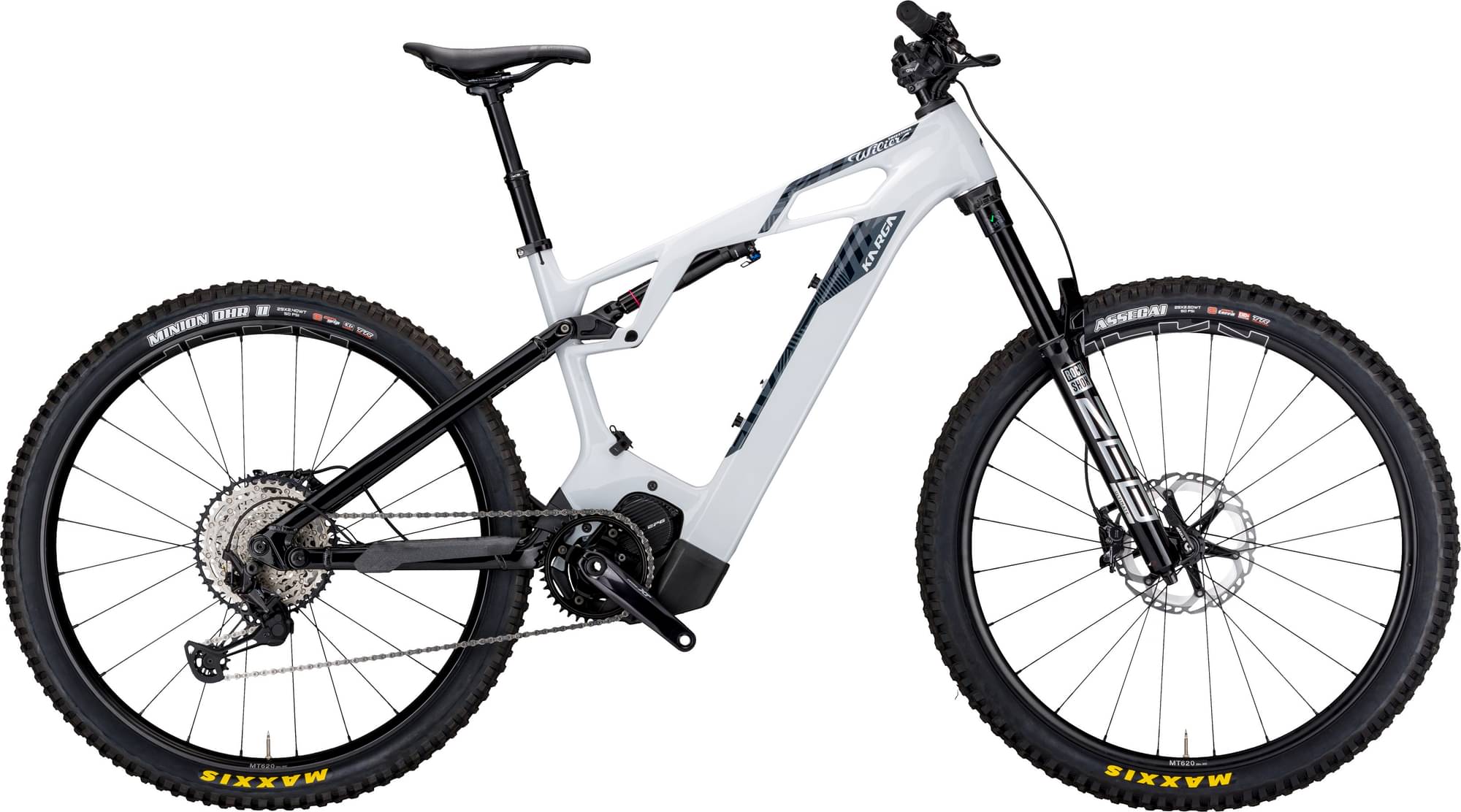

Wilier Karga SHIMANO XT 2.0 + EP801 2023
2023 E-bike
Estimate price |
8,832$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox Domain
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery SIMPLO TPS-002 in-tube battery pack -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CARBON FRONT TRIANGLE, ALU REAR STAYS
Suspension Fork
ROCK SHOX DOMAIN R, 160 mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 - SGS
Shift Levers
SHIMANO DEORE M6100RA
Cassette
SHIMANO DEORE CS-M6100-12, 10-51T
Crank
SHIMANO CRANK ARM SET FC-EM600
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
SHIMANO MT620
Tires
VITTORIA MAZZA 29" x 2.4
Brakes
Brakes
SHIMANO MT401 4 pistons
Cockpit
Stem
COMET STEM
Handlebar
COMET HBAR
Headset
TOKEN HEADSET
Seat
Saddle
VELO SADDLE
Seatpost
KS DROPPER POST lev si
Motor & Battery
Motor
SHIMANO DRIVE UNIT DU-EP801
Battery
SIMPLO TPS-002 in-tube battery pack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm | 1.27 mm |
| Stack | 623 mm | 630 mm | 637 mm | 644 mm |
| Reach | 433 mm | 458 mm | 483 mm | 508 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Wheelbase | 1216 mm | 1244 mm | 1272 mm | 1301 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
Karga SHIMANO XT 2.0 + EP801 is part of the Wilier E Karga model. There are 3 e-bikes that carry this model name. You can easily view all of the Wilier E Karga e-bikes models from 2023, here.
Model range prices
Wilier Karga SHIMANO DEORE + EP6 2023 is the most affordable e-bike of this model and has a price of 7095$. On the other hand, Wilier Karga SHIMANO XT + EP801 2023, is the most expensive and costs 9424$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8154$. Doing a quick comparison, we notice that Karga SHIMANO XT 2.0 + EP801 price is 70.41% more expensive than the average cost of an Enduro e-bike.
Karga SHIMANO XT 2.0 + EP801 components
Fork
Wilier Karga SHIMANO XT 2.0 + EP801 2023 e-bike is equipped with the RockShox Domain fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Karga SHIMANO XT 2.0 + EP801 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Wilier Karga SHIMANO XT 2.0 + EP801 e-bike has 4 sizes, in the range of 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Karga SHIMANO XT 2.0 + EP801. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
