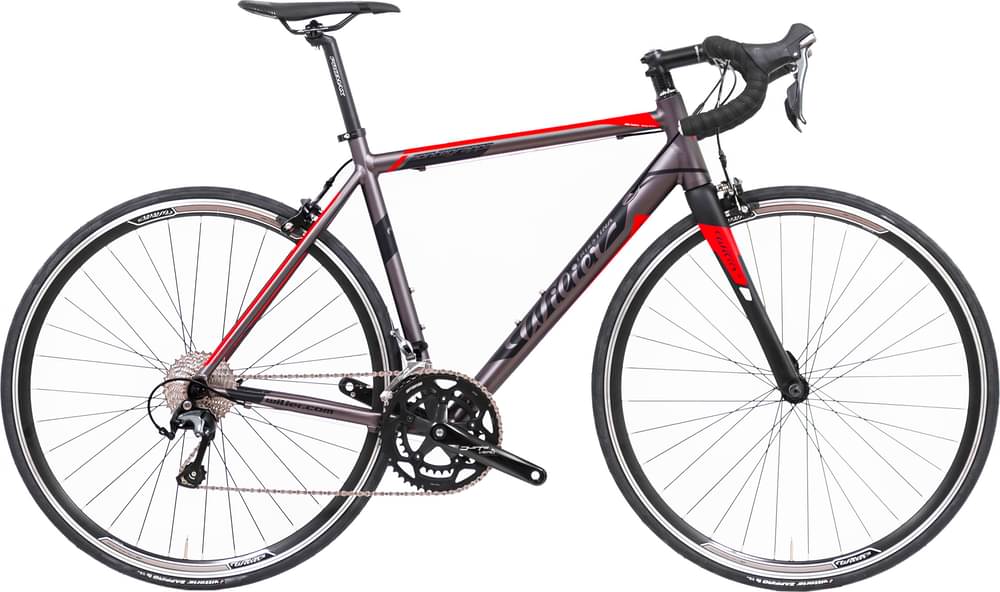

Wilier Montegrappa Shimano Tiagra 4700, 10S 2020
2020 Road
Estimate price |
1,163$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, double butted
Suspension Fork
Carbon monocoque
Drivetrain
Rear Derailleur
Shimano Tiagra 4700, 10S
Front Derailleur
Shimano Tiagra 4700, 10S
Shift Levers
Shimano Tiagra 4700, 10S
Cassette
Shimano HG-500, 10S 12/28T
Crank
FSA Vero, 50/34T
Chain
KMC X-10
Wheels
Rims
Wilier Triestina MRX-30
Tires
Vittoria Zaffiro Pro 4 700X25 MM
Brakes
Brakes
Shimano R-312 short reach, Black
Cockpit
Stem
Promax
Handlebar
Promax
Headset
Ritchey COMP tapered PRD18228
Seat
Saddle
Velo, black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.45 mm | 1.48 mm | 1.52 mm |
| Stack | 502 mm | 526 mm | 547 mm | 567 mm | 591 mm |
| Reach | 363 mm | 369 mm | 376 mm | 382 mm | 389 mm |
| Top Tube Length | 507 mm | 522 mm | 537 mm | 552 mm | 572 mm |
| Seat Tube Angle | 74.5 ° | 74.2 ° | 73.85 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 396 mm | 396 mm | 397 mm | 397 mm | 398 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
Model Overview
Montegrappa Shimano Tiagra 4700, 10S belongs to the Wilier Montegrappa model. Wilier launched 6 bikes of this model so far. Take a sneak peek at all Wilier Montegrappa bikes models from 2020, by clicking here.
Model range prices
Wilier Montegrappa Shimano Tiagra 4700, 10S 2020 is the cheapest bike model and costs 1062$. Wilier Montegrappa 2020 is the most expensive one and costs 1062$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Wilier Montegrappa Shimano Tiagra 4700, 10S price was 1062$. If we compare this with the average Endurance bike cost we notice that the price is 120.9% lower.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 9.5 kg (20.94 lbs), the Montegrappa Shimano Tiagra 4700, 10S model is much heavier than average. To sum up, it’s 15.85% heavier than the average weight of Endurance bikes.
Montegrappa Shimano Tiagra 4700, 10S components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Montegrappa Shimano Tiagra 4700, 10S model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Montegrappa Shimano Tiagra 4700, 10S has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 152 cm – 186 cm (4.99 ft – 6.1 ft). In conclusion, you won’t have a problem finding one that suits you.
