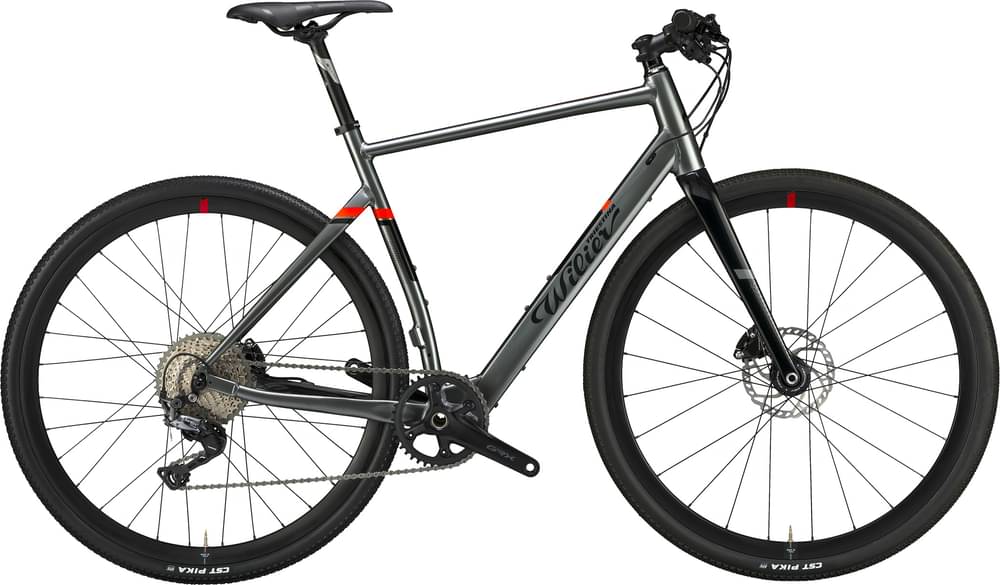

Wilier TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR 2022
2022 E-bike
Estimate price |
3,728$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, 105 -
Suspension Rigid -
Motor MAHLE hub-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRIESTINA HYBRID - ALU 6061, DOUBLE BUTTED
Suspension Fork
TRIESTINA HYBRID CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX812
Shift Levers
SHIMANO SLRS700
Cassette
SHIMANO CS-M7000-11 11-42T
Crank
SHIMANO GRX FC-RX600-1 40T
Bottom Bracket
SHIMANO BBRS500PB
Chain
SHIMANO GRX CN-HG601-11 114 LINK
Wheels
Rims
WILIER TRIESTINA HY-NDR28AC
Tires
VITTORIA TERRENO MIX RIGID 700x33
Brakes
Brakes
SHIMANO BR-RS405 + BLRS600
Disk Rotors
SHIMANO SM-RT66 6 BOLTS 160 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018DB 12° FLARE OUT
Headset
RITCHEY PRD15862
Seat
Saddle
SELLE ITALIA X-BASE
Motor & Battery
Motor
MAHLE EBIKEMOTION X35+
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm | 1.55 mm |
| Stack | 526 mm | 545 mm | 565 mm | 585 mm | 603 mm |
| Reach | 368 mm | 373 mm | 378 mm | 383 mm | 388 mm |
| Top Tube Length | 514 mm | 530 mm | 546 mm | 557 mm | 573 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 117 mm | 136 mm | 157 mm | 177 mm | 196 mm |
| Chainstay Length | 405 mm | 405 mm | 407 mm | 407 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
Model Overview
TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR is part of the Wilier E Triestina model. Wilier released 13 e-bikes variations of this model so far. You can easily view all of the Wilier E Triestina e-bikes models from 2022, here.
Model range prices
Wilier TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR 2022 is the most economical model, with a starting price of 3451$. Wilier TRIESTINA HYBRID SHIMANO 105 R7020 DROP BAR 2022 on the other hand costs 3929$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Wilier released this model in 2022, its price was 3451$. Comparing this to the average Gravel e-bike price, we see that the price is 5.53% smaller.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR comes in 5 sizes, that range from 152 cm – 186 cm (4.99 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
