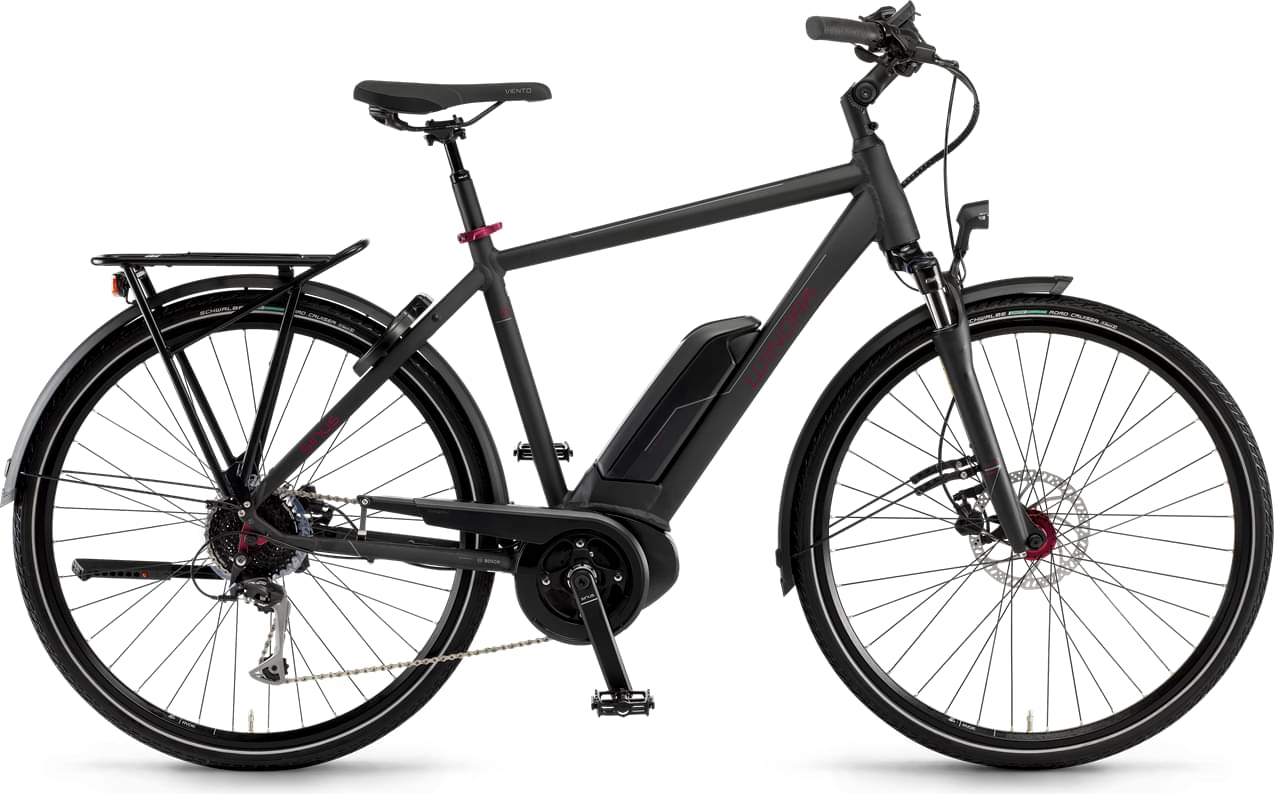

winora Sinus Tria 9 2024
2024 E-bike
Estimate price |
3,373$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch, PowerPack, 500 Wh -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, hydroformed, THT, Bosch Interface, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 50 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Rear Derailleur
Shimano, Alivio T4000
Shift Levers
Shimano, Altus M2000, Rapidfire, 9 speed
Cassette
Shimano, HG200, 11 - 34 teeth
Crank
Lasco, Aluminium, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e9S
Chain Guide
Horn, Catena 18F
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Road Cruiser, 42-622, 28" x 1.60"
Brakes
Brakes
Rim
Brake Levers
Tektro, T275, Aluminium
Cockpit
Stem
Alu, winkelverstellbar, Bar bore: 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Selle Royal, Viento
Seatpost
Patent suspension, 31.6 mm, Aluminium
Motor & Battery
Motor
Bosch, Active Plus, 250 W, 50 Nm, 25 km/h
Battery
Bosch, PowerPack, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.493 mm | 1.487 mm | 1.487 mm |
| Front Center | 644 mm | 660 mm | 674 mm | 690 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 76 mm | 75 mm | 76 mm | 76 mm |
| Stack | 606 mm | 615 mm | 629 mm | 644 mm |
| Reach | 400 mm | 412 mm | 423 mm | 433 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 135 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1112 mm | 1128 mm | 1143 mm | 1159 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 770 mm | 785 mm | 810 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Sinus Tria 9 is part of the Winora E Sinus model. Winora released 18 e-bikes variations of this model so far. Take a sneak peek at all Winora E Sinus e-bikes models from 2024, by clicking here.
Model range prices
Winora Sinus Tria 9 2024 is the most economical model, with a starting price of 3070$. Winora Sinus R380 auto 2024 on the other hand costs 5082$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Winora released this model in 2024, its price was 3070$. Comparing this to the average Commuter e-bike price, we see that the price is 19.5% more expensive.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Sinus Tria 9 weighs 23.9 kg (52.69 lbs) and is a bit lighter than the average. In short, the average Commuter e-bike weight is 5.44% higher than this one.
Overview of components
Fork
The Sinus Tria 9 comes factory-installed with the Suntour NEX fork. This has a travel range of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Sinus Tria 9 has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Winora Sinus Tria 9 2024, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sinus Tria 9 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
