Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube, 720 Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour, XCM32 ATB DS LO, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Acera M3020-8
Shift Levers
Shimano, Altus M315, Rapidfire
Cassette
Shimano, CS-HG400-8
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, X8
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Contact Cruiser, 62-584, 27.5" x 2.4"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT201, Aluminium,
Cockpit
Stem
XLC, A-Head verstellbar, A-head, 31.8 mm
Handlebar
Ergoriser, oversize, 720 mm
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal, Wave
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.555 mm | 1.519 mm | 1.512 mm | 1.481 mm | 1.441 mm |
| Front Center | 712 mm | 722 mm | 739 mm | 764 mm | 787 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm | 85 mm |
| Stack | 656 mm | 656 mm | 670 mm | 684 mm | 693 mm |
| Reach | 422 mm | 432 mm | 443 mm | 462 mm | 481 mm |
| Top Tube Length | 610 mm | 620 mm | 635 mm | 658 mm | 680 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 170 mm | 180 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1171 mm | 1181 mm | 1198 mm | 1223 mm | 1246 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview

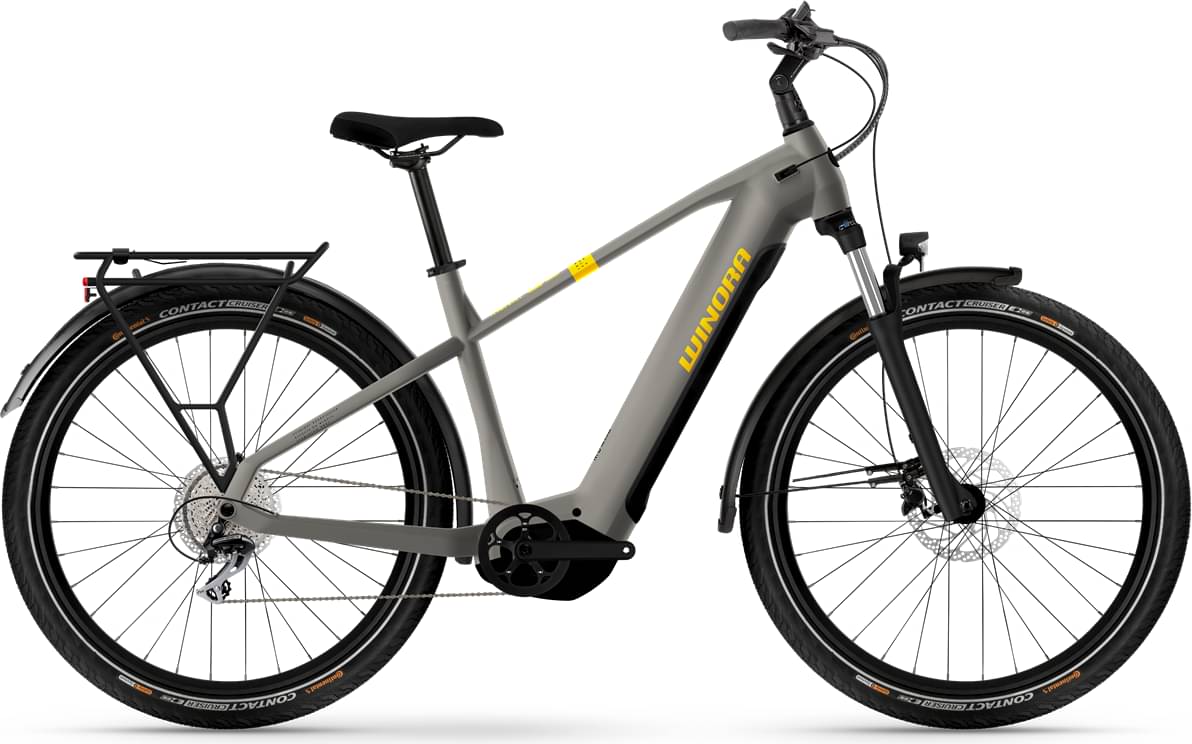

Yucatan X8 is a Winora E Yucatan model. Winora released 6 e-bikes variations of this model so far. Take a sneak peek at all Winora E Yucatan e-bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Winora Yucatan 8 2024 has a starting price of 3070$. Winora Yucatan X12 Pro 2024 on the other hand is the most expensive at 4870$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3599$. Comparing this to the average Hybrid e-bike price, we see that the price is 45.12% more expensive.
Yucatan X8 components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Yucatan X8 has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Yucatan X8 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Winora Yucatan X8 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
