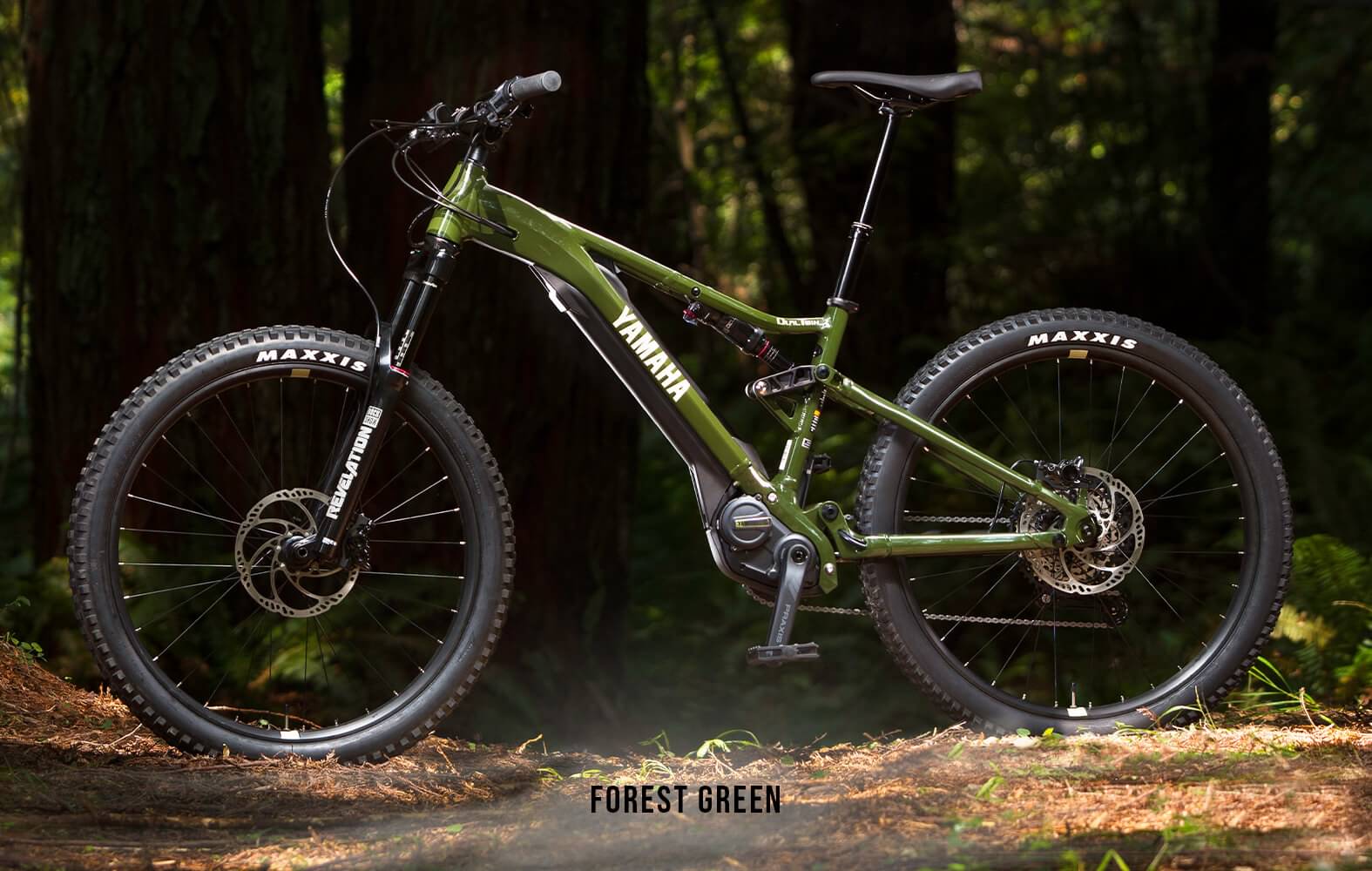

Yamaha YDX-Moro 05 2023
2023 E-bike
Estimate price |
5,799$
Weight | 23.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Revelation RC
-
Groupset Deore, Praxis -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100% -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
YAMAHA Dual Twin Frame, Tapered Headtube, Internal cable/housing routing, 2-bolt drive unit mount, 12x148 rear axle spacing, Integrated YAMAHA speed sensor harness
Suspension Fork
ROCKSHOX REVELATION RC, 160mm TRAVEL, 35mm Stanchion eMTB rated Motion Control damping with low-speed compression adjustment DebonAir air spring
Rear Shock
ROCKSHOX DELUXE SELECT +, 150mm travel, 210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment
Drivetrain
Rear Derailleur
Shimano DEORE RD-M6100-SGS
Front Derailleur
N/A
Shift Levers
Shimano DEORE SL-M6100-R
Cassette
Shimano SLX CS-M7100-12, 12-spd, (10-51T)
Crank
PRAXIS 36T
Chain
KMC eTURBO EPT 122 links
Wheels
Front Hub
Anodized Alloy, Centerlock brake mount, 15x110mm BOOST+ (front), 12x148mm MicroSpline freehub Quick Release Thru Axle Type
Rear Hub
Anodized Alloy, Centerlock brake mount, 15x110mm BOOST+ (front), 12x148mm MicroSpline freehub Quick Release Thru Axle Type
Rims
YAMAHA 27.5+ Alloy, Tubeless tape installed, Width: 46mm (outside) 40mm (inside)
Spokes
14g alloy SUS304
Tires
MAXXIS 27.5X2.6, (F) MINION DHF (R) REKON
Brakes
Brakes
MAGURA MT30, (F) 4-PISTON (R) 2-PISTON, 203MM CENTER LOCK ROTOR (F/R), Two-finger lever
Cockpit
Stem
Alloy 4-both faceplate, 35.0 diameter, 40mm length
Handlebar
Alloy, 35.0 diameter, 780mm width, 30mm rise
Grips
VELO Single Ring Locking
Headset
Integrated 1 1/8"
Seat
Saddle
YAMAHA anti-slip finish with hand rail tail
Seatpost
TRANS-X 30.9 dia. TRAVEL (S) 125mm (M) 150mm (L) 170mm
Motor & Battery
Motor
YAMAHA PW-X3 Class 1 Labeled Centermount ISIS SplinedCrankarm Spindle YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes, Rate power: 250W (nominal), 500W(maximum), Max torque: 85Nm, Max speed support: 20MPH, Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100%
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.567 mm | 1.43 mm | 1.305 mm |
| Stack | 616 mm | 625 mm | 629 mm |
| Reach | 393 mm | 437 mm | 482 mm |
| Top Tube Length | 572 mm | 619 mm | 666 mm |
| Seat Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm |
| Standover Height | 741 mm | 751 mm | 759 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
YDX-Moro 05 belongs to the Yamaha E Ydx Moro model. Yamaha released 8 e-bikes variations of this model so far. You can easily view all of the Yamaha E Ydx Moro e-bikes models from 2023, here.
Model range prices
Yamaha YDX-Moro 2023 is the most economical model, with a starting price of 4799$. Yamaha YDX-Moro 07 2023 on the other hand costs 6399$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 5799$. Comparing this to the average Enduro e-bike price, we see that the price is 21.19% more expensive.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
YDX-Moro 05 weighs 23.18 kg (51.1 lbs) and is slightly lighter than the average. In conclusion, the average Enduro e-bike weighs 1.04% more than YDX-Moro 05.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Yamaha YDX-Moro 05 2023 e-bike is equipped with the RockShox Revelation RC fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is ROCKSHOX DELUXE SELECT +, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the YDX-Moro 05 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The YDX-Moro 05 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Yamaha YDX-Moro 05 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Yamaha YDX-Moro 05 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
