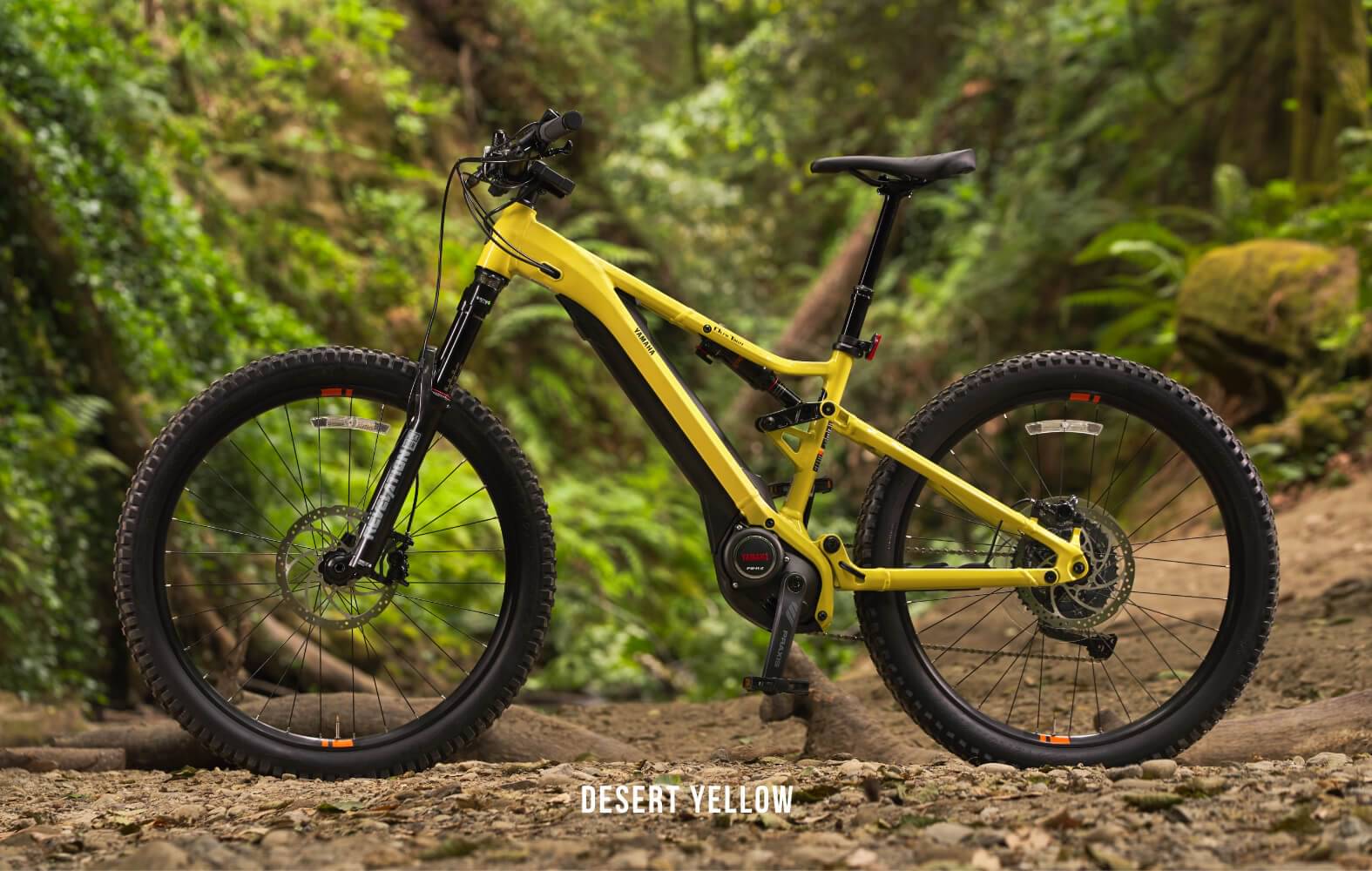

Yamaha YDX-Moro 2022
2022 E-bike
Estimate price |
4,499$
Weight | 24.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Revelation RC
-
Groupset SLX, Praxis -
Suspension Full -
Motor 250W 80Nm mid-drive -
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Multilocation with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yamaha Dual Twin Frame, Tapered headtube, Internal cable/housing routing, 2-bolt motor mount, 12 x 148 rear spacing, Integrated speed sensor harness
Suspension Fork
RockShox Revelation RC Boost 160mm, Tapered aluminum steerer, 1 1/8in - 1 1/2in
Rear Shock
RockShox Deluxe Select +, 210mm/55mm, 150mm travel
Drivetrain
Rear Derailleur
Shimano SLX Long-Cage
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-speed, 11/46T
Crank
Praxis Wave 36T 104 BCD, PRAXIS ISIS, 170mm
Chain
KMC e11 Turbo
Wheels
Front Hub
Anodized, Centerlock brake mount, Front hub 15 x 110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
Rear Hub
Anodized, Centerlock brake mount, Front hub 15 x 110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
Rims
Yamaha 27.5+ Alloy, Tubeless tape installed, Width: 46mm (OUTSIDE) 40mm (INSIDE)
Spokes
Spokes SUS304
Tires
Rear: CST Patrol 27.5 x 2.8in Front: CST BFT 27.5 x 2.8in, Tubeless compatible rim, Tubeless compatible rim strip
Brakes
Brakes
Magura MT30 Front: 4-piston Rear: 2-piston, 203mm Storm CL Rotors
Cockpit
Stem
Yamaha Alloy 4-bolt faceplate, 35.0 diameter, 40mm length
Handlebar
Alloy 30mm riser bar, 35.0mm diameter, 780mm width
Headset
Integrated tapered headset with headset spacers
Seat
Saddle
Yamaha Anti-slip finish with hand rail tail
Seatpost
Alloy 30.9mm dropper post (S/M) 125mm travel, (L) 150mm travel
Motor & Battery
Motor
PW-X2, Center mount, ISIS splined spindle, Quad Sensor System with integrated speed sensor as part of rear hub, Weight: 6.83lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 80Nm, Max cadence support: 170rpm, Max speed support: 20mph, Support modes: ECO, STD, HIGH, EXPW, AUTOMATIC (ECO-STD-HIGH), Protective motor cover included
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Multilocation with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.43 mm | 1.3 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 689 mm | 737 mm | 785 mm |
| Rake | 37 mm | 38 mm | 37 mm |
| Trail | 116 mm | 115 mm | 116 mm |
| Stack | 618 mm | 626 mm | 631 mm |
| Reach | 395 mm | 439 mm | 485 mm |
| Top Tube Length | 579 mm | 626 mm | 673 mm |
| Seat Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° |
| Seat Tube Length | 390 mm | 400 mm | 410 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 111 mm | 120 mm | 125 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1164 mm | 1212 mm | 1260 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm |
| Standover Height | 753 mm | 762 mm | 770 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
YDX-Moro belongs to the Yamaha E Ydx Moro model. There are 8 e-bikes that carry this model name. You can easily view all of the Yamaha E Ydx Moro e-bikes models from 2022, here.
Model range prices
Yamaha YDX-Moro 2022 is the cheapest e-bike model and costs 4499$. Yamaha YDX-Moro PRO 2022 is the most expensive one and costs 5499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Yamaha YDX-Moro price was 4499$. In conclusion, this e-bike price is 6.36% smaller than the price of the average Enduro e-bike.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, YDX-Moro has a weight of 24.18 kg (53.31 lbs). In conclusion, the average Enduro e-bike weighs 3.25% less than YDX-Moro.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
YDX-Moro components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The YDX-Moro has a rear shock with a travel of 150mm. The model RockShox Deluxe Select + is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The YDX-Moro 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The YDX-Moro has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Yamaha YDX-Moro includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
