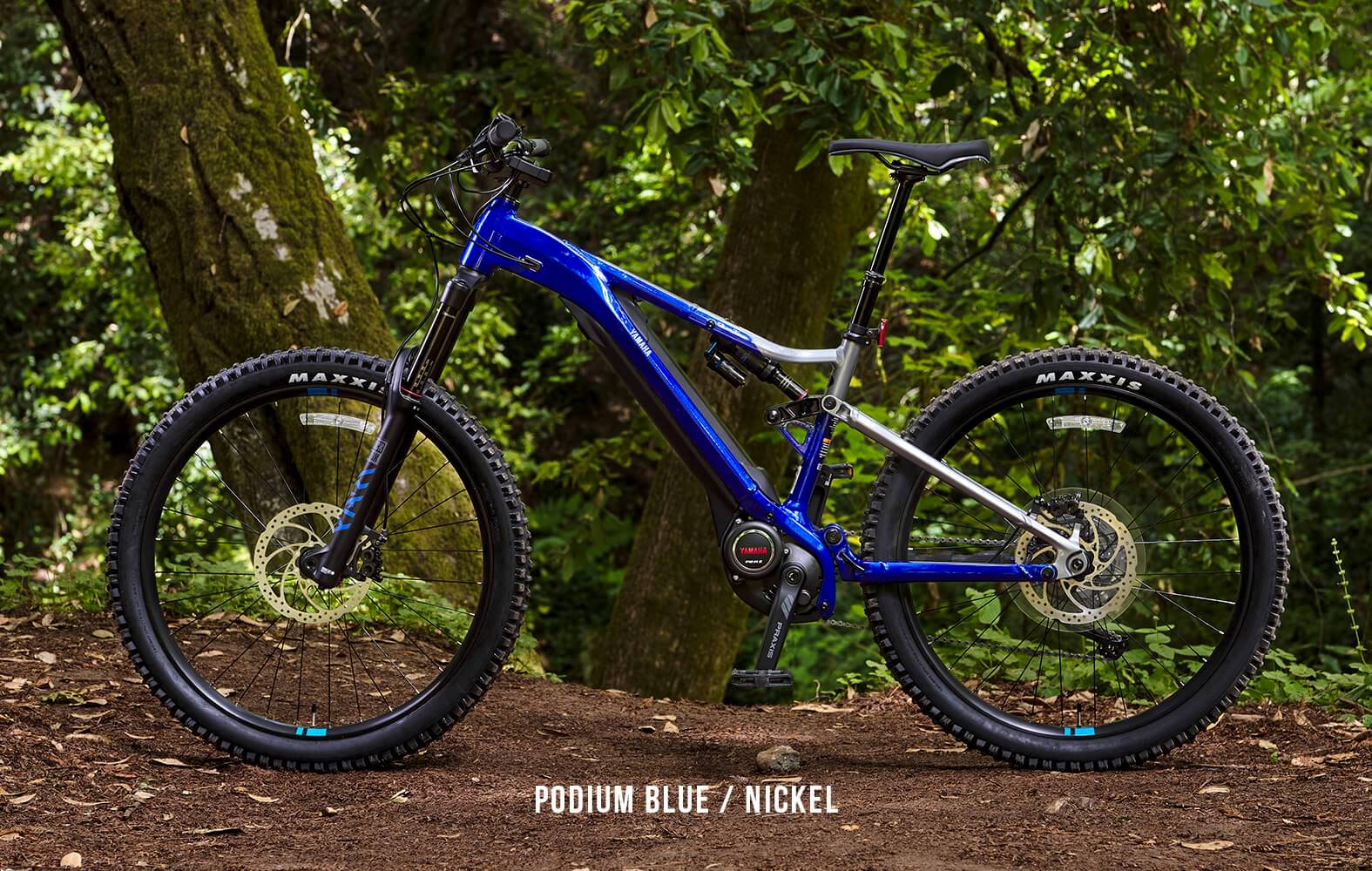

Yamaha YDX-Moro PRO 2023
2023 E-bike
Estimate price |
5,499$
Weight | 24.09 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, Praxis -
Suspension Full -
Motor Yamaha 250W 80Nm mid-drive -
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Multilocation with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yamaha Dual Twin Frame, Tapered headtube, Internal cable/housing routing, 2-bolt motor mount, 12 x 148 rear spacing, Integrated speed sensor harness
Suspension Fork
RockShox YARI RC Boost 160mm, Tapered aluminum steerer, 1 1/8in - 1 1/2in
Rear Shock
RockShox Super Deluxe Select +, 210mm/55mm, 150mm travel
Drivetrain
Rear Derailleur
Shimano XT Long-Cage
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT, 11-speed, 11/46T
Crank
Praxis Wave 36T 104 BCD, PRAXIS ISIS, 170mm
Chain
KMC e11 Turbo EPT
Wheels
Front Hub
Anodized, Centerlock brake mount, 15X110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
Rear Hub
Anodized, Centerlock brake mount, 15X110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
Rims
Yamaha 27.5+ Alloy, Tubeless tape installed, Width: 46mm (OUTSIDE) 40mm (INSIDE)
Spokes
Spokes SUS304
Tires
Maxxis High Roller II 27.5 x 2.8in, Tubeless compatible rim, Tubeless compatible rim strip
Brakes
Brakes
Magura MT30 Front/Rear: 4-piston, 203mm Storm CL Rotors
Cockpit
Stem
Yamaha Alloy 4-bolt faceplate, 35.0 diameter, 40mm length
Handlebar
Alloy 30mm riser bar, 35.0mm diameter, 780mm width
Headset
Integrated tapered headset with headset spacers
Seat
Saddle
Yamaha Anti-slip finish with hand rail tail
Seatpost
Alloy 30.9mm dropper post (S/M) 125mm travel, (L) 150mm travel
Motor & Battery
Motor
PW-X2, Center mount, ISIS splined spindle, Quad Sensor System with integrated speed sensor as part of rear hub, Weight: 6.83lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 80Nm, Max cadence support: 170rpm, Max speed support: 20mph, Support modes: ECO, STD, HIGH, EXPW, AUTOMATIC (ECO-STD-HIGH), Protective motor cover included
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Multilocation with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.43 mm | 1.3 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 689 mm | 737 mm | 785 mm |
| Rake | 37 mm | 38 mm | 37 mm |
| Trail | 116 mm | 115 mm | 116 mm |
| Stack | 618 mm | 626 mm | 631 mm |
| Reach | 395 mm | 439 mm | 485 mm |
| Top Tube Length | 579 mm | 626 mm | 673 mm |
| Seat Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° |
| Seat Tube Length | 390 mm | 400 mm | 410 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 111 mm | 120 mm | 125 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1164 mm | 1212 mm | 1260 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm |
| Standover Height | 753 mm | 762 mm | 770 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
YDX-Moro PRO belongs to the Yamaha E Ydx Moro model. There are 8 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Yamaha YDX-Moro 2023 is the most economical model, with a starting price of 4799$. Yamaha YDX-Moro 07 2023 on the other hand costs 6399$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5499$. In conclusion, this e-bike price is 14.92% more expensive than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 24.09 kg (53.11 lbs), Yamaha e-bike is slightly heavier than average. In short, the average Enduro e-bike weight is 2.86% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Select + model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The YDX-Moro PRO 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Yamaha YDX-Moro PRO comes with a dropper post. Therefore, climbing or descending will be a breeze.
