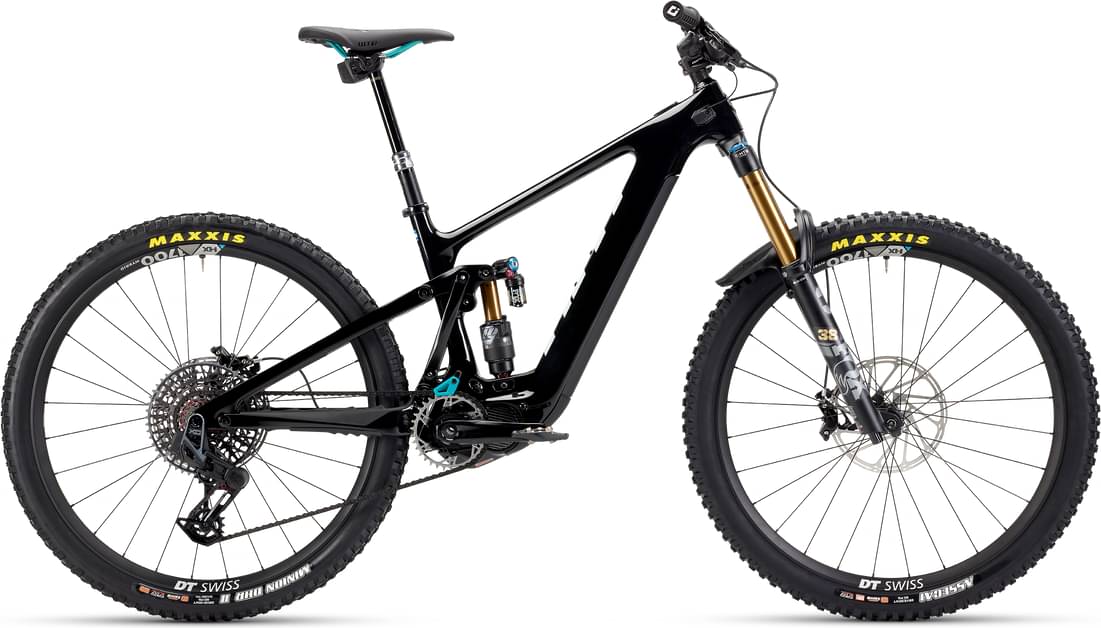

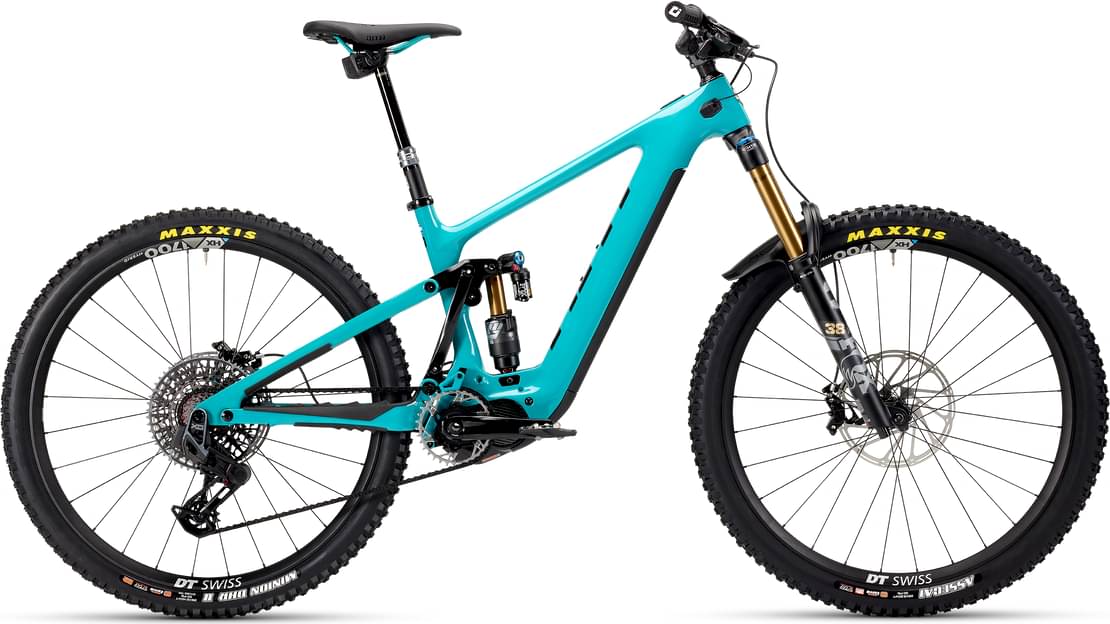

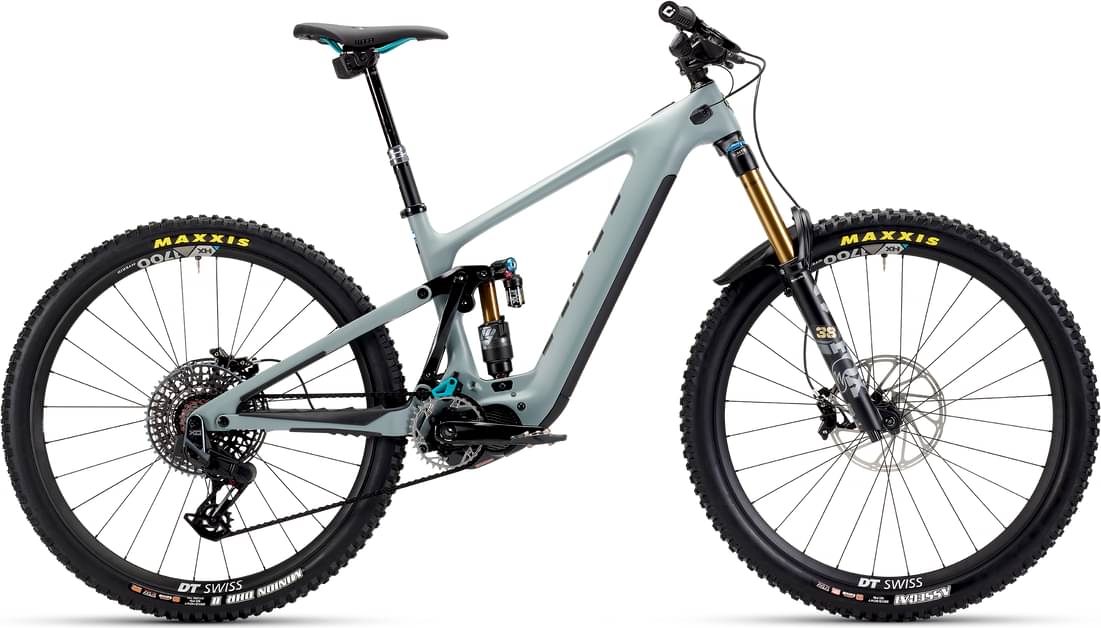

Yeti 160E T3 X0 Transmission 2024
2024 E-bike
Estimate price |
12,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Shimano mid-drive -
Battery SHIMANO 630Wh INTERNAL BATTERY -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Sixfinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 38 GRIP 2/170MM
Rear Shock
FOX FACTORY FLOAT X2
Drivetrain
Rear Derailleur
SRAM X0 EAGLE AXS TRANSMISSION
Shift Levers
SRAM AXS POD CONTROLLER
Cassette
SRAM X0 EAGLE TRANSMISSION 10-52
Crank
SHIMANO EM9000 160MM
Chain
SRAM X0 EAGLE TRANSMISSION FLATTOP
Wheels
Rims
DT SWISS HX1700 30MM
Tires
Front: MAXXIS ASSEGAI 2.5 EXO+, Rear: MAXXIS MINION DHR II 2.4 DD
Brakes
Brakes
SRAM CODE RSC
Cockpit
Stem
BURGTEC ENDURO MK3 35X50MM
Handlebar
YETI CARBON 35X800MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
SRAM REVERB AXS 31.6MM SM-MD: 150MM, LG-XL: 170MM
Motor & Battery
Motor
SHIMANO EP801
Battery
SHIMANO 630Wh INTERNAL BATTERY
Charger
SHIMANO E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.348 mm | 1.302 mm | 1.257 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 762.3 mm | 793.7 mm | 816.1 mm | 845.9 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 617 mm | 620 mm | 625 mm | 635 mm |
| Reach | 430 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 560.9 mm | 591.8 mm | 613.4 mm | 641.5 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 98.3 mm | 103.8 mm | 114.9 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1208 mm | 1239 mm | 1262 mm | 1291 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 754 mm | 754 mm | 754 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
160E T3 X0 Transmission belongs to the Yeti E 160e model. There are 11 e-bikes that carry this model name. Take a sneak peek at all Yeti E 160e e-bikes models from 2024, by clicking here.
Model range prices
Yeti 160E C1 2024 is the most economical model, with a starting price of 8500$. Yeti 160E T3 X0 Transmission 2024 on the other hand costs 12000$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 12000$. Doing a quick comparison, we notice that 160E T3 X0 Transmission price is 150.78% higher than the average cost of an Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
160E T3 X0 Transmission components
Fork
The 160E T3 X0 Transmission comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX FACTORY FLOAT X2, with a travel distance of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Yeti 160E T3 X0 Transmission 2024, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Yeti 160E T3 X0 Transmission e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the 160E T3 X0 Transmission. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
