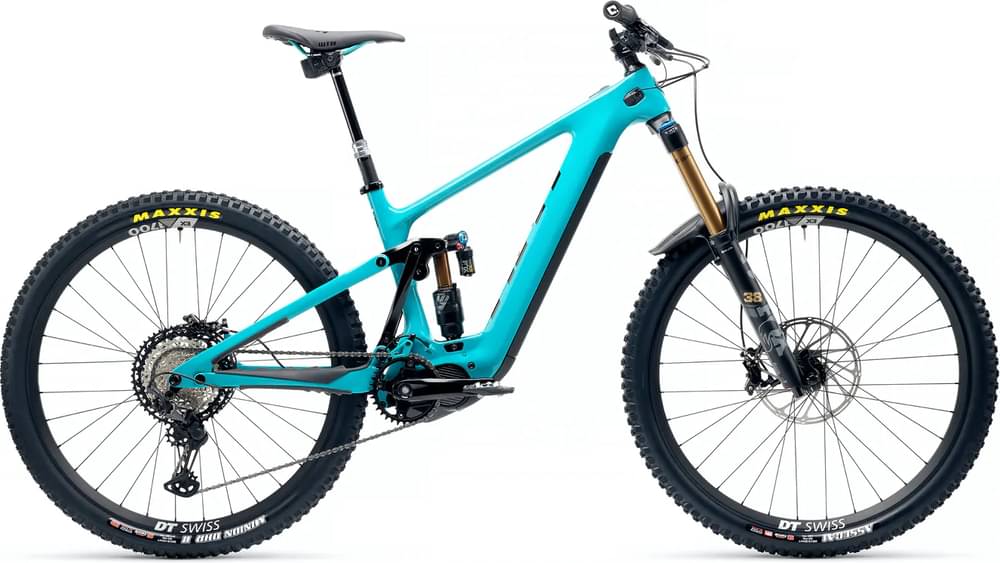

Yeti 160E — T/Series / T1 2022
2022 E-bike
Estimate price |
12,700$
Weight | 22.54 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO 630Wh INTERNAL BATTERY -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX FACTORY 38 GRIP 2/170MM E-Tune
Rear Shock
FOX FACTORY FLOAT X2
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT
Cassette
SHIMANO XT 10-51
Crank
SHIMANO EM900 34T 160MM
Bottom Bracket
N/A
Chain
SHIMANO XT
Wheels
Rims
DT SWISS EX1700 30MM Upgradable
Tires
MAXXIS ASSEGAI 2.5 EXO+
Brakes
Brakes
SRAM CODE RSC
Disk Rotors
SRAM CENTERLINE 220/SRAM CENTERLINE 200
Cockpit
Stem
RACE FACE TURBINE R 35X50MM
Handlebar
YETI CARBON 35X800MM EBIKE
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
SRAM REVERB AXS 31.6MM SM: 125MM, MD: 150MM, LG/XL: 170MM
Motor & Battery
Motor
SHIMANO EP8
Battery
SHIMANO 630Wh INTERNAL BATTERY
Remote
SHIMANO EM800
Charger
SHIMANO E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 762.3 mm | 793.7 mm | 816.1 mm | 845.9 mm |
| Stack | 614 mm | 617 mm | 622 mm | 632 mm |
| Reach | 427 mm | 457 mm | 477 mm | 502 mm |
| Top Tube Length | 557.9 mm | 588.8 mm | 610.4 mm | 638.5 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 98.3 mm | 103.8 mm | 114.9 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1205 mm | 1236 mm | 1259 mm | 1288 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 751 mm | 751 mm | 751 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
160E — T/Series / T1 belongs to the Yeti E 160e model. Yeti released 8 e-bikes variations of this model so far. Take a sneak peek at all Yeti E 160e e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Yeti 160E — C/Series / C1 2022 has a starting price of 10100$. Yeti 160E T1 2022 on the other hand is the most expensive at 13000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 12700$. Comparing the average cost of an Enduro e-bike to this one, you will see that 160E — T/Series / T1 price is 165.41% more expensive.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, 160E — T/Series / T1 has a weight of 22.54 kg (49.69 lbs). In other words, this model is 3.9% lighter than the average Enduro e-bike.
Overview of components
Fork
The 160E — T/Series / T1 comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The 160E — T/Series / T1 has a rear shock with a travel of 160mm. The model FOX FACTORY FLOAT X2 is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the 160E — T/Series / T1 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yeti 160E — T/Series / T1 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Yeti 160E — T/Series / T1 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Yeti model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
