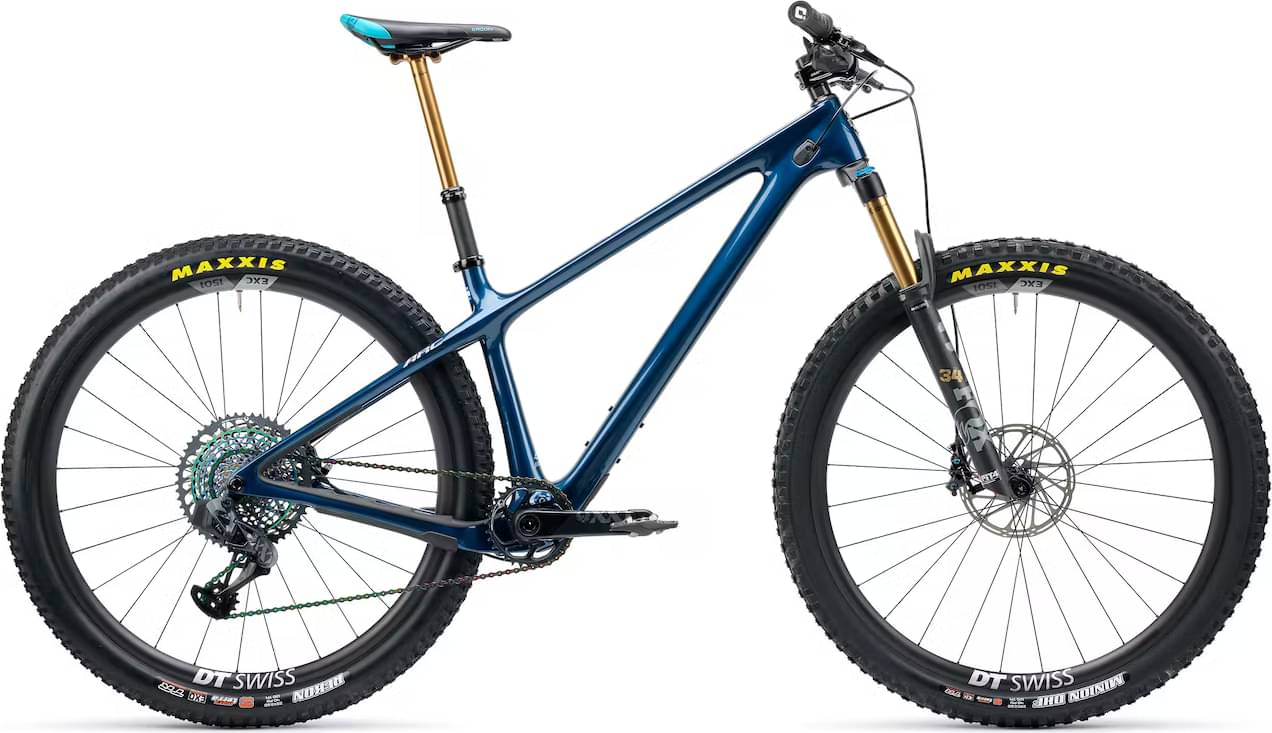

Yeti ARC T4 2023
2023 Mountain
Estimate price |
8,400$
Weight | 11.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle.
Suspension Fork
FOX FACTORY 34 FIT4/130MM
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE AXS
Shift Levers
SRAM EAGLE AXS
Cassette
SRAM XX1 EAGLE 1299 10-52
Crank
SRAM XX1 EAGLE 32T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS XM1700 30MM Upgradable
Tires
Front: MAXXIS MINION DHF 2.6 EXO, Rear: MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM LEVEL ULTIMATE
Cockpit
Stem
BURGTEC ENDURO MK3 CNC 35X50MM
Handlebar
YETI CARBON 35X760MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 110 INTEGRATED
Seat
Saddle
ERGON SM ENDURO SADDLE
Seatpost
FOX TRANSFER FACTORY 31.6MM / SM: 175MM, MD-XL: 200MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.44 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 710.5 mm | 738.5 mm | 761.2 mm | 790.1 mm |
| Stack | 628.7 mm | 635.9 mm | 642.1 mm | 651.3 mm |
| Reach | 417 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 574.4 mm | 601.3 mm | 623 mm | 650.4 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 102.9 mm | 109.6 mm | 119.6 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1140 mm | 1168 mm | 1191 mm | 1220 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 720 mm | 719 mm | 717 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
ARC T4 is part of the Yeti Arc model. Yeti released 26 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Yeti ARC C1 2023 is the cheapest bike model and costs 4200$. Yeti ARC T4 2023 is the most expensive one and costs 8400$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Yeti ARC T4 price was 8400$. In conclusion, this bike price is 204.13% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ARC T4 weighs 11.16 kg (24.6 lbs) and is much lighter than the average. To sum up, it’s 16.31% lighter than the average weight of Trail bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Yeti ARC T4 2023 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on ARC T4 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ARC T4 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Yeti ARC T4 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
